Fire Hose

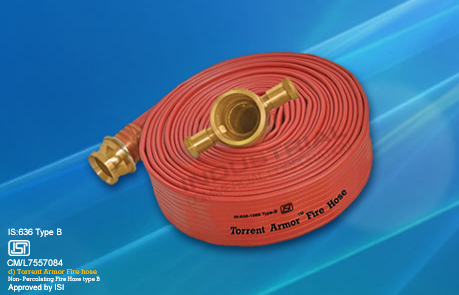

Fire Hose- Type ‘B’ Non Percolating Flexible as per IS:636
Torrent Armor Brand Non Percolating Fire Hose is made of 100% synthetic yarn with high quality Nitrile synthetic rubber extrusion through the weave to give 'UNIFIED CONTRACTION'. It has a smooth inner surface for low friction loss & an external cover with ribs for high abrasion resistance & ease of handling.
| Technical Data | ||||||||
|---|---|---|---|---|---|---|---|---|
| Inner Diameter | 38mm | 50mm | 63mm | 70mm | ||||
| Mass per metre : Gms. (max.) | 320 | 425 | 500 | 600 | ||||
| Coil Diameter in Cms. | 55 | 55 | 55 | 55 | ||||
| PSI | BAR | PSI | BAR | PSI | BAR | PSI | BAR | |
| Burst Pressure | 520 | 36 | 520 | 36 | 520 | 36 | 520 | 36 |
| Proof Pressure | 320 | 22 | 320 | 22 | 320 | 22 | 320 | 22 |
| Kink Pressure | 320 | 22 | 320 | 22 | 320 | 22 | 320 | 22 |
| Working Pressure | 260 | 18 | 260 | 18 | 260 | 18 | 260 | 18 |

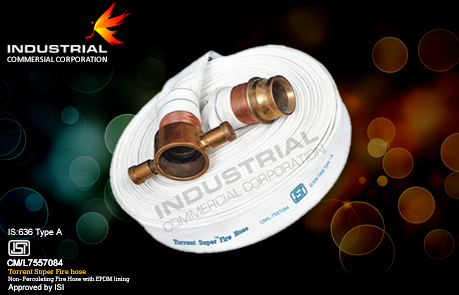

Fire Hose – Type A Non Percolating Flexible marked with IS:636-1988
| Technical Data | ||||||||
|---|---|---|---|---|---|---|---|---|
| Inner Diameter | 38mm | 50mm | 63mm | 70mm | ||||
| Mass per metre : Gms. (max.) | 275 | 350 | 425 | 480 | ||||
| Coil Diametre in Cms. | 45 | 45 | 45 | 45 | ||||
| PSI | BAR | PSI | BAR | PSI | BAR | PSI | BAR | |
| Burst Pressure | 520 | 36 | 520 | 36 | 520 | 36 | 520 | 36 |
| Proof Pressure | 320 | 22 | 320 | 22 | 320 | 22 | 320 | 22 |
| Kink Pressure | 320 | 22 | 320 | 22 | 320 | 22 | 320 | 22 |
| Working Pressure | 260 | 18 | 260 | 18 | 260 | 18 | 260 | 18 |
