Monitors and Nozzles
FOAM INDUCTOR
Technical Specification
• Foam concentrate is drawn through a pick up tube at a preset foam concentrate amount and is added into the water stream.
•
Material :Aluminium Alloy and Gun Metal
•
Conforming Specification :IS 2097
•
Foam concentrate rate adjustable foam 1% to 6%. Flexible foam concentrate suction hose.
•
Suitable for AFFF, protein and AR foam
•
Working pressure 6.4 to 12 bar (93 to 175 psi)

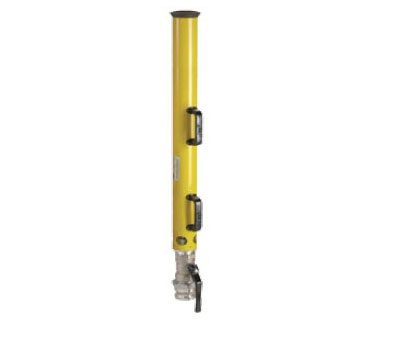

FOAM MAKING BRANCH PIPE - FB 20X
Technical Specification
• Size : 63 mm
•
Material :Aluminium
•
Conforming Specification :IS 2097
•
Flow Capacity : 900 lpm
•
Foam Expansion : 7 to 8 times
•
Suitable for AFFF, protein and AR foam
•
Material Description : FB 20 (X) foam making branch pipe with pick up assly

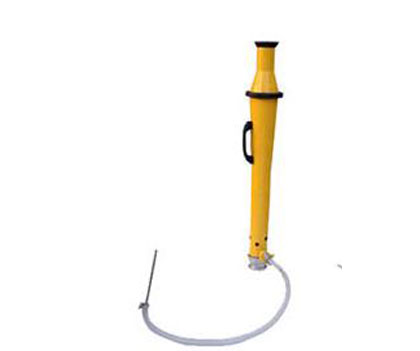

FOAM MAKING BRANCH PIPE - FB 10X
Technical Specification
• Size : 63 mm
•
Material :Aluminium
•
Conforming Specification :IS 2097
•
Flow Capacity : 450 lpm
•
Suitable for AFFF, protein and AR foam
•
Expansion Ratio : 7 - 8
•
Range : 20 to 25m
•
Material Description : FB 10 (X) FOAM MAKING BRANCH PIPEWITH PICK UP ASSLY

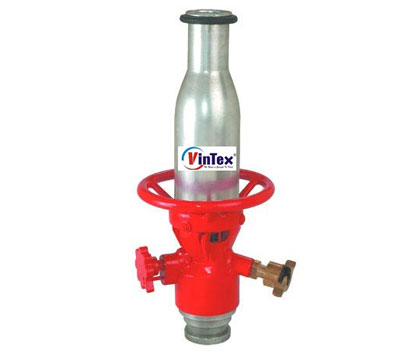

FOAM MAKING BRANCH PIPE – FB 5X (225 lpm)
Technical Specification
• Size : 63 mm
•
Material :Aluminium
•
Conforming Specification :IS 2097
•
Flow Capacity : 225 lpm
•
•
Suitable for AFFF, protein and AR foam
Expansion Ratio : 7 - 8
•
Range : 10 to 22m
•
Material Description : FB 5 (X) FOAM MAKING BRANCH PIPEWITH PICK UP ASSLY

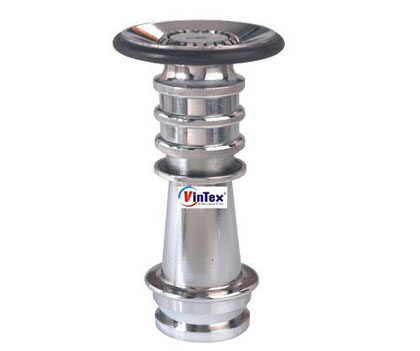

Diffuser / Universal Branch Pipe/Triple Purpose Nozzle
Technical Specification
• Size : 63 mm
•
Material :Stainless Steel IS:3444
•
Conforming Specification :IS 2871
•
Performance Test :
•
Hydrostatic (Body Test) : Tested at 21 Kgf/cm2

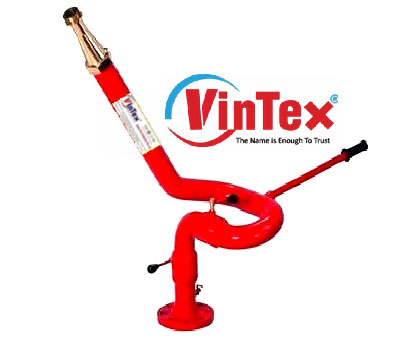

STAND POST TYPE WATER MONITOR-IS:8442
Technical Specification
• Size : 63mm
•
Material of Construction : Seamless Steel Tubes
•
Comforming Specification : IS 8442
•
Performance Test : (A). Hydrostatic Test (Body Test) : Tested at 21 Kgf/cm2
•
(B). Discharge at working pressure 7 Kgf/cm2 : 1750LPM
•
Range: Vertical -21mtr.& Horizontal-53mtr.
•
Rotation :(A). Vertical : 125° min. (80° Upward and 45°downward)
•
(B). Horizontal : 360° in either direction
