Sprinklers

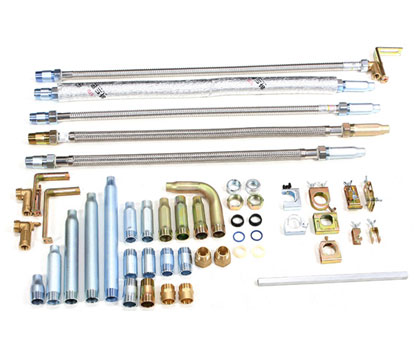

Flexible Sprinkler Drop
Features
• Flexible Sprinkler Connections
•
Complete unit, a corrugated stainless steel flexible with nipple, reducer, Bar and brackets, which are fitted to the ceiling tile support rails to locate and secure the sprinkler in the correct position
•
Sizes: 800MM, 1000MM, 1200MM, 1500MM
•
Max Service Pressure - 12 Bar
•
Material flexible - Stainless Steel
•
Support Brackets, Inlet/Outlet Connectors and Square Bar - Mild steel, zinc plated
•
UL Listed

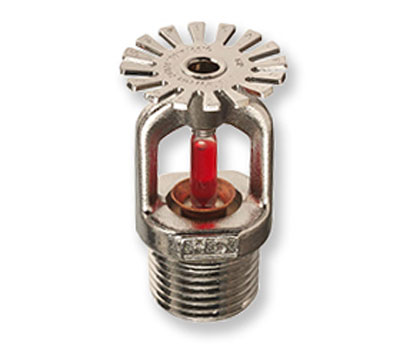

Pendent Sprinklers
Features
• Standard and quick response with standard & extended coverage
•
Pendent mounting
•
Temperature rating : 57°, 68°, 79°& 93°C
•
K-factor 5.6 and 4.2
•
Brass, Chrome or White/ custom colour finish
•
UL Listed

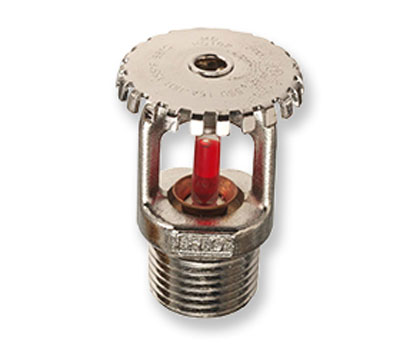

Upright Sprinklers
Features
• Standard and quick response with standard & extended coverage
•
Upright mounting
•
Temperature rating : 57°, 68°, 79°& 93°C
•
K-factor 5.6 and 4.2
•
Brass, Chrome or White/ custom colour finish
•
UL Listed
Horizontal Sidewall Sprinklers
Features
• Model: JC - Bronze construction and Model: JCS Stainless Steel construction
•
Used to segregate the area by creating water curtain
•
Size: 65, 80 or 100 mm flanged end (2.5", 3" or 4")
•
Flow at 6.9 bar (100 psi), 1000 to 3000 lpm (264 to 792 gpm)
•
Produces flat water curtain projecting upwards
Reverse Action Water Spray Nozzle
Features
• Standard response with 5mm glass bulb and quick response with 3mm glass blub
•
Vertical Sidewall mounting
•
Temperature rating : 68°, 57°C
•
K-factor 5.6 US (80 metric)
•
Chrome plated finish
•
UL Listed

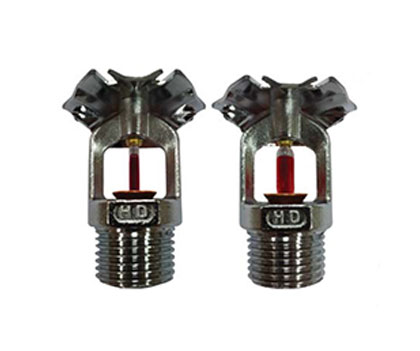

Vertical Sidewall Sprinklers
Features
• Standard response with 5mm glass bulb and quick response with 3mm glass blub
•
Vertical Sidewall mounting
•
Temperature rating : 68°, 57°C
•
K-factor 5.6 US (80 metric)
•
Chrome plated finish
•
UL Listed

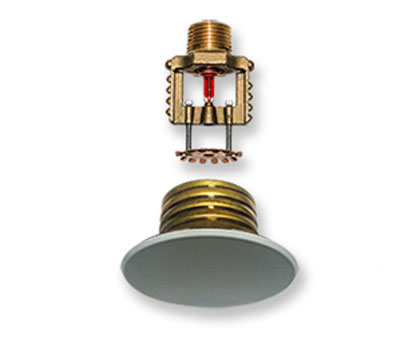

Concealed Sprinklers
Features
• Standard and quick response
•
Brass Sprinkler with White or Chrome finish Cover Plate
•
Temperature rating : 57°C & 68°C for Sprinkler bulb & 57°C for Cover Plate 79°C & 93°C for Spronkler bulb & 68°C (155°F) for Cover Plate
•
K-factor 5.6
•
UL Listed

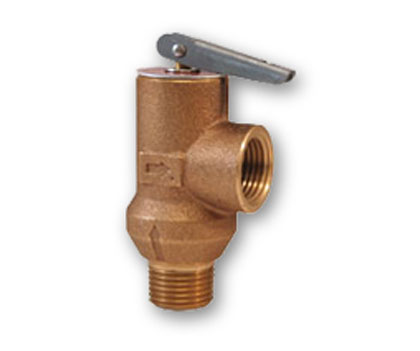

Pressure Relief Valve
Features
• Model 7000 pressure relief valve specifically designed for fire sprinkler systems
Relieve excess system pressure caused by surges or temperature changes and comply with NFPA-13 requirements that stipulate a pressure relief valve be installed on all gridded systems and downstream of all pressure reducing valves
•
Bronze body, stainless steel spring, and flushing handle to remove debris
•
1/2" MIPT inlet and FIPT outlet
•
Rated for installation in 175 PSI systems with other ratings available (165, 185, 195, 205, 225, and 250)
•
UL Listed and FM Approved

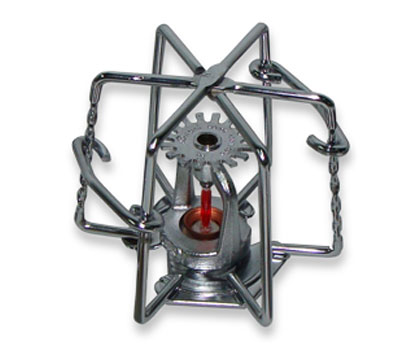

Sprinkler Guard
Features
• Sprinkler guard comes in hard-wired cage design, chrome plated
•
Used for encasing the sprinkler and protecting it from any inadvertent mechanical damages
•
Suitable for pendent and upright mounted sprinklers
