Foundry Shop

ACPL supplies castings to local and domestic customers 400 M. T. per month with consistent growth in intricacy, range, volume and values. Our business philosophy is to create customer end values for continuous, sustained and mutual growth.

Cupola 24" Divide Blast Cupola 2.5 MT per Hour	Core Process Used Shell Core, Cold Box Planed
Induction Furnace of 550kw (One Crucible) Arpa 450 1 Set 20’x20’x8’ Arpa 450 1 Set 20’x25”x9	Mould Process Used Green Sand Arpa 450 2 Sets, Arpa 200 1 Set Box Sizes Vary.
Capacity 7000 TPA	Weight Range: 1Kg to 70Kg (Single Piece)
Grades: C. I. Casting and S. G. Castings	Wall Thickness: 4mm and above, specifications like IS, BS, ASTM, SAE, GG, GOST, FC, etc

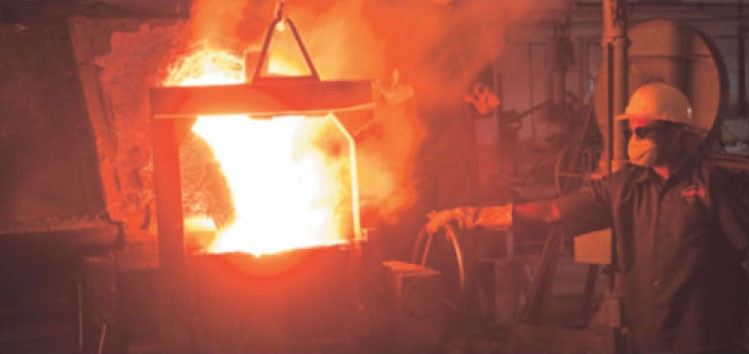

Overhead Pouring
