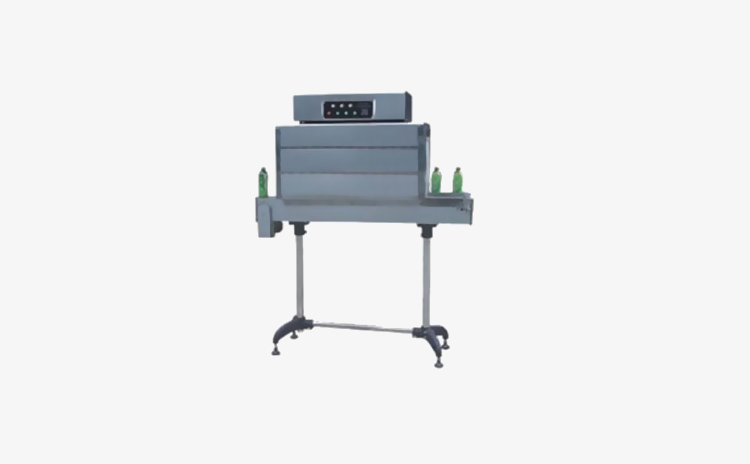

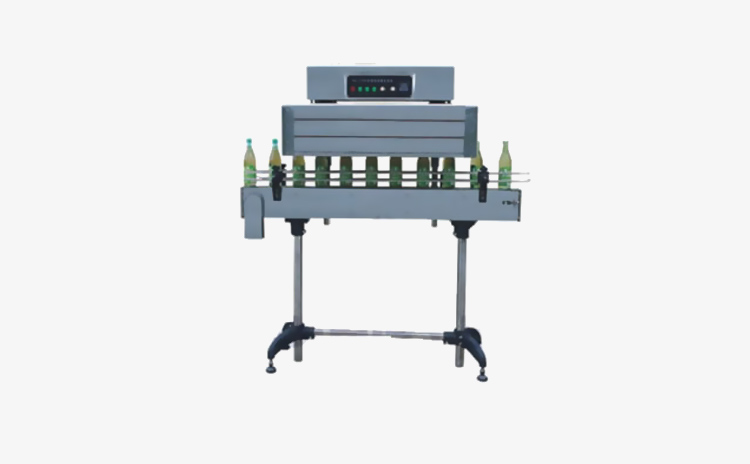

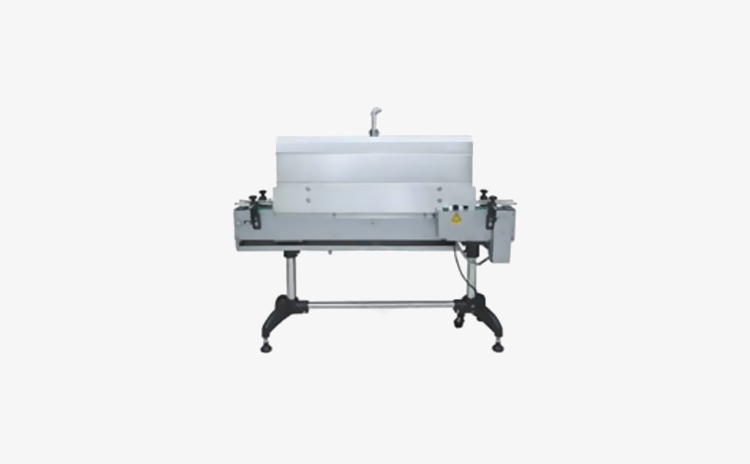

STEAM TUNNEL
We are Leading Importer and Supplier of stream tunnel
| Model | BSS-1538B | BSS-1538C | BSS-1538D | ZBS1032A | ZBS83A |
|---|---|---|---|---|---|
| Voltage | 220V/50-60HZ | 220V/50-60HZ | 220V/50-60HZ | 220V/50-60HZ | 220V/50-60HZ |
| Power | 8KW | 6KW | 6KW | 150W | 150W |
| Tunnel Size(L x W x H) mm | 1000 x 150x380 | 1000 x 150x150 | 800x200x400 | 1000x100x320 | 1350x180x380 |
| Max Packaging Size (mm) | Φ105x350H | Φ105x350H | Φ160x350H | Φ80x290H | Φ120x350H |
| Conveyor Motor | AC90W/220V | AC90W/220V | DC50W/220V | AC120W | AC120W |
| Conveyor Speed | 0-10m/min | ||||
| Max. Loading | 15 Kgs | ||||
| Shrink Film | POF, PVC, PP | ||||
| Weight | 98 kgs | 90 kgs | 66 kgs | 68 kgs | 150 kgs |
| Dimension | 1500x350x1500 | 1500x350x1500 | 1500x400x1620 | 1520x400x1250 | 2400x430x1350 |
