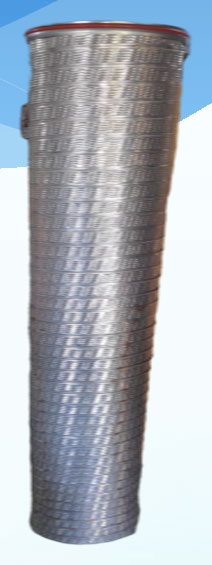

BRITOMATICS (Model No.BEPL/FUEL6.60GF/PP/SS) PP Pleated and Glass fiber Filter Elements are designed for higher filtration area & high throughput. It has 6 inch/152mm large diameter, and single open‐ended structure with an inside to outside flow pattern. Due to its large diameter with big filter area, it requires lesser elements for a given flow rate than standard cartridges diameter, due to lesser elements Filter vessel's size workout smaller, resulting in lower capital Investment and installation costs, as well as reduced operating costs.
Applications :
- Aviation Turbine Fuel
- High Sulphur Diesel Fuel (HSD) etc.
| Nominal lengths (Inch / mm) |
20.69"(525mm), 40.69"(1033mm) & 60.69"(1541mm) |
| Outside Diameter(Inch/mm) |
6 inch(152mm) |
| Micron Ratings |
1, 2, 4.5, 6, 10, 20 ,40, 70 & 90 |
Filtration Efficiency
- >=10 Micron particle removal efficiency with 10 micron elements: 99.98%
- 5 to 10 micron particle removal efficiency with 10 micron elements: 95.00%
- 2 to 5 micron particle removal efficiency with 10 micron elements: 90.00%
|
| Flow Rate
|
Filter Media
- Glass Fiber (GF)
- Polypropylene(PP)
|
Max. Differential Pressure
- 55 psid at 250°F (GF)
- 55 psid at 180°F (PP)
|
| End Caps
|
'O' Ring
|
Inner & Outer Core Material
|
| Clean Pressure Drop
|
Max Pressure Drop
|
Maximum Temperature
|
