Coating For LED Lighting (Acrylcoat - LGT-SPL-60)

Conins Acrylcoat is a high quality flexible, transparent, ECO FRIENDLY Acrylic Conformal coating for LED Lighting. Conins Acrylcoat is approved by C DOT and it conforms to MIL Standard: MIL – I - 46058C Type AR. Conins Acrylcoat ensures protection for LED Lighting and components against moisture, Oxidation, fungus etc., in humid conditions. It is easy to apply and fast drying and has good flexibility. Servicing is easy as the coating is readily SOLDERABLE. Acrylcoat has high dielectric strength ad it provides protection against high voltage arcing and corona shorts.

SPECIAL FEATURES :

  • 100% Ozone Friendly
  • Economical in use.
  • Good Dielectric strength
  • Excellent adhesion to all surfaces
  • Easily SOLDERABLE , Servicing is easy.
  • Prevents fungus growth
  • Protects component leads from corrosion
  • Contains UV Tracer for easy inspection
  • Light Intensity will remain same after coating

Applications :

PROPERTIES :

PRODUCT CODE ACRYLCOAT - LGT - SPL- 60
Appearance Clear, Transparant, Smooth & Glossy
Drying Time Touch Dry:< 20 mts. in air. Curing @ 60o C for 30 mts.recommended.
Cure Time 24 hrs. Optimum Properties: 7 days..
Working Temp. 50 C to 1200 C
Di - electric strength 25 kV/mm.
CTI Value (Comparative Tracking Index) 600
Viscosity of Lacquer

60 secs. Zahn cup G1 @ 30 0 C
Flammability Self extinguishing (coating) Liquid : flammable
Insulation Resistance 2.5 x 10 12 Ohm/cm
Dielectric Constant 2.5
Dissipation factor 0.01
Flash point < 0 deg.C.

Applications :

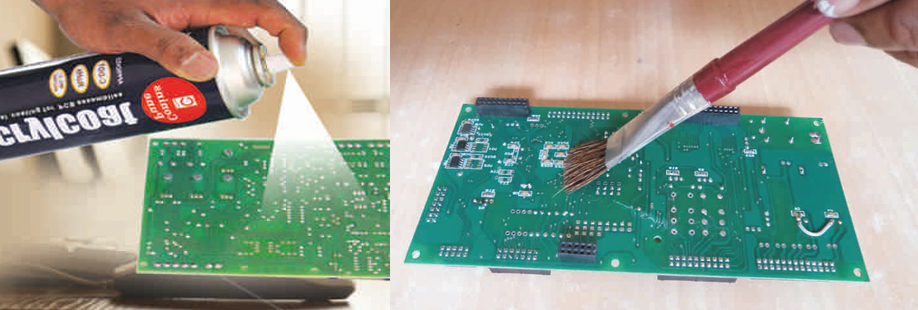

Clean the surface thoroughly before application. Pre- drying in a clean oven is recommended. ACRYLCOAT LACQUER can be applied by Brushing, Dipping or by Spraying. This can be used in a Dip Coating Machine or can be applied by a dispenser.


  • Removal : The coating can be removed using Elvins Thinner AR.
  • Storage : Store in a cool dry place below 40o C. Keep away from naked flame or flammable material. The contents are highly inflammable. Destroy the container after use.
  • Precautions : Acrylcoat is a flammable material. Contact with skin or eyes and inhalation should be avoided. In case of contact: Skin: wash the affected areas with soap and plenty of water. Eyes: Wash with plenty of water. If irritation persists, get medical aid immediately. Keep away from open flames and Flammable material. Use in an adequately ventilated area only. Refer to our MSDS before using the product.
  • Shelf life : 12months in original sealed containers.
  • Packing : 1 litre x 8 nos, 5 litres.x 4 nos, and 25 litre drum containers. APPROVED BY C – DOT. CONFORMS TO MIL 46058C Type AR.
