Dencil Pumps and Systems Pvt Ltd

WELCOME To Dencil Pumps and Systems Pvt Ltd

Triplex pumps are essentially plunger pump with 3 cylinder and 3 heads. They are essentially used for pumping high quantity / low quantity fluid at high pressures. Flow of liquid will be continuous due to the operation of 3 plunger in a cyclical manner. The dry section are made with specifically chosen material and manufacture to give the best performance for a long period of time.

WELCOME To Dencil Pumps and Systems Pvt Ltd

Dencil Pumps & Systems Pvt. Ltd are specialists in the manufacture of Agitators and Industrial Mixers manufactured out of various grades of steel such as Carbon Steel, Stainless Steel and also Special Grades of Steel and Alloys such as 904L, Titanium, Hast alloy and Duplex Steel. Agitators are also given specialized coatings and lining consisting of Rubber Lining, Teflon Lining, PP Lining and FRP Lining.

Our Products - Plunger Pumps

next back

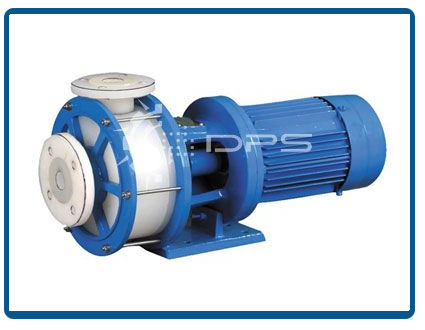

It is used for highly corrosive chemicals in process industries replaci ng highly expensive materials like Hastelloy, Alloy - 20, SS 316, Monel etc. Liquid contact parts are made of moulded polypropylene. Standard dimension pumps are provided with Blue Asbestos Gland Packing or Internal or External Mechanical Seal. Impeller is moulded with Hastelloy, Alloy - 20, SS 316 inserts. One piece sturdy solid moulded volute casing is designed to avoid breakage of polypropylene flanges at suction and discharge ends. Semi open impeller with metallic insert ensures smooth running. Loosening of impeller is prevented by dome lock nut made of Hastelloy, Alloy - 20, SS 316 according to liquid to be handled. Shaft is made of SS 316 and sleeves are made of Hastelloy B or C, ceramic Alloy - 20, Monel etc. according to liquid to be handled. Wide ranges of models are available to cope up any requirement of head and capacity from heavy duty couple pump to small, monoblock laboratory pumps.

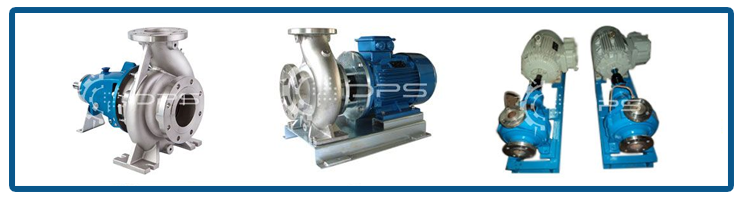

Dencil Offers : Vertical Centrifugal PumpsHorizontal Centrifugal PumpsMonoblock Centrifugal Pumps.

Vertical Submersible Centrifugal Pumps

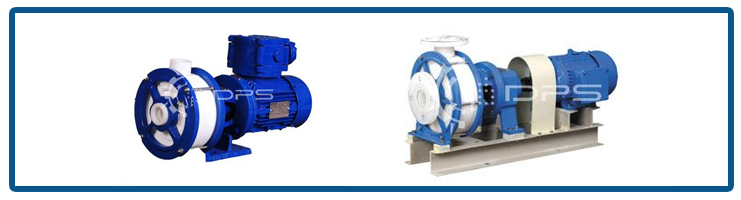

Non Metalic

VERTICAL CENTRIFUGAL PUMPS are suspended Vertical line shaft pumps with base plate . They are used to pump clean or dirty fluid contain suspended abrasive materials . They are specially useful for many industrial processes , supply drainage etc. Radial bearing are normally lubricated by the pumped liquid, if the liquid is completely free form suspended abrasive particles.

In case of special liquids or high operating pressures, either a gland packing or a mechanical seal can be assembled on the shaft. Seals – in these cases; are flushed with the liquids handled. Forced lubrication is designed for radial bearing. If liquid pump is slightly abrasive, radial bearing can be lubricated with clear fluid from an external source.

APPLICATIONS CHEMCIAL INDUSTRIES, REFINIERIES, SLURRIES OR CLEAR LIQUID, CORROSIVE LIQUID, PETRO CHEMCIALS, FERTILIZERS, INFLAMMABLE & TOXIC LIQUID, GENERAL INDUSTRIES

DENCIL PUMPS & SYSTEMS PVT LTD are engaged in the activity of manufacturing Non metallic & Metallic pumps chemical process pumps. A Team of Competent engineers with vast expertise in centrifugal pumps technology. DENCIL PUMPS is specialize in application engineering of non – metallic chemical process pumps used for various Chemical industries . These pumps are made up of materials like polypropylene, Polyvinylidene Fluroide ( PVDF ). These are Corrosion resistant pumps and mostly used in chemical and process industries where due to higher delivery heads, the effects of erosion owing to the higher liquid velocities, are multiplied. These products are relied upon by a wide spectra of industrial units for toughest pumping applications.

TECHNICAL SPECIFICATION
Capacity	30000 LPH
Pressure	UPTO 30 MTRS
Material of Construction	PP/PVC/ PVDF / TEFLON/ SS 304 / SS 316 ALLOY 20, HASTEALLOY, TITANIUM ETC

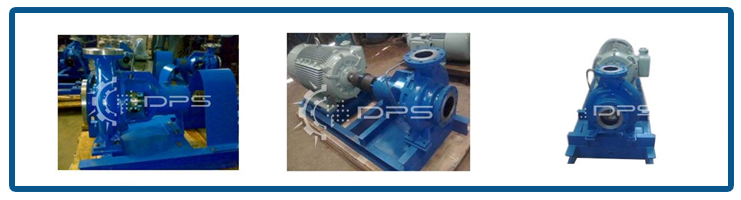

Metalic Pumps

Refine Search :

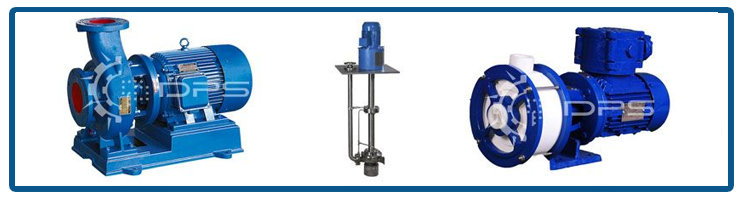

Vertical Centrifugal Pumps, Horizontal Centrifugal Pumps, Monoblock Centrifugal Pumps
