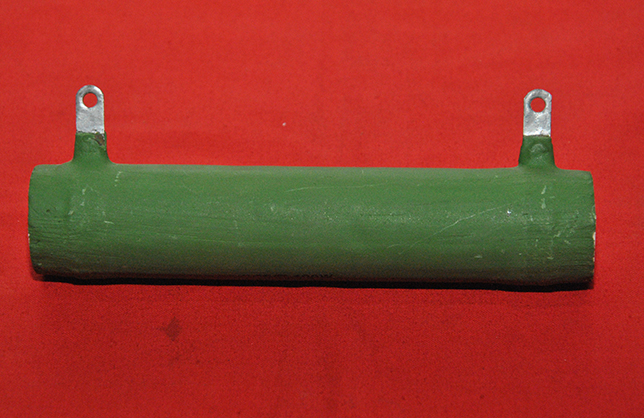

Wire Wound Resistor

Specification

Resistance wire                 Nikrome or constandan or eureka
Standard Tolerance             5%
Dielectric Strength             1000 V RMS
Temperature Coefficient       20 PPM to 130 PPm per C
Power Derating                  250 C full Load
Stability                             Less than 3% after 84 days Load test
Core                                  High purity porclean / stealite
Tags                                  Mild steel / brass with tin plated
Standards                          Meets functional requirements of Mill-R 26/LCSO/ISI
