Agricultural Implements
Our Company is Specialized in Offering Optimum Quality Tractor Driven Agricultural Implements to Meet and Suit the Need of Farming Segment with Twin Objective of Enhancing the Productivity and Reducing the Cost of Production. We are Pleased to State that We are the Leading Agricultural Implements Manufacturer in Entire Central India in Indian Sub Continent . Our Manufactured Agriculture Implements are Being Supplied to Various central -state Government Agriculture Marketing Federations & institution of India, Agriculture Promotion Corporation, & Private Customers from Agriculture Business Segment. Our Products Have earned Named Due to Its Quality & Is Very Well Accepted in India and in Overseas International Market.
We Manufacture and Produce Wide Range of Superior Quality Agriculture Implements Suitable for Low Hp to High Hp Tractors such as :-
- MB Plough 2 & 3 Bottom
- Reversible Plough Single & Double Furrow
- Mounted Disc Plough
- Mounted Disc Harrow
- Rotavator
- Cultivator – Rigid & Spring Loaded
- Seed Drill
- Thresher Tractor Driven
- Peanut Planter
- Peanut Drigger
- Sugarcane Planter
These Agro Implements are Extensively Used for Effective Farming Practices in Different Parts of the World. Our Agricultural Machinery Implements are Made from Best Available Raw Materials and Therefore They are Highly Durable Even in the Rustic Atmosphere of Farms and Fields.

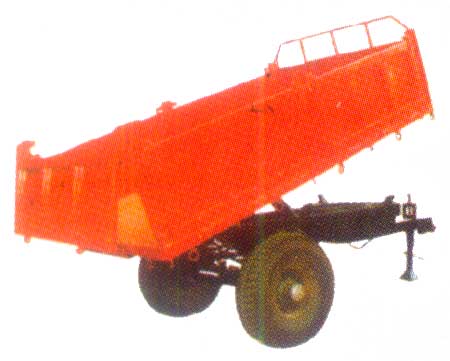

We offer Tractor Trailers for effectively use in diversified areas such as Agriculture, construction, solid waste management & transportation etc. Our manufactured products are known for their durability, high strength best performance and and cost effectiveness.
We have specifically designed knockdown trailers for export or long distance dispatches.
The tractor trailers available with us are :-
- Tipping & Non Tipping
- Two Wheel & Four Wheel
- Load Carrying Capacity From 3 MT to 12 MT
The standard sizes of Trailers are 10’ x 6 ‘x 2 ‘ & 12’ x 6’ x 2’
| Sr. No |
Models |
Capacity |
Discription |
| 1 |
EMW-2WT |
6MT |
Tractor trailer size 10'x6'x2', type size 9x20-14 ply two wheel, tipping |
| 2 |
EMW-2WT |
6MT |
Tractor trailer size 10'x6'x2', type size 9x20-14 ply two wheel, regular (Non-tipping) |
| 3 |
EMW-2WT |
6MT |
Tractor trailer size 12'x6'x2', type size 9x20-14 ply two wheel, tipping |
| 4 |
EMW-2WT |
6MT |
Tractor trailer size 12'x6'x2', type size 9x20-14 ply two wheel, regular (Non-tipping) |
| 5 |
EMW-4WT |
7.4MT |
Tractor trailer size 12'x6'x2', type size 9x16-14 ply 4 wheel, tipping |
| 6 |
EMW-4WT |
8MT |
Tractor trailer size 15'x6'x2', type size 9x16-14 ply 4 wheel, tipping |
10 MBL - 2/12,
10 MBL - 2/10

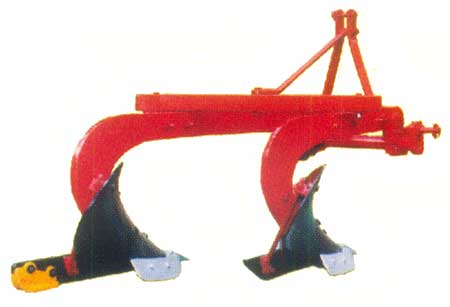

MB PLOUGH
2 BOTTOM
H.D. & L.D.
|
H.D. |
L.D. |
| Overall Length |
1450mm. |
1400 |
| Overall Width |
1190mm. |
960 |
| Overall Height |
1150mm. |
1000 |
| Cut of Width |
620mm. |
250 |
| Depth Of Penetration |
150 to 400mm. |
100 to 300 |
| Total Weight in Kg. |
250kg |
220kg |
| Overall Length |
2060mm. |
| Overall Width |
1270mm. |
| Overall Height |
1170mm. |
| Cut of Width |
860 to 950mm. |
| Depth of Penetration |
200mm. to 250mm. |
| Total Weight in Kg. |
375Kg. |
RPO- 2/32 HD &
PRO 2/28 LD

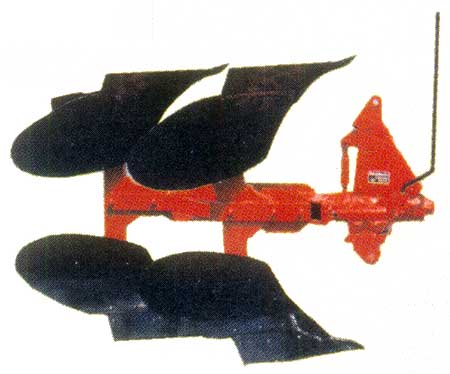

REVERSIBLE PLOUGH
2 BOTTOM HD & LD
|
H.D. |
L.D. |
| Overall Length |
1800mm. |
1800 |
| Overall Width |
930mm. |
850 |
| Overall Height |
1220mm. |
1120 |
| Cut of Width |
700 - 760mm. |
530 - 700 |
| Depth Of Penetration |
250 - 300mm. |
200 - 300 |
| Total Weight in Kg. |
400kg. |
370kg. |

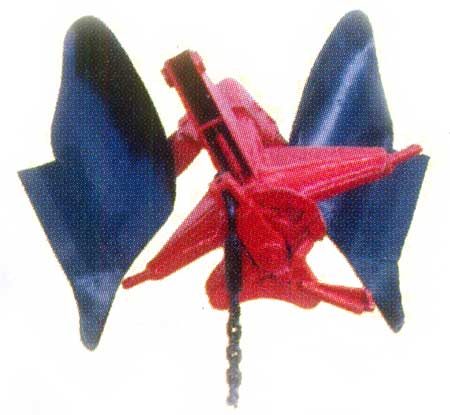

RPM 1/18
REVERSIBLE PLOUGH
SINGLE BOTTOM |
| Overall Length |
1300 |
| Overall Width |
1420 |
| Overall Height |
950mm. |
| Cut of Width |
380 to 460mm. |
| Depth Of Penetration |
380 to 460mm. |
| Total Weight in Kg. |
250kg. |

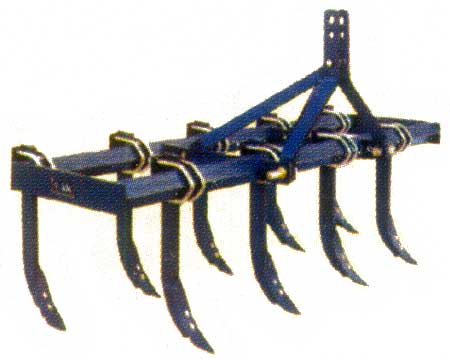

CULTIVATORY
II TYPE RIGID
TYPE (30MM) |
| Overall Length |
950 |
| Overall Width |
2380 |
| Overall Height |
1150mm. |
| Cut of Width |
325mm. |
|
2 DL |
3 DL |
| Overall Length |
1600 mm |
1600mm |
| Overall Width |
1321 mm |
1321 mm |
| Overall Height |
1270 mm |
1270 mm |
| No. Of Botttom |
Two |
Three |
| Dia Of Disc |
657 mm (26") |
657 mm (26") |
| Unit Of Cut |
252 mm (10") |
252 mm (10") |
| Total Weight |
331 Kgs |
385 Kgs |

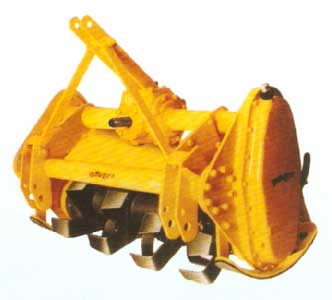

| Various Model of Eros Rotavator Available for 25 to 75 H.P. Tractor |
| Model of Rotavotar |
Tractor H.P. |
Working Width (cm) |
Working Width (inch) |
J Type |
L Type |
Tyne Type |
| ER075 |
> 25 |
84 |
33 |
18 |
24 |
18 |
| ER100 |
> 35 |
104 |
41 |
24 |
30 |
24 |
| ER125 |
> 45 |
124 |
49 |
30 |
36 |
30 |
| ER150 |
> 55 |
144 |
57 |
36 |
42 |
36 |
| ER175 |
> 70 |
164 |
65 |
42 |
48 |
42 |
| ER200 |
> 70 |
184 |
73 |
48 |
- |
48 |

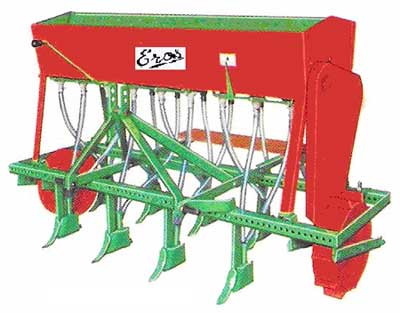

Specifications:
- These are the multi purpose machines used for various seeds.
- These are available in front, side & rear wheel.
Models also with depth controlling wheels.
- These are available in front, side & rear wheel.
Models also with depth controlling wheels.
- Avaliable in 9, 11, 13 & 15, row spacing is also variable.
|

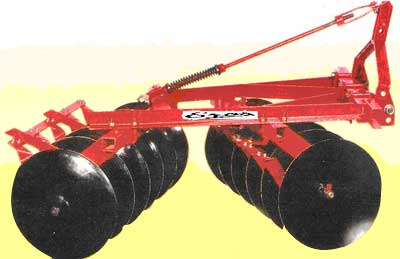

12 DH |
14 DH |
| Overall Length |
2000 MM |
2045 MM |
| Overall Width |
1480 MM |
1753 MM |
| Overall Height |
1235 MM |
1314 MM |
| PLOUGH CAP |
1420 MM |
1575 MM |
| NO. OF DISC |
TWELVE |
FORTEEN |
| DIA OF DISC |
556 MM ( 22??? ) |
556 MM ( 22??? ) |
| TOTAL WEIGHT |
375 KGS |
400 KGS |
We are offering an high-end quality of Tractor Drawn to our clients. This Tractor Drawn Scrapper is designed and fabricated by our experienced professionals using supreme class raw materials and cutting edge technology at par with international standards. These are available at most affordable prices.
