We are ranked amongst the foremost firms, engaged in trading and supplying a wide range of Fire Hose Reel ISI : 884 that is procured from certified vendors of the market. Our offered hose reel are available in different sizes and design. These hose reel are manufactured using the quality assured raw material at vendors' end.
Apart from this, these hose reel are checked thoroughly by quality controllers against various industry defined parameters to ensure its optimum performance.
| Fire Hose Reels ISI : 884 | |||
| Features | Type : Swinging 180 Wall Mounting Size : Inlet 20mm (3/4" BSP Thread Size) Confirming Specification : IS 884 |
||
| Material of Construction | • Hub Sides & Wall Bracket - MS Sheet of IS:513 • Swivel Joint - LTB-2 of IS:318 • Pipe with Fitting - Steel of IS:1239 Part I • Branch Pipe with Nozzle - IS:8090 • Hose Reel Tubing - Thermoplastic Hose confirming to IS : 12585 |
||
| Performance Test | Hydrostatic Test : Test at 21 Kgf/cm2 Rang & Water Flow rate test at 7 Kgf . cm2 (A) Discharge : 24LPM (B) Range (Jet Length) : 6mtr(min) |
||

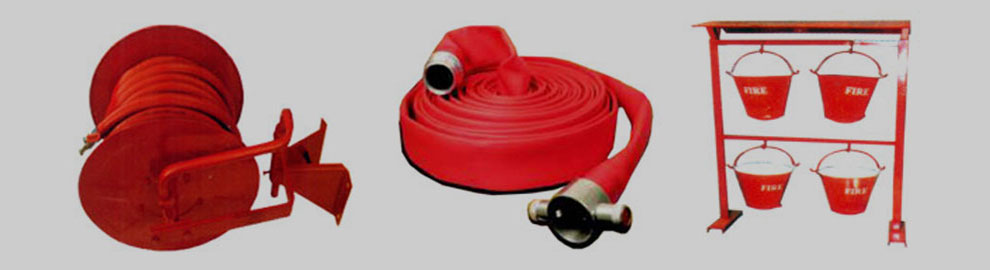

Being a well established organization, we bring forth an excellent quality assortment of Fire Hose Pipe. The provided hose is manufactured under the strict supervision of our adept professionals using high grade raw material and latest techniques.
We provide this hose in a variety of thicknesses, fire ratings, diameters and many other specifications as per the requirements of our valuable clients. In addition, clients can avail this hose from us at reasonable prices.
| Fire Hose | ||
| Material | Rubber Reinforced Lined (RRL) Hoses | |
| Size | 63 mm x 15 Mtr. (Standard) | |
| Length | As Per Clients requirements | |
| Couplings | Gun Metal (LTB-2) / S.S. (Wound at the end of Hose Pipe) | |
| Binding Wire | Copper or G.I. Wire | |
| Specification | IS : 636 | |
| Hydraulic Pressure | Tested at 10.24 KG / cm2 | |
| Bursting Pressure | 35.7 kg / cm2 | |
Being one of the reputed organizations in the market, we are engaged in manufacturing and supplying optimum quality Fire Bucket. Our offered bucket is manufactured using supreme quality raw material in line with set industry standards.
The provided bucket is widely known among the clients for its flawless finish, corrosion resistance and many other features. Moreover, the range of this bucket is tested on different parameters to ensure its quality standards.
| Fire Bucket | ||
| BIS Specification | IS 2546 | |
| Capacity | 10 Litres | |
| Body Material | Galvanised Mild Steel Sheet | |
| Body Thickness | 1MM | |
| Overall Height | 346MM, Minimum | |
| DIA. at Top | 260 MM | |
| DIA. at the Bottom | 170 MM, Minimum | |
| DIA. of Handle | 10 MM | |
| Leakage Test | Tested for Water Leakage and Water Tightness | |

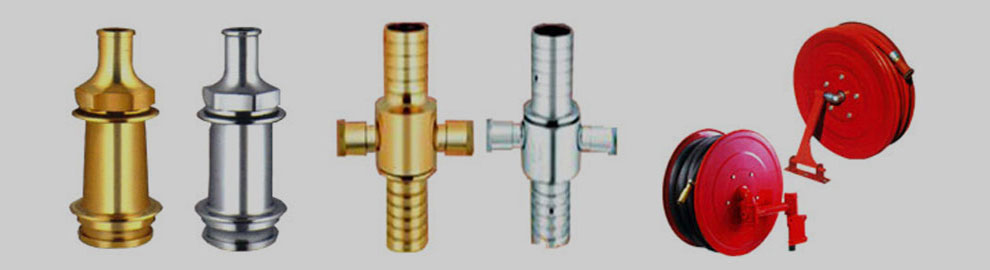

We are the recognized trader and supplier of high quality Branch Pipe Extinguisher. The provided pipe is extensively used in fire fighting operations or equipments. Our offered pipe is manufactured at vendors' end using the high grade raw material and modern technology.
This pipe is tested on different quality parameters by our experts before its final delivery at clients' end. We also provide this pipe in different specifications to fulfill several demands of the clients.
| Branch Pipe Extinguisher | ||||
| Type | Gun Metal | Stainless Steel | ||
| BIS Specification | IS 903 | IS 903 | ||
| Material of Construction | ||||
| Body | LTB2 IS 318 | S.S. IS 3444 | ||
| Rubber Washers | IS 937 (Type A) | IS 937 (Type A) | ||
| Performance | ||||
| Hydraulic Test of Body | 21 Kg/Cm2 | 21 Kg/Cm2 | ||
|
||||
We are manufacturer and supplier Fire Hose Coupling. These couplings are manufactured using the quality assured raw material under the supervision of our experienced professionals.
Features:
| Couplings | ||||
| Type | Gun Metal | Stainless Steel | ||
| BIS Specification | IS 903 | IS 903 | ||
| Material of Construction | ||||
| Gun Metal Body Seat | LTB2 IS 318 | S.S. IS 3444 | ||
| Rubber Washers | IS 937 (Type A) | IS 937 (Type A) | ||
| Performance | ||||
| Hydraulic Test of Body | 21 Kg/Cm2 | 21 Kg/Cm2 | ||
|
||||

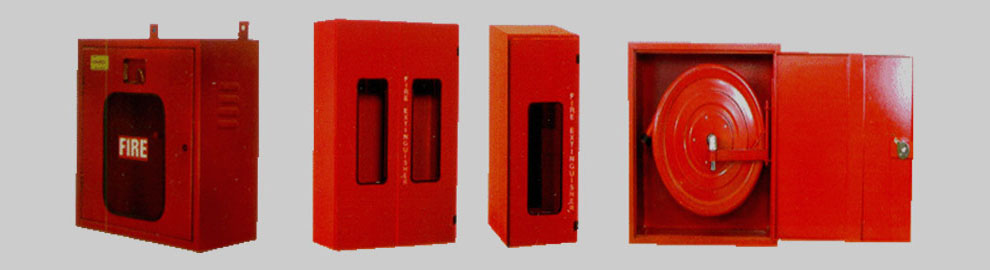

From last many years, we are serving in the industry as one of the leading manufacturers of Fire Hose Cabinet. Our array is developed as per the predefined guidelines of ISO 9001 : 2008 standards. Highly functional, our cabinets are used to place the fire fighting equipments safely. Robustly structured our cabinets are also available in customized specifications. We offer our Fire Hose Cabinet at highly economical prices.
Features :
Size :
Material :
Type :
The integrated variety of Fire Hose Reel, fabricated by us is obtainable in diverse representations, capability and thickness. The products are highly suitable for bringing under control a variety of emergency conditions. Our range comes in a variety of thicknesses, diameters, fire rating as per the conditions of clients.
Features
| Fire Hose Reels CE EN 671-1 | |||
| Side Plates | Made of high quality mild steel, powder coated in Red color | ||
| Side Plates O.D. (Dimeter) | 560 mm | ||
| Distance Between Side Plates | 6 Inchase | ||
| Water Ways | Made from non-ferrous metal (Aluminium Alloy) for making it corrosion-free, duly powder coated. | ||
| Hose Reel Drum | Confirming to EN 671-1 : 2001 | ||
| Fire Hose | High quality semi-rigid ISI marked (Type-1 & Type-2) / CE marked / EN approved, flame resistant, kink and abrasion resistant, fluted finish MITRAS Thermoplastic Hose with 2 years Guarantee. | ||
| Hose Colours Available | Red / Black / Yellow | ||
| Hose Nominal Bore (ID) | 19mm / 20mm / 25 mm, as per your requirement. | ||
| Hose Length | 20 / 25 / 30 / 36 / 40 mtrs, as per requirement. | ||
| Shut-off Nozzle | Rotary operated, leak proof, CE marked / EN approved, hydraulically crimped with corrosion - free Stainless Steel fitting, shutt-off nozzle with shut, spray & jet fuction, made of super-tough Polymer Alloy in red colour. | ||
| Swivel | 180 double swivel. | ||
| Working Pressure | 1.2 Mpa (12 Bar) | ||
| Note : Due to technical upgradation, design & specification may be changed without prior notice. | |||
We have gained years of excellence in trading and supplying Landing Valves Single and Double. This landing valve is used to be installed in different fire hydrant system. This valve is manufactured using the quality assured raw material and advanced technology at vendors' end.
The offered valve is widely appreciated for its compact design, rust proof nature and durable finish standards. Further, our valuable clients can avail this valve from us within a promised time frame.
| Landing Valves Single and Double | ||||
| Type | Gun Metal | Stainless Steel | ||
| BIS Specification | IS 5290 | IS 5290 | ||
| Material of Construction | ||||
| Body Seat | LTB2 IS 318 | S.S. IS 3444 | ||
| Working Parts Outlet | LTB2 IS 318 | S.S. IS 3444 | ||
| Rubber Washers | IS 937 (Type A) | IS 937 (Type A) | ||
| Spring | IS 7608 | IS 6528 | ||
| Cast Iron Wheel | IS 210 | IS 210 | ||
| Gland Packing Asbestos Thread | IS 4687 (Type 3) | IS 4687 (Type 3) | ||
| Performance | ||||
| Hydraulic Test of Body | 21 Kg/Cm2 | 21 Kg/Cm2 | ||
| Hydraulic Test of Seat | 14 Kg/Cm2 | 14 Kg/Cm2 | ||
| Flow Rate at 7 kg/Cm2 | 900 LPM | 900 LPM | ||
|
||||
| Type | Gun Metal | Stainless Steel | ||
| BIS Specification | IS 5290 | IS 5290 | ||
| Material of Construction | ||||
| Body Seat | LTB2 IS 318 | S.S. IS 3444 | ||
| Working Parts Outlet | LTB2 IS 318 | S.S. IS 3444 | ||
| Rubber Washers | IS 937 (Type A) | IS 937 (Type A) | ||
| Spring | IS 7608 | IS 6528 | ||
| Cast Iron Wheel | IS 210 | IS 210 | ||
| Gland Packing Asbestos Thread | IS 4687 (Type 3) | IS 4687 (Type 3) | ||
| Performance | ||||
| Hydraulic Test of Body | 21 Kg/Cm2 | 21 Kg/Cm2 | ||
| Hydraulic Test of Seat | 14 Kg/Cm2 | 14 Kg/Cm2 | ||
| Flow Rate at 7 kg/Cm2 | 1800 LPM | 1800 LPM | ||
|
||||
