PV Micro Grid

'Solar PV DC-Micro Grid System' is a uniquely designed project to meet the electricity needs of a disaster hit area and more importantly 'Empower' them with connectivity to the outer world through inclusive Television, Radio Transistor and optionally internet as per requirements. It also offers possibility to further add household gadgets like refrigerator, deep freezer, etc. using the same system intelligent controller while expanding the SPV panel and the battery capacity. Therefore it is a sustainable, expandable and a complete SPV based quality solution, offered as a complete SPV DC Micro grid kit for a disaster hit area households.

System Objectives

• To provide access to electricity in a disaster hit area on a sustainable and equitable basis by deploying proven renewable state of art Solar technology and solutions.
• The system is designed on the DC micro-grid principle; allowing for the micro-grid to accommodate the growth of a full range of DC appliances. It has a full interface with data managed recording features for universal control. The system can operate AC appliance via individual specialized inverters.

The Individual Kit

• Solar Panel 75 watts to 180 Watts
• Battery 50 Ah to 150 Ah, 12 Volts
• 4 LED bulbs, 1 Fan, 1 Charging point along with junction box, cabling etc.

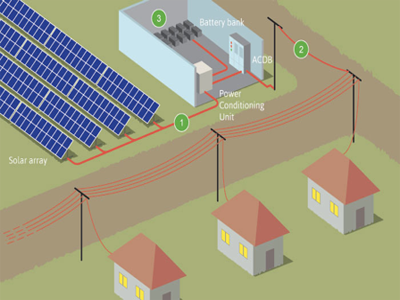

• The Cluster Solution (Village level) consists of
• Elevated Structure for Solar Panels, Solar Panels 5 KW to 15KW
• Battery back up distribution system
• 4 LED bulbs, 1 Fan, 1 Charging point for each house
• Optional – Street Lighting

The Individual Home DC micro Grid kit

Basic Solar Kit	Plus Solar Kit	Pro Solar Kit	DC/Grid Solar kit
Solar Panel 75 watts to 125 Watts	Solar Panel 100 watts to 150 Watts	Solar Panel 250 watts to 300 Watts	All models can be provided with grid and battery option
Battery 75 Ah to 100 Ah, 12 Volts	Battery 75 Ah to 100 Ah, 12 Volts	Battery 200 Ah to 300 Ah, 12 Volts
4 LED bulbs, 1 Fan, 1 USB charging point along with junction box, fixtures and cabling.	4 LED bulbs, 1 Fan, 1 USB charging point along with junction box, fixtures and cabling.	6 LED bulbs, 1 Fan, 1 USB charging point along with junction box, fixtures and cabling.
	TV and Radio	TV and Radio, Refrigerator or Freezer combo
