DVR Systems

  • 1.

    4ch DVR Systems

    • 4 channels entry level simple 1U standalone DVR
    • Up to 4 cameras with SXGA(1280×1024) display
    • H.264 video compression algorithm ideal
    • Each channel at CIF or 6/7fps at D1 recording
    • Dual encoding streams supported
    • ITV(BNC)/VGA synchronous video output
    • Live, recording, playback, backup & remote access
    • 4 channel simultaneous playback
    • Smart video detection: MD, camera blank, video loss
    • Easy backup: USB devices, network download
    • Supports 1 SATA HDD, 2 USB2.0
    • Built-in web server, multi-DVR client, MSS & CMS”
  • 2.

    8ch DVR Systems

    • Full channel 2CIF Realtime Recording
    • H.264 Dual-Stream Video Compression
    • Pentaplex operation: Preview, recording, playback, backup, network
    • HDMI / VGA / TV Simultaneous Video Output
    • Support 1 SATA HDD, 2 USB2.0, 1 RS485
    • Support PTZ preset and auto cruise, a total of 128 preset points and 8 cruise channel
    • Multi DVR Client
    • Mobile Software: MSS
  • 3.

    16ch DVR Systems

    • Up to 16 Cameras with 1080P Display
    • H.264 Dual-Stream Video Compression
    • Full channel 2CIF Realtime Recording
    • HDMI / VGA / TV Simultaneous Video Output
    • Two-way Talk
    • Supports 16/1 Alarm Input/Output
    • All channel synchronous realtime playback, GRID interface and smart search
    • Support 1 SATA HDD up to 4TB, 2 USB2.0
    • Multiple network monitoring: Web viewer, CMS(DSS/PSS) and DMSS
  • 4.

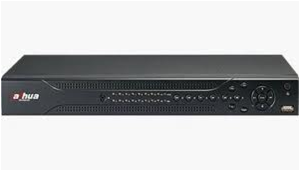

    32ch DVR Systems

    • 32 channel high performance standalone DVR
    • H.264 compression algorithm ideal for standalone DVR
    • 32 channel video inputs, 16 channel audio inputs, and 1 channel matrix output.
    • Realtme live display up to 32 cameras with 1080P high definiton
    • 800/960 fps recording for CIF and special channel D1(4CIF) realtime recording.
    • Dual encoding streams support, flexible for network transmission and mobile phone monitoring
    • Pentaplex func!on: live, recording, playback, backup & remote access
    • 8 HDDs supported, eSATA port & CD-RW/DVD-RW supported
    • 16 channel simultaneous playback
    • Smart video detec!on: mo!on detec!on, camera blank, video loss
    • Smart camera se$ngs: privacy masking, camera lock, color se$ng and !tle display
    • Alarm triggering screen !ps, buzzer, PTZ preset, e-mail, FTP upload
    • Powerful network so%ware: built-in web server, multi-DVR client, MSS(mobile phone surveillance software) & CMS
    • 1st, 9th, 17th and 25th video channels can support max D1(4CIF) realtime recording and other channels can support CIF realtime recording.
    • BNC, VGA, HDMI, Matrix Output.
    • Support backup on USB Pendrive, USB HDD, DVDRW, External USB, DVDRW, eSATA & Network
