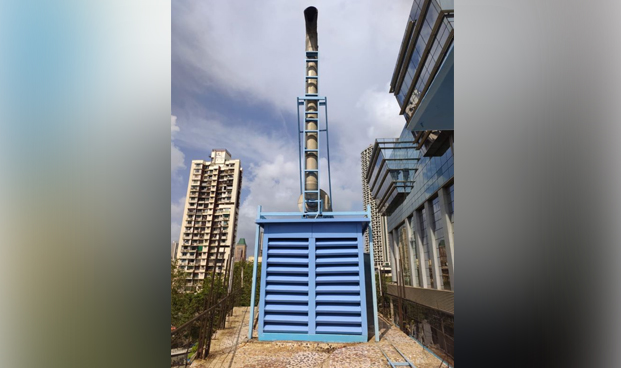

Acoustic Enclosure Canopy

Pattern	Plain
Thickness	3.5-4mm
Height	10feet

Preferred Buyer From

Location

India ( Maharashtra only) & All other countries

We are renowned as Manufacturer, Exporter and Supplier of Acoustic Enclosure Canopy that is available at the most competitive prices. The Acoustic Enclosure Canopy we manufacture is designed and developed precisely under the supervision of Engineers. We fabricate Acoustic Enclosure Canopy using the tested and certified raw components. We make sure that the Acoustic Enclosure Canopy complies with the international standards. For this the Acoustic Enclosure Canopy undergoes stringent quality check before final delivery.

Technical Details For Sound Proof Acoustic Enclosure :

• We at Jaideep Power Solution Pvt LTD manufacture an acoustic enclosure with our innovative techniques and keeping in view the following :
• Adequate ventilation for Genset cooling air requirement.
• Absorbent / insulating material used is fire radiant.
• Suitable thermal lagging to avoid localized heating of adjoining part of exhaust.
• Easy access to service points on Gensets. The engine is easily maintainable
• Temp. of enclosure does not exceed beyond 7 deg. of ambient temp.
• 75DbA at 1 mtr. Distance as per CPCB Norms.
• 7 Tanks anti rust treatement Process is being used on Panel.
• High Class Powder quoting is being done on all the Panels for better finish and long life of Panels.
• Heavy duty stainless Steal Locks.
• Provision for Lighting Arrangement inside the Acoustic Enclosure.
• Rockwool of 96 Density will be used.
• Wall thickness 100mm.

Specifications :

• Outer Body : 1.6MM THK, (16G) COM
• Doors : 1.6MM THK, (16G) CRCA SHEET
• Sound Insulation : 50 MM THK.

Base Frame Fabricated ‘C/I’ Channel. The Acoustic is Composite in Construction & is A Fully Assembled IntegralUnit.
