Lordwin Hydraulics manufacture hydraulic cylinders / jacks / power pack units / manifold blocks etc.used in machine building industries, plastic processing machineries, cold rolling mills, steel plants, marine equipments, earth moving / material handling equipments and various special purpose machineries as well.
We manufacture hydraulic presses up to 1000 tons.
Hydraulic cylinders are actuation devices that utilize hydraulic fluid to produce linear motion and force. Hydraulic cylinders are used in a variety of power transfer applications. Operating specifications, configuration or mounting, materials used for construction and various features are all important parameters we consider while we develop client specific devices.
Technical Specifications | |||||||
Model No. | Cap.Ton | Platen Size-MM | Day Light Gap - MM | Stroke - MM | Bore / Ram Dia - MM | Pressure Kg/Cm2 | Motor HP |
LH05 | 05 | 150X200 | 175 | 175 | 75 | 150 | 2 |
LH10 | 10 | 200X200 | 250 | 200 | 90 | 160 | 2 |
LH25 | 25 | 250X250 | 300 | 250 | 140 | 170 | 3 |
LH50 | 50 | 400X400 | 400 | 300 | 180 | 210 | 5 |
LH75 | 75 | 450X450 | 400 | 300 | 220 | 210 | 7.5 |
LH100 | 100 | 500X400 | 500 | 400 | 220 | 210 | 10 |

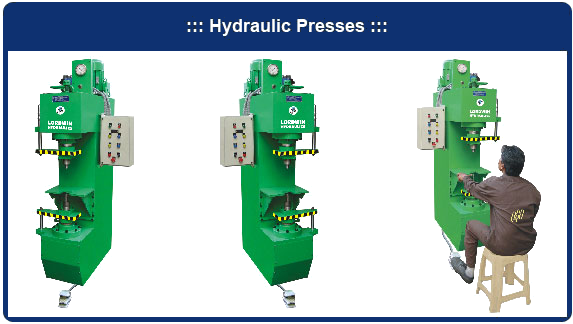

C-Frame hydraulic press can be used for simple pressing / coining / stamping / bending etc. and also for die cushion,
induction table & rubber moulding.
• In case of die-cushion, die cushion cylinder with all required system will be provided.
• In case of rubber moulding, heating provision in the working plate can be provided.
• According to the speed of the press, Motor H.P. can be changed.
• C-Frame Hydraulic Presses can be supplied with
a. Die Cushion / Ejection.
b. With pressure transmitter for precise pressure sensing
c. With load cell & L.V.D.T. for precise load & stroke control sensing.
Wide range of standard & custom-built superior quality hydraulic presses are also made at LORDWIN HYDRAULICS' Mumbai factory.
We also manufacture wide range of Hydraulic presses as per customers' specifications and special requirements.
