Transformers

With our rich industry experience, we are able to offer our esteemed clients a wide assortment of optimum quality Transformers.

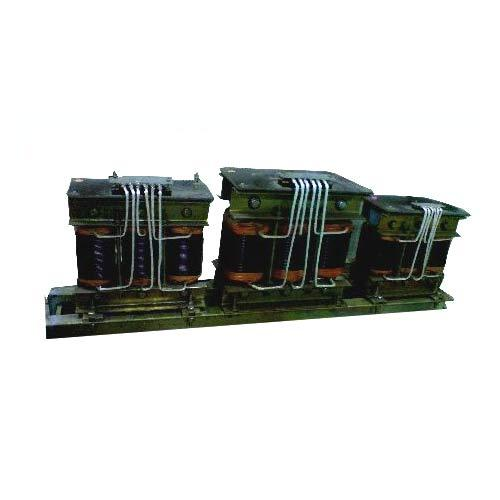

Control / Lightning Transformer

Specifications:

• El Type/ Toroidal type Single Phase/ Three Phase.
• Rating : 100 VA to 10 KVA.
• Freqency: 50 / 60 Hz.
• AC/DC Chokes A c / Dc, Haromonic Filters.
• Manufacturing as per customers requirement.

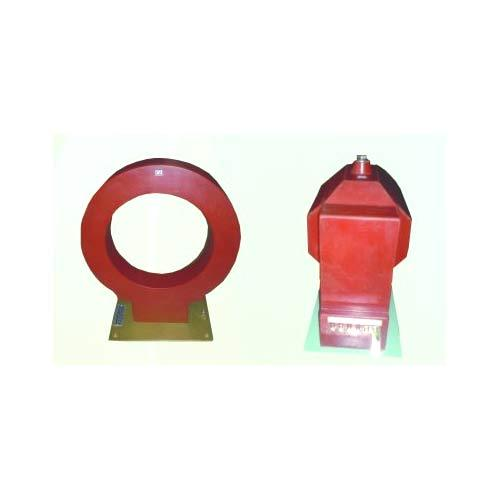

H.T. Current & Potential Transformer Upto 11 KY

Specifications:

• Indoor Type.
• Current Transformer : In Ring type >400 to 10000 A.
• Wound type < 400 At STC < 25 KA/ 1 Sec.
• Standard: As per I.S.2705, I.C. 60044-1.
• Potential Transformer : Single Phase/ Three Phase.
• As I.S. 3156,1EC 60044-2.
• Application : Metering/ projection / Sp. purpose.

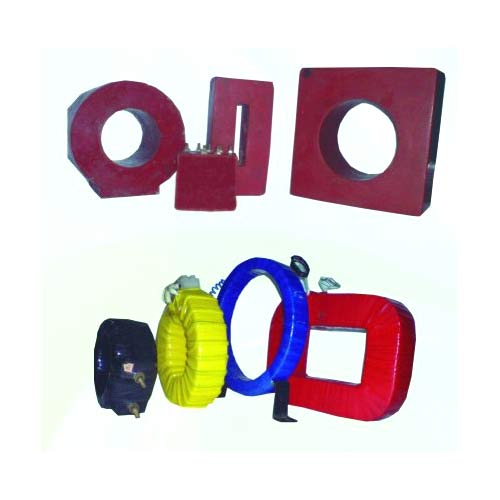

Low Tension Current and Voltage Transformer

Specifications:

• Ring type Construction : >100 Amp to 10000 A.
• Wound type : <100 Amp & less.
• Secondary current: 1 Amp or 5 Amp and as per customer requirement.
• Accuracy Class : 0.2, 0.5, 1 at any VA Burden.
• Standard IS 2705, IEC 60044 - 1.

Construction :

• Tape Insulated/ / Ring type/ Wound type, also in Epoxy Cast- Dry Type.
• Application : Metering / Protection / SP. Purpose CBCTs.

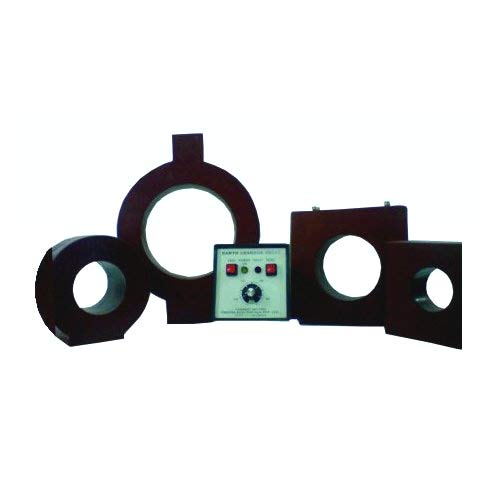

Core Balance Current Transformers

Core balance current transformers for earth leakage / fault relays.
Specifications:

• CBCT are Ring type rectangular type as per.
• As per customer's requirement.

Features:

• Compact & lightweight
• Reliable & Accurate Functioning
• Flexible design as per customers requirement
• Fast Delivery, Cost effective
