CNC Lathe Machine
We are manufacturer and exporter of CNC Lathe Machine.

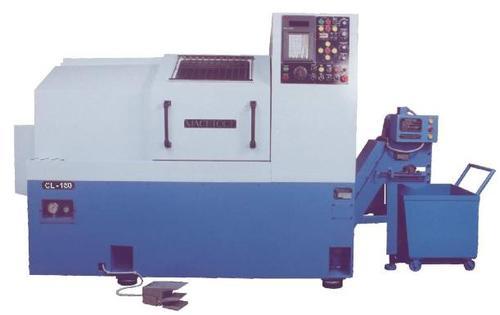

CNC Turning Center Machine
.jpg)
Item Code: CL-150
In order to become one of the preferential business choices, we are readily concentrated towards delivering to our customers a comprehensive consignment of High Precision CNC Lathe Machine. Under the supervision of skilled personnel, these offered machines are made to retain their quality attributes. Besides this, our customers can get these at affordable costs amid the pre-defined span of time.
Features:
- Suitable for medium and large size flange type chucking components.
- Flat Bed CNC Chucking Lathe.
- Maximum Turning Diameter of 250 mm
- Turcite Coated Guide-ways for X and Z axes
- Machines with linear tooling arrangement with upto 8 tool position Turret can also be used as option.
- A2 - 6 Spindle with 5.5 /7.5 Kw spindle power
- Spindle speed upto 3500 rpm continuously variable
- Fanuc 0i-Mate TD CNC system
- Hydraulic Chuck or Hydraulic Collet arrangement
- Rapid Traverse Rate of 10 meters/min
- Standard Accessories
- Gross weight of 2500 kg (appx)
CNC Chucking Lathe Machine
Item Code: CL-100
Demanded in workshop areas, this CNC Chucking Lathe Machine is made of durable components. This lathe machine is quality inspected by professionals on numerous parameters. Light weighted these lathe machines are damage resistant and superior in working. Customers can avail this lathe machines from market in various specifications and at genuine cost.
Features:
- Best working
- No vibration
- Shock proof
Salient Features:
- Flat Bed CNC Chucking Lathe - most Sutable for smallsize components likebearing races, textile rings, speed gears and various automobile component
- Linear tooling arrangement (optionally BTP-50 Tool Turret is also possible.)
- X, Z Axes with hardened, Ground Guide ways and Turcite Coating
- Ball Screws of PMI make - C-3 Class
- A2 - 5 Spindle
- Spindle Speed upto 4000 rpm continuously variable.
- Fanuc 0i TB mate CNC system control
- Rapid Traverse Rate of 10 meters/min
- Hydraulic Chuck or collet system
- Standard Accessories
- Auto Collant System
- Gross weight of 2000 kg(appx.)
High Precision CNC Chucking Lathe Machine
Item Code: TCL-300
Keeping in view the assorted necessities of the clients, we offer our clients a wide variety of High Precision CNC Chucking Lathe Machine. Made with perfection, these offered machines are widely treasured. Also, our products could be modified to meet with the exact desires of our customers to attain their trust and credibility.
Features:
- Fine finish
- Reliable
- Accurate dimensions
Salient Features:
- Suitable for extra large size components
- Slant bed with Slant Angle of 30 degrees
- Maximum Turning Diameter of 480 mm
- LM Guide -ways for X and Z axes
- 400 mm ABC
- A2 - 8 Spindle with 12 kw spindle power
- Spindle Speed upto 1500 rpm with two gear ratios
- Heavy Duty 8 position B-directional Turret
- Fanuc 0i-Mate TB cnc system
- Hydraulic Chuck and Tail- Stock
- Rapid Traverse Rate of 15 meters/min
- Standard Accessories
- Hardened and ground aquare guide-ways with turcite coating for both X & Z axes- option is also available
- Gross weight of 2800 kg (appx.)
2 Axes CNC Lathe Machine
Item Code: VS-500
Our firm is deeply involved in offering reliable 2 Axes CNC Lathe Machine. In addition to this, offered products are compact in size and quickly get installed. Moreover to this, lathe machines are presented in the market at genuine price.
Salient Features:
- Basic Machines - Kirloskar make model VS-500 Lathe
- Retrofitted Axes - X axis - 300 mm, Z axis - 1000mm
- Spindle with continuously variable RPM
- X and Z axes with Ground Guide-ways and Turcite Coating
- Ball screws of PMI make - c3 class
- Spindle with continuously variable RPM - fitted with kirloskar make
- TRK-6 DC drive & 11 KW DC motor . Max RPM-2000 rpm
- CNC system - Fanuc Power Mate with Betta motors
- Auto Lubrication System
- Chip Protection - Enclosed Guarding
- Hydraulic Chuck and tail stock
