CNC Turning Center Machines

Pioneers in the industry, we offer CNC Machines such as CNC Turning Center Machine, High Precision CNC Turning Center Machine, High Precision CNC Chucking Lathe Machine and High Precision CNC Lathe Machine from India.

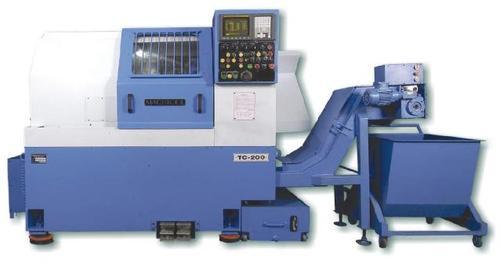

CNC Turning Center Machine

Item Code: TCL-200
Since we have incepted in this business realm, we have been engrossed in delivering a wide consignment of CNC Turning Center Machine. Available with us in multiple provisions and customized forms, these offered machines are widely recommended. To add, these are well tested before finally getting shipped at the end of our customers amid the assured span of time.

Features:

  • Efficient
  • Low power consumption
  • Durable

Salient Features:

  • Slant - Bed CNC Turning Center specially designed for high accuracy, medium & large sized components
  • Suitable for forged to finish operations in mass production of components like medium & large sized gear blanks, valve bodies, flanges and shafts upto 400 mm length
  • A2-6 Spindle with 5.5 kw/ 7.5 kw spindle power
  • Heavy duty eight station Tool Turret
  • Rapid Traverse Rate of 15 meters / min for both axes
  • Heavy duty precision grade Linear motion Guide-ways for both axes

CNC Turning Center

Item Code: TCL-100
Comprehending the varying desires of our prestigious patrons, we are enthusiastically engrossed in presenting a world class variety of CNC Turning Center. Owing to their functional efficiency, reliability and low maintenance, these are broadly treasured. In addition to this, these are tested thoroughly to retain their flawlessness.

Features:

  • Rugged
  • High functionality
  • Durable

Salient Features:

  • Slant - Bed CNC Turning Center Specially designed for accuracy , small & medium sized components
  • Suitable for forged to finish operations in mass production of components like small & medium sized gear blank, valve bodies, flanges and shafts upto 300 mm length
  • A2-5 Spindle with 3.7 kw / 5.5 kw spindle power
  • Eight position Tool Turret
  • Rapid Traverse Rate of 15 meters / min for both axes
  • Precision grade Linear Motion Guide-ways for both axes

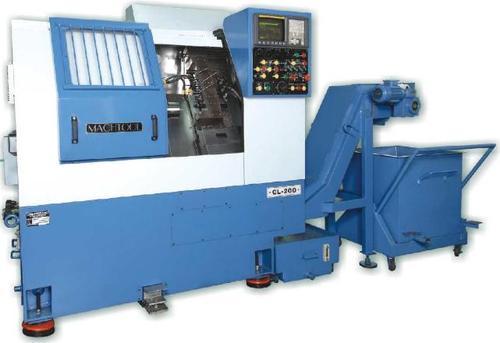

CNC Turning Center

Item Code: CL-200
Highly efficient in working, these High Precision CNC Turning Center Machine are reliable in nature and show longer life performance with no maintenance requirement. Offered CNC turning machines are reliable and offer hassle free installation. Besides this, experts ensure longer life working of these high precision machines.

Features:

  • Rugged
  • High functionality
  • Durable

Salient Features:

  • Suitable for extra large size components
  • Slant bed with Slant Angle of 30 degrees
  • Maximum Turning Diameter of 480 mm
  • LM Guide -ways for X and Z axes
  • 400 mm ABC
  • A2 - 8 Spindle with 12 kw spindle power
  • Spindle Speed upto 1500 rpm with two gear ratios
  • Heavy Duty 8 position B-directional Turret
  • Fanuc 0i-Mate TD cnc System
  • Hydraulic Chuck and Tail- Stock
  • Rapid Traverse Rate of 15 meters/min
  • Standard Accessories
  • Hardened and ground square guide-ways with turcite coating for both X & Z axes- option is also available
  • Gross weight of 2800 kg (appx.)
