Our Products

CEM 1 Tool Punched.

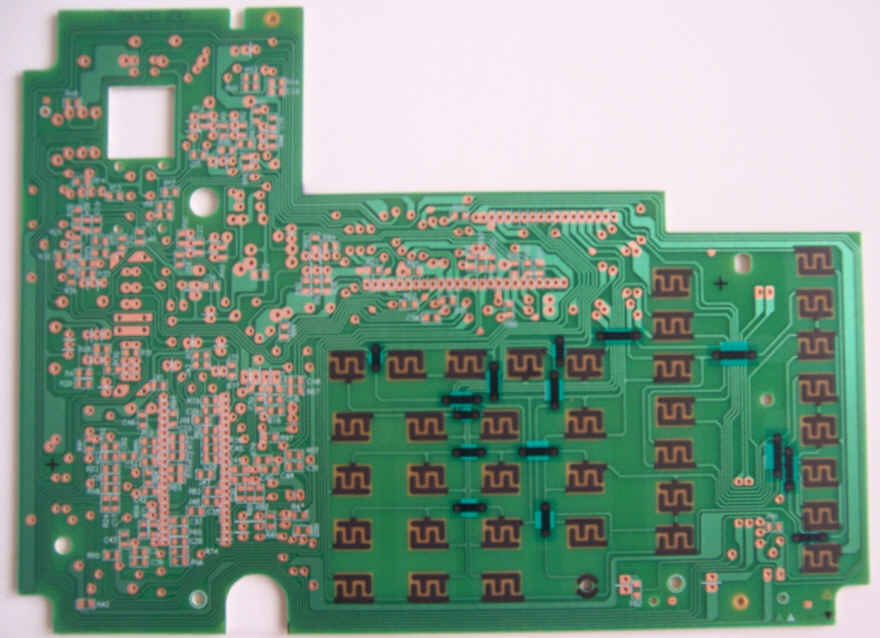

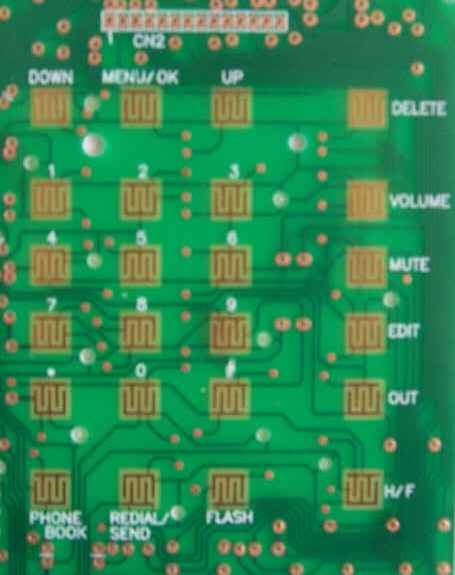

FR1 Tool Punched with Carbon Key pads & jumpers below 150 ohms resistance.-Telephones

FR1 Tool Punched

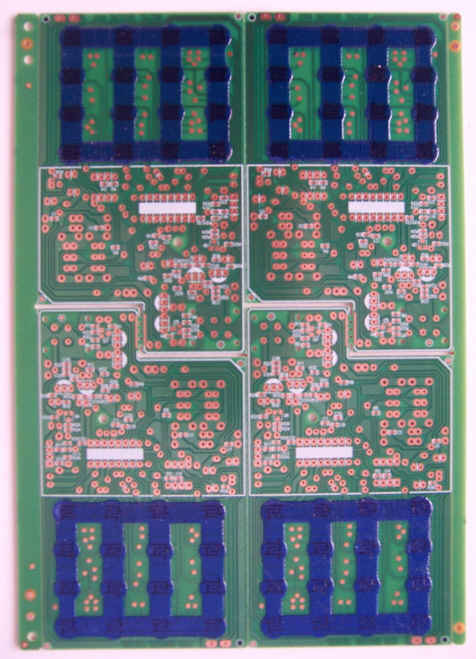

FR1 Tool Punched with Carbon Printed & Peelable Mask

FR4 Tool punched & Gold plated

Coin Box Telephone PCB - CNC

CEM1 Tool Punched

FR1 Tool Punched

Push-Back Tool punched

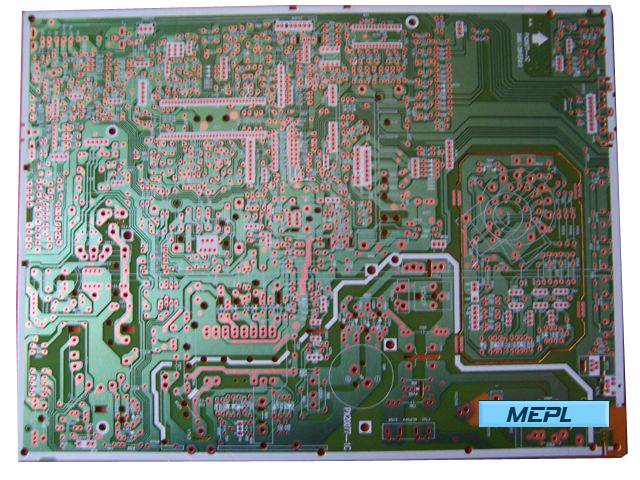

PCB for Audio Video Application

Product Range

• Single Sided Printed Circuit Boards. [SMOBC with LSM]
• Single Sided Printed Circuit Boards with Carbon Printed Keypads and Screen Printed Jumpers.
• Single Sided Printed Circuit Boards with Selective Gold Plating.

Buisness Focus

Laminated Grades Used

Sr. No	Name/ANSI	UL-94	Thickness	Particulars
1	XPC	94HB	1.60mm with 35μ Cu	Paper Phenolic Laminates
2	FR-1	94V-0	1.60mm with 35μ Cu	Paper Phenolic Laminates
3	FR-1 Green	94V-0	1.60mm with 35μ Cu	Paper Phenolic Green Laminates free of Halogen, Antimony, Cadmium
4	FR-2	94V-0	1.60mm with 35μ Cu	Paper Phenolic Laminates
5	FR-2 Green	94V-0	1.60mm with 35μ Cu	Paper Phenolic Green Laminates free of Halogen, Antimony, Cadmium
6	CEM-1/3	94V-0	1.60mm with 35μ Cu	Composite Epoxy Material
7	FR-4	94V-0	1.60mm with 35μ Cu	Glass Epoxy Laminates
