As your single-source provider, human machine interface technology is engineered to meet the increasingly complex processes of your machines and systems. HMI is optimized to meet your specific human machine interface needs using open and standardized interfaces in hardware and software, which allow efficient integration into your automation systems.
Beautiful Screen
• TFT for all screen sizes to allow good monitor conditions for operators.
• 800 x 480 Pixels
• Complete dimming functionality available to reduce power consumption.
• Availability of a 7” & 10”
Easy connectivity
• Built in Ethernet
• 2 Serial lines for communications with devices on the machines.
• Up-to-date interfaces ( USB 2.0 , SD cards ) to allow easy maintenance
• The 4 Gb SD card allows large log files capability
• New mini-USB port allows downloads with standard cable
Easy Installation / Operation
• Same cut-out than Magelis GXO range, for an easy substitution by keeping the same design
• Minimum way for connectors location to offer a better cabling of the panels.
• Unique fast connection power plug for the whole range.
• Only 4 installation fasteners for the whole range
Benefits
• Single Com Port GXU
• Simplified Structure
• Compact Design
• Simplified Designer Basic make programming Easy
• Built in USB Connector Lock
• High Anti interference ability
• Built in Power Isolation
• Enhanced Communication
• Optimized communication
• Easy to install and sustainable offer
• Adapted to your environment
Applications - Suitable foe OEM Machines
• Compact Machines
• Packaging (small labelling machines, small bagging machines)
• Textile
• Small Applicastion
• HVAC

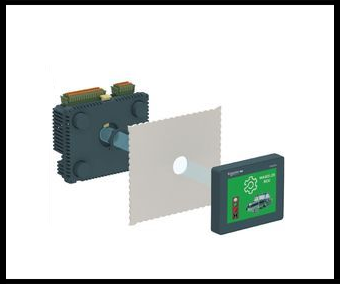

The integrated design of Magelis SCU delivers maximum functionality while keeping installation easy. Especially suitable for small machines and simple processes control. Its state-of-the-art display provides a crystal-clear readability.
You save time
• Installation is easy, cabling is simple with.
• The Ø 22mm mounting system
• The rear module snapped on a DIN rail via an ingenious remote cable
You save cost
• A modular STU screen, and the flexible mechanical mounting system Ø 22mm hole.
• A rear module with cheap and powerful electronic embedding I/O
• Full Set of communication ports.
• Less wire is necessary
• Cost of Magelis SCU is lower than the usual equipment for simple machines consisting of a PLC
You save space
• Magelis SCU helps you to save the space that is normally reserved for a PLC.
• Making it suitable even for installations with very limited space.
Benefits: Magelis SCU : the new generation of small HMI controllers
• State of the art display
• Rich communication capabilities
• Single software suite SoMachine
• Easy machine maintenance and upgrade
Applications: Machines for industry
• Small Machines
• HVAC
• Pumping
• Packaging
Beautiful Screen:
• TFT 65 K colours for all screen sizes to allow good monitor conditions for operators.
• LED backlight for the whole range enabling energy saving.
• Complete dimming functionality available to reduce power consumption.
• Availability of a 7” wide display offering up to 40% more graphic space than standard 5”7.
Easy Connectivity:
• Embedded Ethernet for all terminals with wide choice of web services.
• 2 Serial lines for communications with devices on the machines.
• Up-to-date interfaces ( USB 2.0 , SD cards ) to allow easy maintenance.
• The 4 Gb SD card allows large log files capability.
• New mini-USB port allows downloads with standard cable
Easy Installation / Operation :
• Same cut-out than Magelis XBTGT range, for an easy substitution by keeping the same design
• Minimum way for connector location to offer a better cabling of the panels.
• Unique fast connection power plug for the whole range.
• Only 4 installation fasteners for the whole range
• Addition of function keys on 3”5 and 7” wide displays
Easy environment adaptation
• Magelis GTO operating now up to 55°C for hot environment.
• Worldwide certifications including hazardous locations and Marine
• Smart environmental covers accessory to protect against chemical and oil substances.
Availability of rugged panels for specific applications
• Stainless steel panels
• Conformal coating for applications in Food & Beverage or Pharmaceutical industry.
Benefits: Magelis GTO: the first optimized terminal that doesn’t compromise features and performances
• State of the art display
• Optimized communication
• Easy to install and sustainable offer
• Adapted to your environment
• Availability of stainless steel panel for food and beverage applications.
Applications:Simple machines for industry
• Compact Machines
• Packaging (small labelling machines, small bagging machines)
• Food & Beverages
• Pharmaceutical Industry
• Material Handling System
Magelis GTU offers the best flexibility with its unique concept: combine a CPU box with a Display of your choice.
Introducing Smartphone-like interface into the industrial world: powered by Vijeo XD
Magelis GTU is the first HMI with resistive multitouch screen without limitation.
Availability of 4/3 and 16/9 format, and multi display function.
Ensure high level of performance and openness:
• Front USB ports with complete IP66 and IP67 protection to access data in the HMI without open the cabinet door
• High level of communication with dual serial and dual Ethernet, including remote access to your machine thanks to mobile apps (Vijeo Design' Air and Vijeo Design'Air Plus) and Web Gate function
• Robustness allows to decrease the necessary maintenance, and the pre-mounted fasteners on the terminal make you save installation time.
Benefits:Magelis GTU: The Best Ever user friendliness and pleasure to work
• State of the art display
• Optimized communication
• Easy to install and sustainable offer
• Adapted to your environment
• Availability of stainless steel panel for food and beverage applications
Applications: Simple machines for industry
• Compact Machines
• Packaging (small labelling machines, small bagging machines)
• Food & Beverages
• Pharmaceutical Industry
• vMaterial Handling System

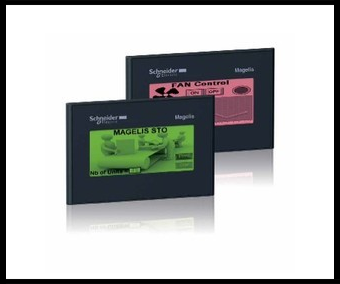

Magelis STO terminals adapt to your needs by integrating the latest technology innovations to enhance the productivity of your machines:
• Unique software configuration
• Power supply 24 VDC
• Serial ports RJ45 RS485/232 multiprotocol
• Mini-USB port, Memory Stick, USB keyboard
Magelis STO:
• Touch screen 3.4’’, 200 x 80 pixels, 2 versions 3 colours (green, orange, red) or (white, pink, red)
• Tool free mounting with Magelis Spring Clips
Possible communication:
• Serial Port
• Zelio link
• Ethernet
Benefits:A new generation of Small Panels
• Communicative - Equipped to communicate with the Schneider Electric as well as third-party products.
Cost-effective - Both, fast mounting system and unique software, contribute to cut down the global cost of your installation
Applications: Simple machines for industry
• Compact Machines
• Packaging (small labelling machines, small bagging machines)
• Food & Beverages
• Pharmaceutical Industry
• Material Handling System
Magelis STU terminals adapt to your needs by integrating the latest technology innovations to enhance the productivity of your machines:
• Unique software configuration
• Power supply 24 VDC
• Serial ports RJ45 RS485/232 multiprotocol
• Mini-USB port, Memory Stick, USB keyboard
Possible communication:
• Serial Port
• Zelio link
• Ethernet
Magelis STU
• High definition colour screen TFT QVGA 3.5’’ and 5.7”
• Tool free mounting, using the Schneider Electric « push button system 22mm
• Ethernet port RJ45 10/100 Base T
Benefits: A new generation of Small Panels
• Revolutionary mounting - With Magelis Spring clips for the STO and a “push button” system for the STU
• Communicative - Equipped to communicate with the Schneider Electric as well as third-party products.
• Cost-effective - Both, fast mounting system and unique software, contribute to cut down the global cost of your installation
Applications:Simple machines for industry
Lexium 52 stand-alone servo drives meet the typical requirements of production and packaging machinery, as well as material handling and assembly systems:
• Compact Machines
• Packaging (small labelling machines, small bagging machines)
• Food & Beverages
• Pharmaceutical Industry
• Material Handling System

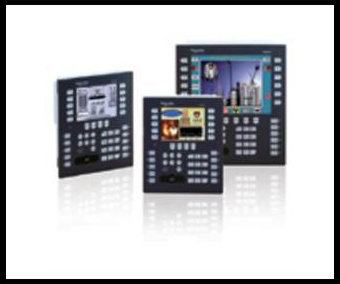

Ultra-flexible user interface.
• Touch screen and keypad keys configurable simultaneously or separately.
• Function keys customisable with labels (Fi keys)
• Associated screen pictograms (Ri keys).
• Industrial pointer to execute precise commands on-screen.
• Alphanumeric keypad using mobile phone keypad principle.
• 3-colour LEDs associated with function keys to signal command status.
• Improved key sensitivity for visual machine control.
Communication capacity.
• Serial ports
• USB ports
• Fast Ethernet ports.
• Audio output.
• Compact flash card.
Benefits:
Dedicated to severe environments.
• Magelis XBT GK graphic terminals share their technical characteristics with Magelis XBT GTs.
• Ultra-flexible, they can be configured and controlled to precisely match your requirements.
• Particularly designed to operate in severe environments, they offer the reassurance of optimum control.
• Easily programmable using Vijeo Designer software.
• Magelis XBT GK faithfully reproduces your dialogue in all circumstances.
Applications: Complex Machines for industry
• Severe Environment
• Mining
• Food & Beverages
• Pharmaceutical Industry
• Metal Industries
A large range of HMI controllers for your machines
Compactness & Integration.
• 3 screens types
• 4 connections options (USB, Serial Line, CANopen & Ethernet
• 3 I/O categories
• HSC100Khz & 4 PTO 65Khz
• Web Gate
• Web server (Ethernet version)
Flexibility & Openness
• 20 Magelis XBT GT/GK becomes HMI Controllers
• From 5 ’’7 monochrome up to 15’’ colour screen
• Touch or Keyboard user-interface
• Serial lines, Ethernet & CANopen
• Advanced features (Video, data sharing, data logging, high-brightness…)
Discover : "Flexible Machine Control"
• 1 software environment SoMachine
• Hardware control platforms :
• Logic controllers Modicon M238
• Logic controllers Modicon M258
• Motion controllers Modicon LMC058
• Controllers Altivar IMC
Benefits:
With control inside
The Magelis XBT GC HMI controller combines human machine interface and control system functions in a single product. The high level of integration makes it extremely compact while simplifying control system equipment. Highly economical, this product helps reduce costs throughout the life cycle of your machines, regardless of production run length or the level of customization.
Applications: Machines for industry
• Severe Environment
• Mining
• Food & Beverages
• Pharmaceutical Industry
• Metal Industries
