We offers the right controller for a wide range of automation requirements. The range of controllers comprises of Basic, Advanced, Distributed and Software Controllers offering impressive scalability and integration of their functions. The engineering in the Totally Integrated Automation Portal enables optimum automation solutions to be found for every application.
Optimize your machine design -
High ratio performance / cost with efficient embedded features dedicated to simple axis motion control (high speed counting, PTO, application function blocks)
Secure your investment and development flexibility
• Embedded CANopen master to allow easy and adaptable architectures
Fit the control configuration
• Economic digital, analogue or high speed counting expansion modules.
Advanced features embedded
• 8 high speed counting up to 100kHz, 4 PTO/PWM (only with 24VDC models ) outputs, fast outputs for reflex actions.
• 1 or 2 RS232/RS485 serial line for HMI connection or peripherals devices.
Easy to program and commissioning
• Removable connectors 1 dedicated USB port and programmable.
• SoMachine software with ready-to-use automation system function libraries

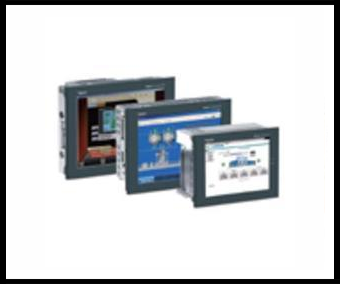

Comfortable user interface
• High definition display of sensitive colourful touch screen.
• Wide viewing angle up to 160°, optimum contrast and brightness.
• USB port on front panel.
Simplified upgrading thanks to dimensions identical to Magelis XBT GT.
Discover: "Flexible Machine Control"
One software environment SoMachine.
Multiple hardware control platforms :
• Logic controllers Modicon M238
• Logic controllers Modicon M258
• Motion controllers Modicon LMC058
• HMI controllers Magelis XBTGC
• Drive controllers Altivar IMC
Benefits -
A Power Centre at the service of your machines.

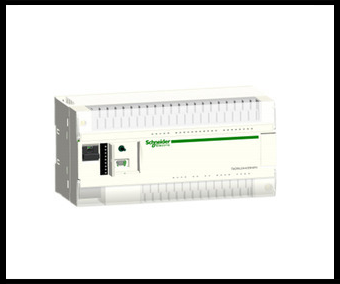

The Modicon M238 programmable controllers provide simple and intelligent solutions to meet all your business needs.
Provide an optimized solution to repetitive machines based on high speed counting and simple
Positioning features for 1 to 4 axes through PTO channels or CANopen.
Applications - General Machine Control
Conveying
Packaging

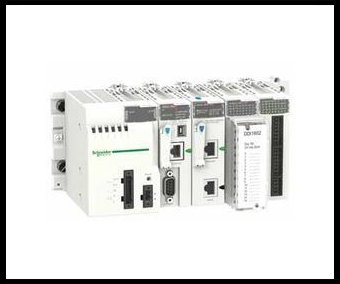

Far more than a PLC, our Modicon Programmable Automation Controllers (PACs) are built to suit the needs of the process industry and a wide range of demanding automation applications. Modicon M340 can be used individually but is also the perfect companion of Modicon Premium and Modicon Quantum, increasing the performance, the quality and the profitability of your industrial process, facilities or of your machines.
"All-in-one CPU"
• 7 Kinst/ms.
• Multitasking system for guaranteed reflex time
• USB port for programming and HMI
• 2 additional ports as required: Ethernet, CANopen, Modbus.
Comfortable Memory:
• Programming code up to 70 Kinst.
• Application back-up in supplied memory card
• Additional file storage up to 128 MB with FTP access.
Specific Applications:
• Integrated RTU solution for Water, O&G, Power and Infrastructures
• Process control (Integrated Process Control library)
• High density analog I/O modules (New)
• Counting PTO module
• No battery required
• Extended temperature (-25°C +70°C)
• Protection of SI and OEM’s know-how by the SD card technology
Benefits
Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of your process, it provides you Plug & Work solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten your programming and commissioning time.
Applications:Any industrial application
Maintenance free environment:
• Process industries
• Renewable energies
• Water, Cement
• Manufacturing
• Infrastructures
• Machines
With the new Premium processors in the Unity range, there is no need to worry about restrictions.
• 5 IEC languages as standard: LD, ST, FBD, SFC, IL.
• High performance CPUs with 37 ns per instruction and up to 7 Mb of program.
• level multitasking system
• A compact system (very high density modules) particularly at ease in extended architectures (distribution of 16 racks in real time without repeater)
• extensive catalogue of application-specific modules (safety, reflex processing, counter, position control, motion, weighing, data storage)
• New High End processors
• All Ethernet TCP/IP Transparent Ready services: IO scanning, Global Data, Web server, e-mail messaging, direct access to databases, TCP Open, Network Time Protocol, etc.
• Numerous built-in ports: USB port, Ethernet TCP/IP port with Web server, CANopen or FIP master port, Modbus serial port
• The widest connectivity offer on the market:
• AS-Interface
• Modbus Plus,
• INTERBUS
• PROFIBUS DP
Benefits:
Winning products right across the board
More flexibility and openness.
Premium offers unrivalled performance, reducing cycle times and avoiding any need for optimization, thanks to the integration of more diagnostics and production data, freedom of communication and access to generic programming.
Applications:
Complex to Large process applications:
• Water and Waste Water plants: WWTP, Pumping, desalination
• and Beverage: Liquid Food, Dairy, Confectionary, Pet Food
• Mining Metal Minerals: Mining water treatment, Cement, Conveyors
• Power: Small/Medium/Large plants
• O&G: Midstream
• Transportation: Metro, Tunnels, Airports
• OEM Process: Material Handling, turbo machinery.
