Test Terminal Blocks

Pioneers in the industry, we offer Test Terminal Blocks such as Terminal Block Connectors, Test Terminal Block Series - NKWB/FC-01, Test Terminal Block NW Series, SS Test Terminal Blocks, Nelster Test Terminal Blocks, Nelster CT Test Blocks and many more items from India.

Test Terminal Block Series - NKWB/FC-01

Facilitates Easy & Safe in situ testing of C.T. operated metering Systems without disrupting load circuit.Robust ConstructionHigh Electrical strenghtFacilitates injecting voltage from external source by using Banana Plug.Easy Sealing arrangement.Bridging Link option available for earthing of current returns with C - Phase. Return of current thus connected to earth.Extend Robust Tranparent Cover.

Type:-
• Test Terminal Block.
• Front Connected.
• Without bridging Link

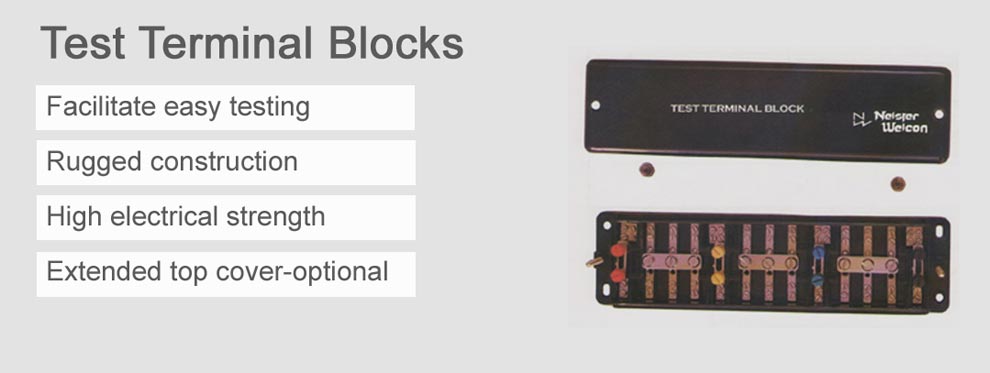

Test Terminal Blocks

Item Code: NW-34LFC-SC
We bring forth for our clients a premier quality Test Terminal Blocks NW-34LFC-EC (Standard Cover), which are acknowledged for high electrical strength and rugged construction. Further, it offers convenient testing for the users. Besides, the specifications can be altered as per the demands of our clients.

Specifications:
• Extended top cover: optional
• Transparent top cover: optional
• Housing & Top cover: phenolic molding and black
• Terminals, screws & links: Brass & nickel plated
• Rated voltage: 600 V max
• Rated current: 50 A max

Other Information
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
• Minimum Order Quantity: 10 Pieces
• Port of Dispatch: Mumbai(Maharashtra) India
• Production Capacity: 45000 peices
• Delivery Time: Negotiable
• Packaging Details: Export Worthy Packing or Corrugated Box Packaging

Test Terminal Block NW Series

Item Code: NW-34SFC-SC
We bring forth for our clients a test block SS-34SFC–EC (standard cover) for testing/calibration of electromechanical and electronic polyphase integrated meters and protective relays. These products are identical to standard test terminal block in construction and offer complete protection against flash over between terminals. Owing to functionality and form, it is widely appreciated by our clients situated all across the world.

Other Information
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
• Minimum Order Quantity: 10 Pieces
• Port of Dispatch: Mumbai(Maharashtra)India
• Production Capacity: 45000 peices
• Delivery Time: Negotiable
• Packaging Details: Export Worthy Packing or Corrugated Box Packaging

SS Test Terminal Blocks

Item Code: SS-34LFC-EC
We offfer SS Test Terminal Blockss series 3 phase 4 wire link type front connected with transparent cover. Test terminal block offers convenience in,in-situ testing of electromechanical equipments without disrupting the load circuit.
Test terminal block offers convenience in,in-situ testing/calibration of electromechanical and electronic polyphase integrated meters,protective relays etc, without disrupting the existing load circuit. Housed in high grade phenolic moulding with integrally moulded barriers,it offers ample protection against flash over between terminals.
All terminals are high quality brass,duly nickle plated and having 3. 4mm hole for cable entry and m3 screws for clamping.
M4 brass studs with washer and nuts are provided at the rear,in rear connection types. Sealing hole provided on the cover securing knobs and studs,prevent unauthorized access.
The voltage terminals have shorting links and color coded moulded knobs for operational convenience. Each group of current terminals consists of three terminals with interconnected screws or links(depends whether screw or link type) for injecting current from a portable test set or to short circuit current transformers secondaries. These ttbs are available in screw or link type,for front or back connected applications.

Types:
• screw type front connection : SS-34SFC
• screw type back connection : SS-34SBC
• link type front connection : SS-34LFC
• link typer back connection : SS-34LBC

Other Information
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
• Minimum Order Quantity: 10 Pieces
• Port of Dispatch: Mumbai(Maharashtra)India
• Production Capacity: 45000 peices
• Delivery Time: Negotiable
• Packaging Details: Export Worthy Packing or Corrugated Box Packaging

Test Terminal Blocks

Item Code: SS-34SFC
Test Terminal Blocks offers convenience in testing of electromechanical equipments without disrupting the load circuit.
Test Terminal Block offers convenience in, in-situ testing/calibration of electromechanical and electronic Polyphase integrated meters, protective Relays etc, without disrupting the existing load circuit.Housed in high grade phenolic moulding with integrally moulded barriers, it offers ample protection against flash over between terminals.
All Terminals are high quality brass, duly Nickle plated and having 3.4mm hole for cable entry and M3 screws for clamping.
M4 brass studs with washer and nuts are provided at the rear, in rear connection types. Sealing hole provided on the cover securing knobs and studs, prevent unauthorized access.
The voltage terminals have shorting links and colour coded moulded knobs for operational convenience. Each group of current terminals consists of three terminals with interconnected screws or links(depends wheather screw or link type) for injecting current from a portable test set or to short circuit Current Transformers Secondaries .
These TTBs are available in screw or link type,for front or back connected applications.

Other Information
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
• Port of Dispatch: Mumbai(Maharashtra)India
• Production Capacity: 45000 peices
• Delivery Time: Negotiable
• Packaging Details: Export Worthy Packing or Corrugated Box Packaging

Nelster Test Terminal Blocks

Item Code: NW-13BC
Test Terminal Blocks offer convenience in in-suit testing / calibration of electromechanical & electronic polychase integrated meters and protective relays etc, without disturbing the existing load circuit. Housed in a robust phenolic moulding with integrally moulded barriers it offers ample protection against flash over between terminal. The voltage terminals, grouped separately have protective phenolic shroud. The three group of current terminals, each consisting of three terminals have interconnecting links to inject current from portable test set or to short circuit current transformer secondaries. Detachable. Punched blanking strip is provided on both ends of terminals. During normal operation, these banking strip are positioned to form part of the cover. It is reversed during testing, to faciliate entry of cables and positioning of top cover.

Other Information
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
• Minimum Order Quantity: 10 Pieces
• Port of Dispatch: Mumbai(Maharashtra) India
• Production Capacity: 45000 peices
• Delivery Time: Negotiable
• Packaging Details: Export Worthy Packing or Corrugated Box Packaging

Nelster Test Terminal Blocks

Item Code: NW-33SFC
We offer Nelster Test Terminal Blocks (ttb) 3 ph. 3 wire screw type front connected.
Features:
• facilitate easy testing
• rugged construction
• high electrical strength
• extended top cover optional
• Transparent top cover optional
• Housing & top cover phoenlic moulding
• black Terminals, screws & links
• brass nickle plated
• Rated voltage 600 v max
• Rated current 50 a max

Other Information
• Pay Mode Terms: L/C (Letter of Credit)
• Minimum Order Quantity: 10 Pieces
• Port of Dispatch: Mumbai(Maharashtra) India
• Production Capacity: 45000 peices
• Delivery Time: Negotiable
