Hot Dip Galvanized bolts
Quality Control
Our Quality Management System based on the International Standard Specification ISO – 9001-2000 was adopted in 1997. The system ensures that our products adequately comply with the standards and specifications required by the customers. Our QA/ QC activities guarantee that the material supplied by us comply with the required standard specifications. They also ensure that all the employees affecting and well-equipped to perform their assigned tasks with proficiency and perfection.
The inspection activity starts right from the receipt of Raw Material and continues throughout the manufacturing and galvanizing process until final shipment. Trained and highly qualified QC staff conducts inspections at every stage.

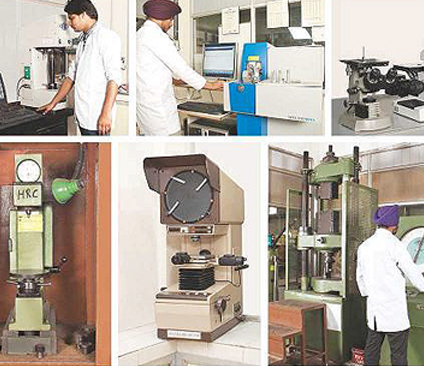

In-house testing laboratory is well-equipped to do tests like Hardness, Proof Load, Wedge Load, Tensile Strength, Head Soundness, Elongation and Yield Strength etc. All the gauges, micrometers and venire calipers are periodically got calibrated and examined by government approved agencies. Test Reports are provided with each dispatch for customer’s satisfaction.
| Sr. No. | Standard | Item | Mechanical | Dimensional |
|---|---|---|---|---|
| 1 | IS
ISO BS |
Hex Bolt | IS 1367 PART-III
ISO 898 PART-I |
IS 1363 PART P-I ISO4016 & ISO 4014 |
| 2 | IS ISO ASTMAS DIN |
Heavy Hex Bolt | IS 1367 PART-III ISO 898 PART-I ASTM A307B ASTM A325 ASTM A325M ASTM A490 ASTM A490M AS 1252 DIN EN ISO 898 PART-I |
IS 3757 ISO 7411, ISO 7412 ASME B18.2.1 ASME B18.2.1 ASME B18.2.3.7M ASME B18.2.1 ASME B18.2.3.7M AS 1252 DIN 6914 |
| 3 | IS DIN ASTM BS AS |
Hex Structural Bolt | IS 1367 PART-III DIN EN ISO 898 PART-1 ASTM A394 BE EN ISO 898 PART-I & BS 4190 AS 1111 & AS 1110 |
IS 12427, IS 6639 DIN 7990 ASME B18.2.1 BS 4190 AS 1559 |
| 4 | IS DIN AS ASTM |
Coach/Carrige Bolt | IS 1367 PART-III DIN EN ISO 898 PART-I AS 1390 ASE J429 |
IS 2609 DIN 603 AS 1390 ASME B18.5 |
| 5 | IS
AS |
Hex Screw | IS 1367 PART-III IS 1367 PART-III AS 1111 & AS 1110 ISO 898 PART-1 DIN EN ISO 898 PART-I |
IS 1363 PART P-II IS 1364 PART P-II AS 1111 & AS 1110 ISO 4017 & ISO 4018 DIN 933, DIN 558 |
| 6 | IS ISO DIN ASTM BS ASTM ASTM |
Stud & Bent Bolt/U Bolt | IS 1367 PART-III ISO 898 PART-1 DIN EN ISO PART-I ASTM A307-A BS EN ISO 898 PART-I ASTM A 1554 SAE J429 & ASTM A307 |
AS PER DRAWING AS PER DRAWING DIN 975 ASME B18.31.1 AS PER DRAWING AS PER DRAWING IFI-136 |
| 7 | DIN ISOASTM |
Machine Screw | DIN EN ISO 898 PART-I ISO 898 PART-IASTM A307 GRADE A |
DIN 963/ISON2009, DIN 964 ISO 2010, DIN 965/ISO 7046 & DIN 966/1507047 ASME B18.6.3 |
| 8 | ASTM | Flange Bolt, Hex Bolt Square Head Bolt & Hex Cap Screw |
SAE J429 GRADE2,5,8 | ASME B18.2.1 |
| 9 | ASTM | Forge Eye Bolt | ASTM A489 | ASME B18.5 |
| 10 | ASTM | Head Plow Bolt | ASE J429 & ASTM A307 | ASME B18.9 |
| 11 | ASTM | Slotted Head Cap Screw | SAE J429 & ASTM A307 | ASME B18.6.2 |
| 12 | ASTM | Socket Screw | ASTM A574 | ASME B18.3 |
| 13 | ASTM | Socket Button Head Cap Screw | ASTM AS74/ASTM F835 | ASME B18.3 |
| 14 | DIN/ISO
ASTM |
Socket Hex Counter Sunk ScrewButton Head Screw |
DIN EN ISO 898 PART-I & ISO 898 PART-I ASTM A574 ISO 898 PART-I & ASTM A307 |
DIN 7991/ ISO 10642 ASME b18.3 |
| 15 | BS | Hex Bolt (BSW, UNC) & Hex Head Square Bolt |
BS 1068, BS 1069, BS 1083 BS 916, BS 1769, BS 1768 & SAE J429 |
BS 1068, BS 1069, BS 1083 BS 916, BS 1769, BS 1768 |
| 16 | IS ISO DIN BS AS ASTM DIN ASTM |
Hex Nut
Hex Nut & Square Nut |
IS 1367 PART-VI ISO 898 PART-II DIN 267 PART-IV ISO 898 PART-II/BS 4190, BS 3692 AS 1112 ASTM A194, A563 DIN 267 PART-IV ASTM A563M, A325M |
IS 1363 PART-III, IS 14394 ISO 4034, iso 4032 DIN 934, DIN 555 BS 4190, BS3692 AS 1112 ASME B18.2.2 DIN 557 IFI 145 |
| 17 | IS ISO DIN AS ASTM |
Heavy Hex Structure Nut | IS 1367 PART-VI ISO 898 PART-II DIN 267 PART-IV AS 1112 ASTM A563M, A325M |
IS 6623 ISO 7414 DIN 6914 AS 1252 A563M |
| 18 | IS DINISO BS ASTM |
Plain Washer | DIN 125, DIN 126, DIN 433 DIN 9021, DIN 1440 ISO 7089, ISO 7091 BS 4320 ASTM B18.21.1 |
IS 2016 DIN 125, DIN 126, DIN 433 DIN 9021, DIN 1440 ISO 7089, ISO 7091 BS 4320 ASTM B18.21.1 |
| 19 | IS DIN ASTM |
Pack Washer | IS 6610 DIN 7989 ASTM B18.21.1 |
IS 6610 DIN 7989 ASTM B18.21.1 |
| 20 | IS DIN ISO ASTM ASTM |
Heavy Washer | IS 6649 DIN 6916 ISO 7415 F436M, F436 AS 1252 |
IS 6649 DIN 6916 ISO 7415 F436M, F436 AS 1252 |
| 21 | IS DIN BS ASTM AS |
Spring Washer | IS 3063 DIN 267 PART-26 BS 4464 ASTM B18.21.1 AS 1968 |
IS 3063 DIN 127, DIn 7980/ DIN 6796 BS 4464 ASTM B18.21.1 AS 1668 |
