Weighing Balances

We are a trusted supplier of a variegated range of weighing balances. This category includes stainless steel weighing scale, table top weighing scale, panel mounting scales. Our team of researchers conducts market surveys periodically to ensure that our machines comprise advanced features.

Stainless Steel Weighing Scale

Our range of crane type weighing scale includes heavy duty Stainless Steel Hanging Weighing Scale that has 6V in-built battery backup and auto zero & full range tare facility. Accurate weights get instantly recorded and displayed on 2 inch LED display. It comes with overload protection and auto zero & full range tare facility. This is widely used in poultry, steel & cotton industry.

Table Top Weighing Scale

Our engineers specialize in the manufacture of Table Top Weighing Scale which comprises of a mains fail indication on front panel. The scale has 6V in-built battery backup and operates at 230v 50hz voltage supply. It is compact in design, easily portable and has software calibration.

Panel Mounting Scale

This Panel Mounting Scale operates at 230Vac +/- 10%, 50Hz power supply. It comprises of a 13mm red LED display and a keypad with four tactile keys to enter calibration, configuration, time delay in process, limit settings etc. 5Vdc load cell excitation is supplied through LC-0204 and maximum four load cell of 350 Ohms can be connected in parallel. It has measuring range of 0 to 15mv full load output from load cell. It also has a crystal clock with 5000 to 10000 display resolution and 16 bit internal resolution. This micro controller based weighing scale has sigma delta A to d conversion. This scale has three relay out puts for LO & HI out limit range, within limit range and beyond capacity range to protect load cell from overload. We also manufacture clamp mounting and rail mounting models of electronic weighing scales. These scales have standard bezel size of 144 x 74 x 150 and cutout size of (138 x 66)mm that can vary. These scales come with following options:

• For concerned application input/output port can be provided
• D-10vdc signal conditioner
• Multichannel scanner with RS 485 output

Tank weighing Scale

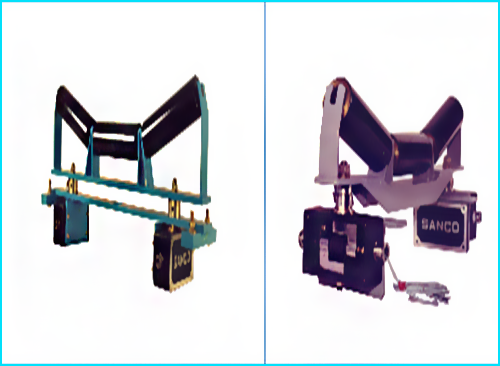

Conveyor Belt Weighing Systems
