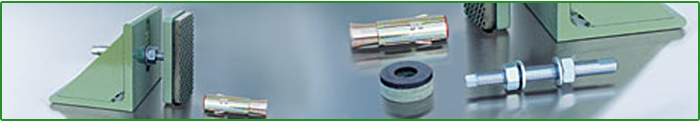

Accessories

Leveling screws (galvanized)
incl. 2 nuts + 2 washers (VA)
For the type series BNV and BNR.
The size of the screws depends upon the size of the hole in the machine foot!

Horizontal elements
Range of application:BILZ horizontal elements are used with machines having high lateral dynamic forces, or where machines are joined with each other and connected side by side.
BILZ levelling elements Type BNV are used as pressure absorbing plates, providing vibration insulation. BILZ horizontal elements can be supplied in 2 different sizes with 1500/2500 daN pressure absorbtion.

Insulating disks for screws head insulation
a. For screws: M 12 / M 20 / M 30
b. outside drilldiameter: 35 mm / 50 mm / 70 mm
c. hole diameter: 13 mm / 21 mm / 31 mm
d. mounting hight: 20 mm / 21 mm / 25 mm
e. max. prestress forcet: 200 daN / 300 daN / 450 daN

Anchor commendation
Heavy duty anchor SL
Fischer anchor R + threaded rod RG
Fischer anchor bolt FAZ
