BExH120 / BExDH120 ‘Hootronic’ Siren
The flameproof BExH120 ‘Hootronic’ Siren is suitable for Zone 1 & 2 applications.
The BExH120D authentically reproduces the traditional sounds of electro-mechanical
devices whilst providing a significantly higher level of performance and reliability.
The BExDH120 variant is also suitable for Zone 21 & 22.
Sound level ouputs are up to 117.5dB(A) at 1 metre with a choice of 5 alarm sounds combining the signalling power of
mutliple electro-mechanical products in one unit.
1. Industrial Hooter
2. High Frequency Mechanical Siren
3. Medium Frequency Mechanical Siren
4. Electro Mechanical Buzzer
5. Mechanical Bell
IS-CP4A/B-BG Break Glass Call Point
The IS-CP4A-BG and IS-CP4B-BG break glass manual call points are approved
for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control
of fire and gas alarm systems. Available with and without monitoring resistors
all versions are certified to ATEX and IECEx standards.
The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413)
aluminium which is phosphated and powder coated.
BExBGL1 L.E.D. Beacon
The flameproof BExBGL1 L.E.D. beacon is suitable for Zone 1, 2, 21
& 22 applications.
With an array of 32 high output L.E.D.s the BExBGL1 unit is a multi-functional beacon suitable for all signalling applications.
The robust construction makes installation in the harshest of environments possible. Additional features include UV stable prismatic lens, stainless steel guard and mounting bracket as standard. Multi-function: The BExBGL1 features
a total of 9 modes of operation: 4 rotating effect modes, 4 flashing modes and a steady mode for use in indicator /status applications. Based on the mode selected the user can also select two alternative L.E.D. modes remotely.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas and an ingress protection of IP66/67.
BExL15 / BExDL15 PA Loudspeakers
The flameproof BExL15 PA loudspeakers are suitable for Zone 1 & Zone 2
applications and the BExDL15 sounders also for Zone 21 & 22.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated.
The re-entrant flare horns are high impact, fire retardant ABS. All models have two M20 cable entries, large termination
areas containing in & out terminals (Ex de version only) and an ingress protection of IP66/67 (Ex d) and IP66 (Ex de).
An independent test report is available on request, or online, detailing the performance of the BEx loudspeaker range.
BExCP3A/B-BG Break Glass Call Point
The BExCP3A-BG and BExCP3B-BG break glass manual call points are
approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire
and gas alarm systems. Available with and without monitoring resistors
all versions are certified to ATEX and IECEx standards.
The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413)
aluminium which is phosphated and powder coated.
BExS120 / BExDS120 Alarm Sounders
The flameproof BExS120 alarm sounders are suitable for Zone 1 & Zone 2
applications and the BExDS120 sounders also for Zone 21 & 22.
Sound level ouputs are up to 123dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages.The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated.
The re-entrant flare horns are high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas containing in & out terminals (Ex de version only) and an ingress protection of IP66/67 (Ex d) and IP66 (Ex de).
For fire applications the BExS120D 24V dc siren is CPD EN89/106/EEC compliant (EN54-3 tested).
IS-CP4A/B-PB Push Button Call Point
The IS-CP4A-PB and IS-CP4B-PB push button manual call points are approved
for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control
of fire and gas alarm systems. Available with and without monitoring resistors
all versions are certified to ATEX and IECEx standards.
The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation.
The product is user resettable by rotating the push button.
The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413)
aluminium which is phosphated and powder coated.
IS-CP4A/B-PT Tool Reset Call Point
The IS-CP4A-PT and IS-CP4B-PT push button, tool reset table, manual call points
are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment
for the control of fire and gas alarm systems. Available with and without
monitoring resistors all versions are certified to ATEX and IECEx standards.
The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation.
The push button is user reset table via the use of the special key supplied with the unit. The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.
ML15 PA Horn Loudspeaker
The ML15 15W PA loudspeaker features a robust, fire retardant, IP66 &
IP67 housing; suitable for harsh environments with high ambient noise levels.
BExCP3A/B-PB Push Button Call Point
The BExCP3A-PB and BExCP3B-PB push button manual call points are
approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire
and gas alarm systems. Available with and without monitoring resistors all
versions are certified to ATEX and IECEx standards.
The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation.
The product is user resettable by rotating the push button.
The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413)
aluminium which is phosphated and powder coated.
BExCP3A/B-PT Tool Reset Call Point
The BExCP3A-PT and BExCP3B-PT push button, tool resettable manual call
points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control
of fire and gas alarm systems. Available with and without monitoring resistors
all versions are certified to ATEX and IECEx standards.
The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation.
The push button is user resettable via the use of the special key supplied with the unit. The BEx range features enclosures
manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coate
BExBG21 Xenon Beacon
The flameproof BExBG21 Xenon beacons are suitable for Zone 1, 2, 21
& 22 applications.
The BExBG21 21 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible. The BExBG21 has three distinct user selectable flash patterns and for units
with DC operating voltages a second stage flash pattern can be selected remotely. Additional features include a stainless
steel guard and stainless steel mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

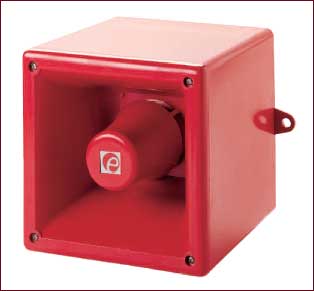

A121 Alarm Sounder
The A121 is a very high output, 126dB(A) alarm sounder. High SPL in a robust, fire retardant IP66 housing ensure the A121 is suitable for all general signalling applications including fire, security and process control.
Features :
L101 5 Joule Xenon
L101H High Output L.E.D.
L101B Filament Lamp Beacon
The L101 is a compact, robust beacon ideal for all general signalling
applications including fire, security and process control. Available with
either a Xenon, L.E.D. or filament lamp light source.
Features:
Approvals:
