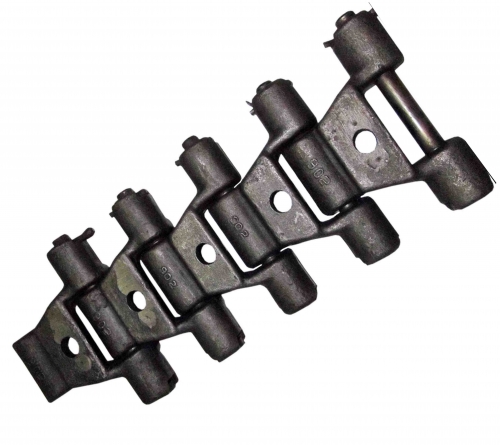

Drop Forged Chain

In Sugar Industry Drop Forged chains are mainly used for Cane feeding applications in Cane washing section .
The construction of this Drop forged chain is such a way that no tool is required for assembly & dis-assembly ,hence it very simple to carry assembly work at site .
Also new sliding surface can be used by changing the position of link after wearing the original surface.Positive lacking action is provided in side links with the forged pins having a double 'T' head on both sides.Similarly for side links worm out surface for Pins can be rotated in 180 degree to use the unworn side of pin in contact with the side bar and center link .
With above flexibility without disturbing the original pitch life of chain is increased .
Alternative sizes are also available on request .
(A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992)

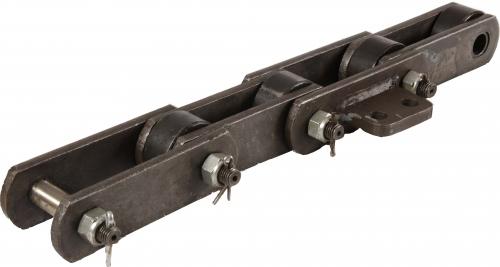

Fabricated Rake Carrier Chain

This type of Fabricated rake carrier/conveyor chain are manufactured with Breaking strength in the range from 20,000 to 80,000 kgf.
Chain links are made from low carbon and medium carbon steel . these links are subjected to the precision machining with their mating parts to Pin and Bush duly heat treated to avoid linear elongation and to get better strength shot pinning is performed for links to improve the fatigue strength .
Pin & Bushes are made from Stainless Steel (Austenitic & Martensitic ) with precision machining followed by through hardening and tempering in case of Martensitic stainless steel to increase wear resistance and then ground finishing are done for perfect fitting (Interference-fit) .
Rollers are made from medium carbon steel duly heat treated then fitted with hardened and tempered linear Bush of Martensitic stainless Steel to avoid corrosion and to increase wear resistance .
Alternative sizes are also available on request .
(A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992)

Forged Rake Elevator

The wide variety of chains are manufactured with Breaking Strength in the range from 20,000 kgf. To 130,000 kgf. Chain links are made from Low Carbon & Medium Carbon Forged Steel. These links are subjected to the precision machining with their mating parts to Pin & Bush duly heat treated to avoid linear elongation & to get better strength. Shot peening is performed for links to improve fatigue strength. Pin & Bushes are made from Stainless Steel (Austenitic & Martensitic) with precision machining, followed by through Hardening & Tempering in case of Martensitic Stainless-Steel to increase the Wear Resistance & then ground finishing is done for perfect fitting.
Alternative sizes are also available on request .

(A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992)

Inter Carrier Chain

The wide variety of Inter carrier chains are manufactured with Breaking Strength in the range from 20,000 kgf. To 130,000 kgf. Chain links are made from Low Carbon & Medium Carbon Forged Steel. These links are subjected to the precision machining with their mating parts to Pin & Bush duly heat treated to avoid linear elongation & to get better strength. Shot penning is performed for links to improve fatigue strength. Pin & Bushes are made from Stainless Steel (Austenitic & Martensitic) with precision machining, followed by through Hardening & Tempering in case of Martensitic Stainless-Steel to increase the Wear Resistance & then ground finishing is done for perfect fitting. Alternative sizes are also available on request.

(A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992)

K-2 attachment / Cane carrier chain

The wide variety of chains are manufactured with Breaking Strength in the range from 20,000 kgf. To 100,000 kgf.
These type of Cane carrier/K-2 attachment chains are commonly used in Sugar Industries.
Chain links are made from Carbon Steel. These links are subjected to operations like Blanking, Piercing & Shaving, which are carried out on highly Précised Presses. Further links are Hardened & Tempered to avoid linear elongation & to get better strength, followed by shot peening to improve the fatigue strength.
Pin & Bushes are made from Low Carbon Alloy Steel with precision machining. Case Carburizing, Hardening & Tempering processes are carried out to increase the Wear Resistance & Core Strength. Then ground finishing is done for perfect fitting.
Rollers are made from Medium Carbon Steel & are subjected to Heat Treatment process to improve the wear resistance.
These chains are also manufactured & supplied in heat-treated Stainless Steel material.
Alternative sizes are also available on request .
(A leading Conveyor Chain Manufacturer,Supplier & Exporter of all type of Roller Conveyor Chains & Slates since 1992)

S-1 Attachment / Feeder table chain / Pusher Chain

The wide variety of chains are manufactured with Breaking Strength in the range from 20,000 kgf. To 60,000 kgf.
These types of Feeder table/S-1 attachment chains are commonly used in Sugar & Steel Industries.
Chain links are made from Carbon Steel. These links are subjected to operations like Blanking, Piercing & Shaving, which are carried out on highly Précised Presses. Further links are Hardened & Tempered to avoid linear elongation & to get better strength, followed by shot peening to improve the fatigue strength.
Pin & Bushes are made from Low Carbon Alloy Steel with precision machining. Case Carburizing, Hardening & Tempering processes are carried out to increase the Wear Resistance & Core Strength. Then ground finishing is done for perfect fitting.
Rollers are made from Medium Carbon Steel & are subjected to Heat Treatment process to improve the wear resistance.
These chains are also manufactured & supplied in heat treated Stainless Steel material.
Alternative sizes are also available on request .
(A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992)

Slates

We are having specialized facility for manufacturing of High quality slates required for Cane carrier chain, Inter carrier chain , Bagasse carrier chain and Other special applications for Material handling .
Our slat profile are accurately formed for proper overlapping on 600 ton capacity heavy duty hydraulic presses .
SWAJIT Slates are easy for interchangeability & replacement.
Slate holes are precisely punched to suit chain attachments .
Our press capacity is to press 3 mm to 8 mm thick mild steel plate on hydraulic press-brake in one stroke , gives uniform shape in overall length .
Alternative sizes are also available on request .
(A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992)

Sugar Bag Stcaker Chain

These types of chains are used in stacking of sugar bags .
Different type of pitch is maintained as per stacker construction .
These chains are robust in design as these are working under high speed comparatively .
Alternative sizes are also available on request .
Alternative sizes are also available on request . (A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992)

AS-2 attachment / Bagasse Carrier Chain

The wide variety of Conveyor chains are manufactured with Breaking Strength in the range from 20,000 kgf. To 100,000 kgf.
These Bagasse Carrier chains are commonly used in Sugar Industries, to convey or feed Bagasse to either Boiler or to storage point.
Chain links are made from Carbon steel. These links are subjected to operations like Blanking, Piercing & Shaving, which are carried out on highly Precised Presses. Further links are Hardened & Tempered to avoid linear elongation & to get better strength, followed by shot penning to improve the fatigue strength.
Pin & Bushes are made from Low Carbon alloy steel with precision machining. Case Carburizing, Hardening & Tempering processes are carried out to increase the Wear resistance & Core strength, Then ground finishing is done for perfect fitting.
Rollers are made from Medium carbon steel & are subjected to Heat Treatment process to improve the wear resistance.
These chains are also manufactured & supplied in heat treated Stainless Steel material, with 2C flights as per requirement & normally called as A42 or AS2 Attachment chains.
These chains are also manufactured & supplied in heat treated Stainless Steel material, with 2C flights as per requirement & normally called as A42 or AS2 Attachment chains.
Return Bagasse Carrier Chain (RBC)
Main Bagasse Carrier Chain (MBC)
Bagasse Elevator Chain (BEC)
(A leading conveyor chain Manufacturer, Supplier & Exporter of all types of Roller conveyor chains, Transmission chains & Slats since 1992.)

Suger elevator chain

These type of chains are used for elevating Sugar to Storage system before packing. These chains are available with different type of Attachments as per Customer requirement.
