Multi Spindle Drilling Machines
- This Machine is designed for drilling more than 1 holes in pipe at given CD with given accuracy with the help of multiple number of motors.
- Hydraulic dampers are attached to control drilling feed accurately.
- Automatic Start - Stop of spindle motor through pressure switch.
- Reduces production time.
- Clamping attained by pneumatic cylinders strategically placed below work-table.

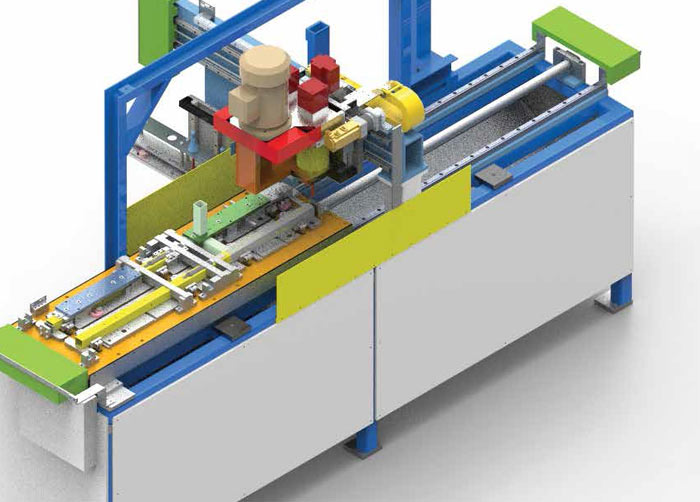

Linear Drilling Machines
- Designed for various drill sizes and tube lengths
- Processes 2 jobs at a time
- For drilling in Square Tubes as well as Round tubes
- This machine is designed for Square tubes used in chassis building
- Drilling motor speed is automatically selected depending on Tube and Drill dimensions
- Self-centralizing Clamping System

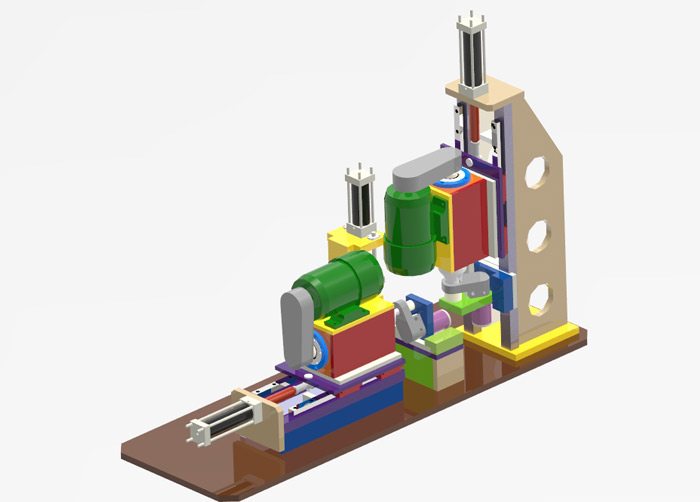

Fine Boring Machine
- This machine is used for fine boring of auto components normally welded sheet metal assemblies where high accuracy is required after welding
- This machine consists of two boring heads in front of each other which are driven by separate induction Motors
- Feed of head achieved through hydraulic cylinders with micro adjustment
- Inbuilt Automatic self-lubrication system
- Proper clamping of component is attained through highly rigid hydraulic clamps
Flow Drilling Machine
- Flow drilling is method of making holes in which material is pushed out of the way with the aid of heat from friction.
- It is also known as Friction Drilling

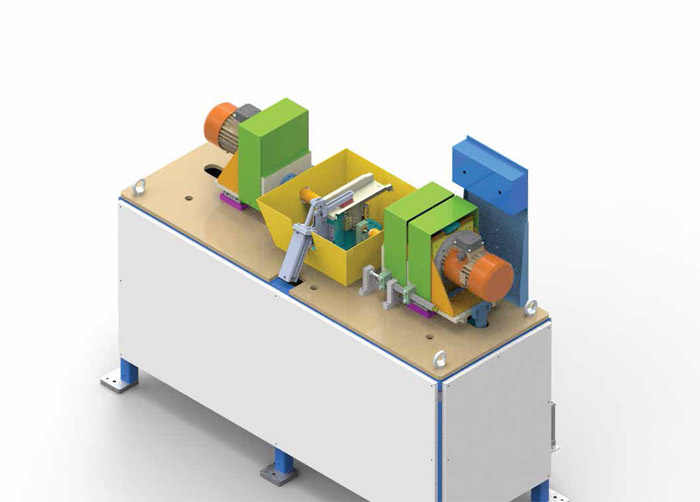

Double Head Drilling Machine
- Used for welded sheet metal component
- Two heads facing each other are used to attain concentricity in hole
- Pneumatic cylinders used for quick rapid feed
- Drilling Feeds are controlled through hydraulic speed control unit
- Cycle time as low as 30 second

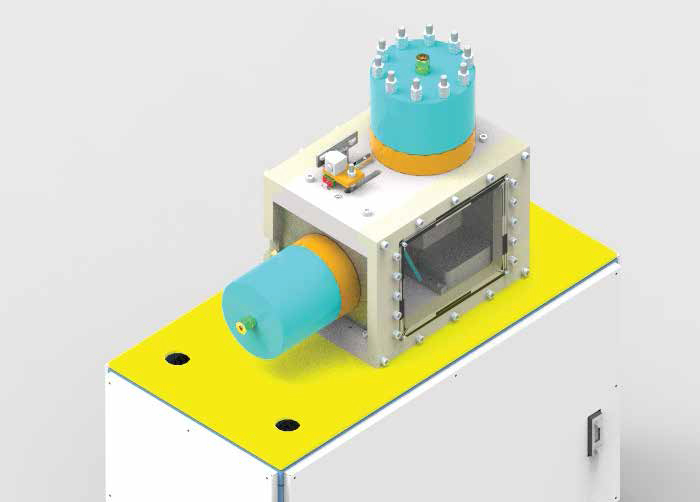

Cold Forming Machine / Cold Forging Machine
- Used for forming of rods as well as pipes.
- Steel Rods up to Ø 12 mm and pipes up to Ø 30 mm can be forged.
- Special quick change-over dies made up of high rigidity tool steel materials.
- Repeatability of machine is ensured to 50 µ
- Cycle time of 10 sec can be achieved for forging the component

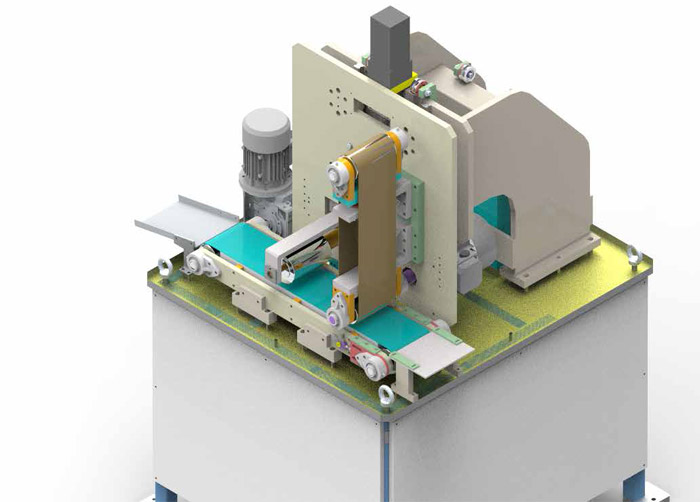

Deburring Machine
- Deburring operation is very important on any component
- We manufacture deburring machines s pe requirements e.g. Deburring machine for a specific component / Gear deburring machine

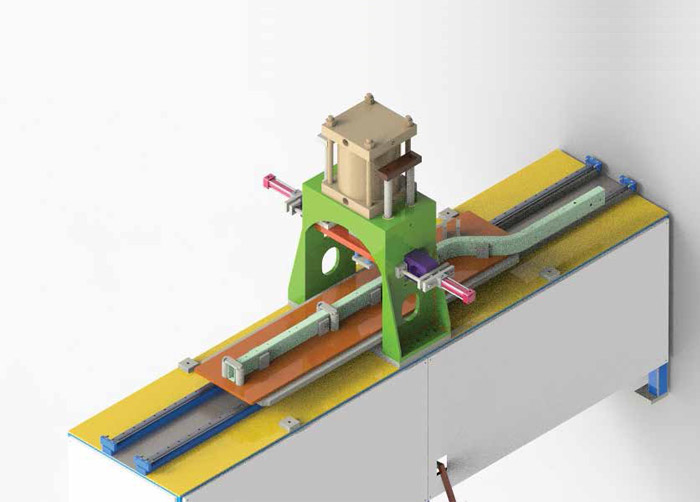

Nail Piercing Machine
- We are offering a comprehensive range of Nail Spotting Machine which is a special designed nail spotting machine used for manufacturing various types of discharge electrodes.
- These are widely known for its special features such as sturdy construction, high performance, user-friendly operation, longer service life and cost effectiveness.
- this machine is high in demand in diverse industries.
