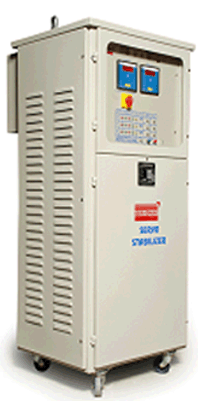

Servo Stabilizer (Air-cooled)
SERVO CONTROLLED VOLTAGE STABILIZERS ARE AVAILABLE IN FOUR MODELS
- PS analog meter
- DPM digital meter
- DPS digital control
- DCM DC motor control for high speed of correction
| CAPACITIES : | 1) 0.5 KVA to 40 KVA I PH 2) 1.5 KVA to 200 KVA 3 PH |
| SPECIFICATIONS : |
| Input Voltage Range | 170 V – 240 V AC 50 Hz 1 PH 300 V – 460 V AC 50 Hz 3 PH |
|
245 V- 460 V AC 3Ph
340 V- 460 V AC 3Ph 360 V- 460 V AC 3Ph other ranges as per requirement |
| Output Voltage | 240 V AC 1 Ph 50 Hz 380 V / 400 V/ 415 V AC 3Ph 50 Hz |
| System | Unbalanced 4 Wire : R Y B N |
| Output Voltage Regulation | ± 1% |
Application
Servo stabilizers are generally for industrial use but can be use but can be use in domestic too.
For example in air comditioners.In Industries they are generally used where regular problem of voltage fluctuation is there to protect mostly expensive machines.
