Drift Eliminators

Home
Our Products

Drift eliminators are used to capture water droplets in the air stream that otherwise would be lost to the atmosphere. Entrapping these droplets is important for not only conserving water as a resource but also to prevent cooling tower water from contaminating the area peripheral to the cooling tower. The cooling tower industry uses drift rate to compare drift eliminator performance, a relationship that correlates droplet capture efficiency to the water circulation rate in a tower. The drift eliminator is one of the cooling tower parts it is used to minimize the amount of process water loss within the cooling tower for resource usage efficiency as well as keeping an eye on environmental concerns. SUPER PLAST drift eliminators are specifically designed to achieve maximum drift removal efficiency in both crossflow and counterflow tower applications with various product options available to minimize pressure drop, drift loss, cost, or a combination of all three.

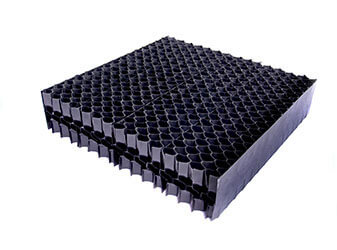

Celular Drift Eliminator

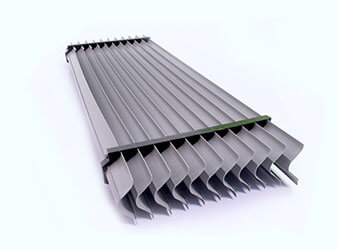

SP-100 Drift Eliminator

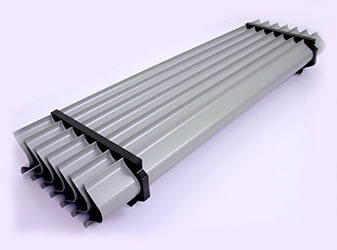

SP-146 Drift Eliminator

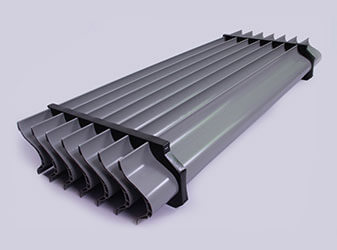

Double Wall Drift Eliminator

Characteristics	DrifEl146	SP100	SP-14645	SP 14656	SP-S130	SP-S145
Type Of Structure	Extruded Double wall	Extruded single walled	Extruded single walled	Extruded single walled	Cellular	Cellular
Maximum Face Velocity	5.0 m/sec	4.5m/sec	4.5m/sec	4 m/sec	4.5 m/sec	4.5 m/sec
Module Length	Any	Any	Any	Any	Can be chosen in 600-mm increments	Can be chosen in 600-mm increments
Module Width	Any	Any	Any	Any	Can be chosen in 600-mm increments	Can be chosen in 600-mm increments
Distance Between Profiles	56.5mm	36.5mm	45mm	56mm	20mm	20mm
Recommended spacing between supports	2000mm	1500mm	1500mm	1500mm	800mm	800mm
Average Weight	8.15 kgs/m2	6.6 kgs/m2	7.2 kgs/m2	6.3 kgs/m2	7.6 kg/m2	8.5 kgs/m2
Surface area per unit volume	M²/m³ ft²/ft³	250 76	158 48	147 45	120 36	158 48
Drift loss limit	0.003%	0.05%	0.005%	0.1%	0.001%	0.0005%
