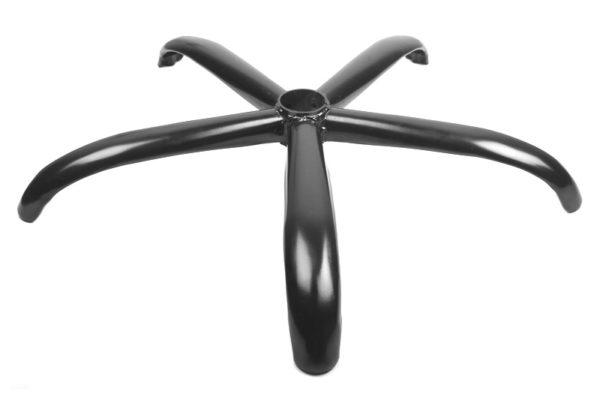

Starbase Sigma
Part name : Star base Sigma
This metal base was designed and developed completely In-house by Surya's team of dedicated engineers. Available in 620 mm dia with satin black powder coated as well as nickel chrome plated finish. Trendy looking Central plastic cap to cover weld joints available on request. Centre taper of the base is suitable to accommodate standard 50.8 dia gas spring. Castor bushes welded to the base are suitable to accommodate standard 11 mm pin type castors.
| Part No. | A | B | C | D | Finish |
| 0SB03APC01 | 620 | 75 | 50.8 | 11 | Powder Coated |
| 0SB03ACP01 | 620 | 75 | 50.8 | 11 | Chrome Plated |

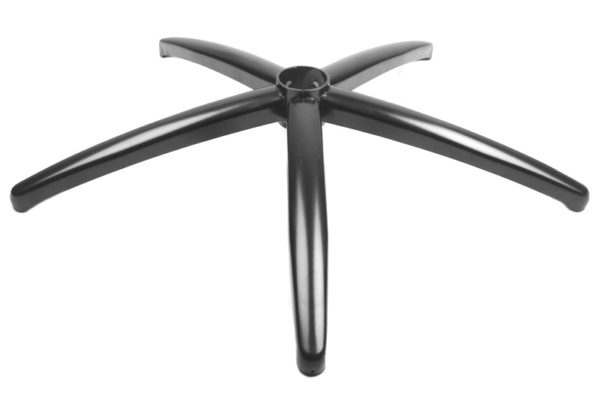

Starbase Zeta
Part name : Star base Zeta
This was the first metal base designed and developed completely In-house by Surya's team of dedicated engineers around two decades ago.
Available in 600 mm dia with satin black powder coated as well as nickel chrome plated finish.
Trendy looking central plastic cap to cover weld joints available on request.
Centre taper of the base is suitable to accommodate standard 50.8 dia gas spring.
Castor bushes welded to the base are suitable to accommodate standard 11 mm pin type castors.
| Part No. | A | B | C | D | Finish |
| 0SB07APC01 | 600 | 100 | 50.8 | 11 | Powder Coated |
| 0SB07ACP01 | 600 | 100 | 50.8 | 11 | Chrome Plated |

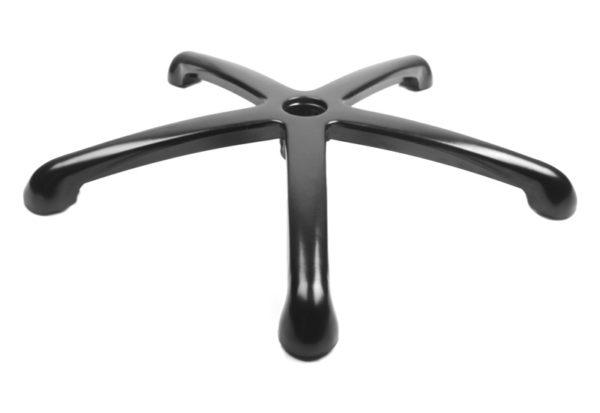

Star base Nirmal
Part Name : Star base Nirmal
This metal base was designed and developed completely In-house by Surya's team of dedicated engineers.
Available in 600 mm dia with satin black powder coated as well as nickel chrome plated finish.
The chrome plated base is manufactured in a unique two tone finish with bottom structure in satin black and top cover in glossy chrome.
Centre taper of the base is suitable to accommodate standard 50.8 dia gas spring.
Castor bushes welded to the base are suitable to accommodate standard 11 mm pin type castors.
| Part No. | A | B | C | D | Finish |
| 0SB06APC01 | 600 | 75 | 50.8 | 11 | Powder Coated |
| 0SB06ACP01 | 600 | 75 | 50.8 | 11 | Chrome Plated |

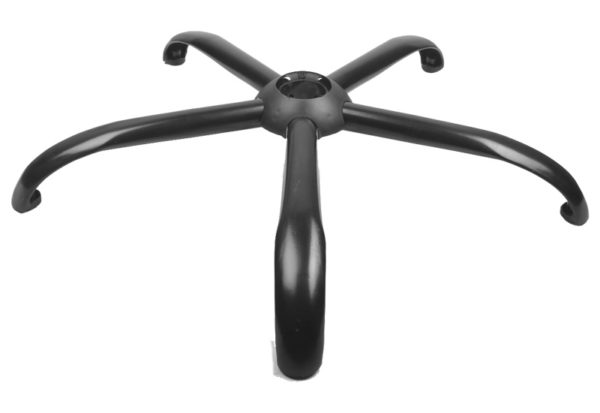

Star base Diva
Part Name : Star base Diva
This metal base was designed and developed completely In-house by Surya's team of dedicated engineers.
Available in 600 mm dia with satin black powder coated as well as nickel chrome plated finish.
Central plastic cap to cover weld joints available on request.
Centre taper of the base is suitable to accommodate standard 50.8 dia gas spring.
Castor bushes welded to the base are suitable to accommodate standard 11 mm pin type castors.
| Part No. | A | B | C | D | Finish |
| 0SB10APC01 | 600 | 100 | 50.8 | 11 | Powder Coated |
| 0SB10ACP01 | 600 | 100 | 50.8 | 11 | Chrome Plated |

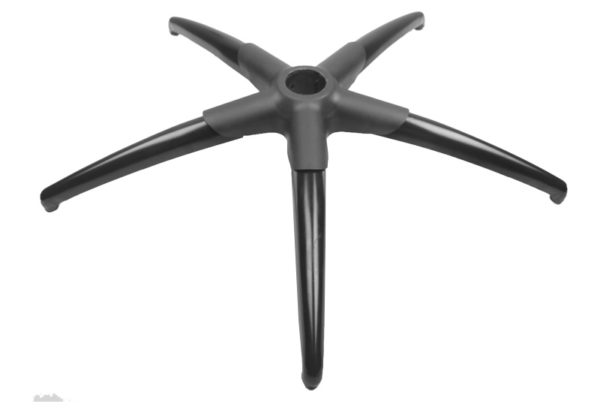

Star base Beta
Part Name : Star base Beta
This metal base was designed and developed completely In-house by Surya's team of dedicated engineers.
Available in 660 mm dia with satin black powder coated as well as nickel chrome plated finish.
Two types (small & big) of central plastic cap to cover weld joints available on request.
Centre taper of the base is suitable to accommodate standard 50.8 dia gas spring.
Castor bushes welded to the base are suitable to accommodate standard 11 mm pin type castors.
| Part No. | A | B | C | D | Finish |
| 0SB02BPC01 | 660 | 100 | 50.8 | 11 | Powder Coated |
| 0SB02BCP01 | 660 | 100 | 50.8 | 11 | Chrome Plated |

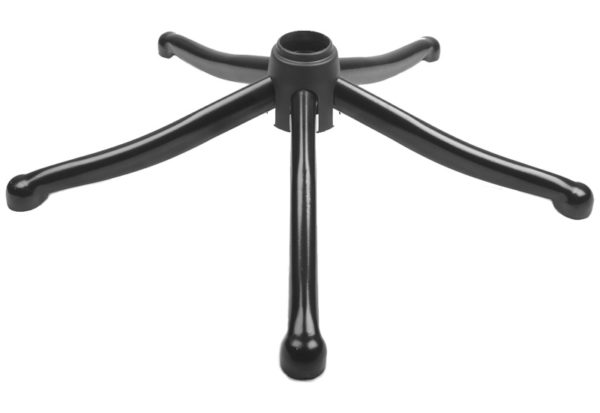

Starbase Magna
Part Name : Star base Magna
This metal base was designed and developed completely In-house by Surya's team of dedicated engineers.
Available in 600 mm & 660 mm dia with satin black powder coated as well as nickel chrome plated finish.
Central plastic cap to cover weld joints available on request.
Centre taper of the base is suitable to accommodate standard 50.8 dia gas spring.
Castor bushes welded to the base are suitable to accommodate standard 11 mm pin type castors.
| Part No. | A | B | C | D | Finish |
| 0SB12APC01 | 660 | 125 | 50.8 | 11 | Powder Coated |
| 0SB12ACP01 | 660 | 125 | 50.8 | 11 | Chrome Plated |
| 0SB12BPC01 | 600 | 125 | 50.8 | 11 | Powder Coated |
| 0SB12BCP01 | 600 | 125 | 50.8 | 11 | Chrome Plated |
