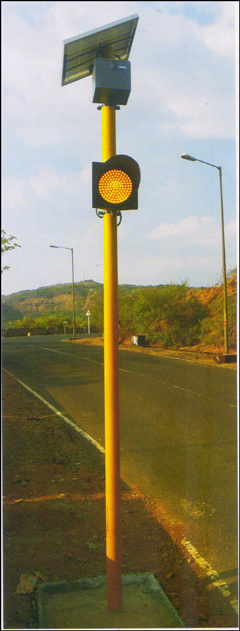

Solar Traffic Signal Blinker
The Solar Powered Traffic Signal Blinkers are manufactured by using superior quality raw material & are know for their uninterrupted operation and self generated power.
The whole assembly includes Solar Panel, Frames for Solar Panel, Traffic Signal Blinker, Wire Harness, Charge Controller, Battery , Battery Box , Signal Pole etc. Once installed Solar Traffic warning Blinker lasts for many years. These blinkers are available for Dusk to Down operation or 24 hours operation.
| SR.NO. | SPECIFICATION | DETAILS |
| 1 | Blinker Size | 300mm (12 inch) & 200mm(8 inch) |
| 2 | Body | Molded, Black Polycarbonate, Suitable for Extreme Weather conditions |
| 3 | Lens | U.V. Stabilized, Transparent Polycarbonate |
| 4 | Gasket | Rubber Gasket for Sealing between Lens & Signal Unit |
| 5 | Color | Red/ Amber/ Green |
| 6 | PCB Used | 1.5 mm thick , Glass Epoxy for Power Supply / LED Display |
| 7 | LED Used | Ultra Bright , Water clear |
| 8 | Viewing Angle | 24 Degree for LED’s |
| 9 | No of LEDs | 176 LED (300mm), 140 LED (300mm) (Power Saver Model), 96 LED (200mm) |
| 10 | Charge Control Unit (CCU) | Built in Type , helps to protect battery from deep discharging as well as overcharging . Also protect Panel from Reverse Voltage. |
| 11 | Solar Panel | 12 volt , Wattage as per requirement |
| 12 | Battery | (SMF) Sealed Maintenance Free Type |
| 13 | Wire Harness | For making all connection easily and correctly |
| 14 | Clamps | For Mounting traffic signal , battery box & solar panel |
| 15 | Pole | Dia. 3”or 4”, Height 4 to 6mt., Gl or MS |
| 16 | Working Voltage | 12v DC |
| 17 | Power Supply | Total Solid State electronic Circuitry |
| 18 | frequency | 30 to 40 Flashes Per Minute as desired |
| 19 | Operation | 24 Hours or 12 Hours (Dusk to Down) |
| 20 | Control Card | in built & solid State |
| 21 | Power Factor | >0.9 |
| 22 | Visibility | 500 Mts,. Good even during bad Weather |
| 23 | Certification | IP 65, ISO 9001 : 2008 |
