Model	PP40	PP45	PP50	PP55	PP65
Lay Flat (mm)	25-300	75-400	100-500	15-600	250-700
Film Thickness (Micron)	20-75	20-75	20-75	20-75	20-75
Max Output (Kg/hr.)	30	40	50	60	80
Screw Dia (mm)	40	45	50	55	65
L/D	26	26	26	26	26
Gearbox	Helical	Helical	Helical	Helical	Helical
Main Motor	5HP(960 RPM)	7.5HP(960RPM)	10HP	15HP	20HP
Heating Zone	2	2	3	3	3
Die Type	Spiral	Spiral	Spiral	Spiral	Spiral
Die (mm)	150	200	250	300	400
Filter	Candle	Candle	Candle	Candle	Candle
Nip Roller	400	500	650	700	850
Sizer Ring	2 PC	2 PC	2 PC	2 PC	2 PC
Connected Load (Kw)	13	16	20	23	28
water Required	1200 Lt./Day	1200 Lt./Day	1400 Lt./Day	1400 Lt./Day	1400 Lt./Day
Installation Area (LXWXH) (ft)	15x10x9	15x10x10	15x10x11	15x10x12	15x10x13

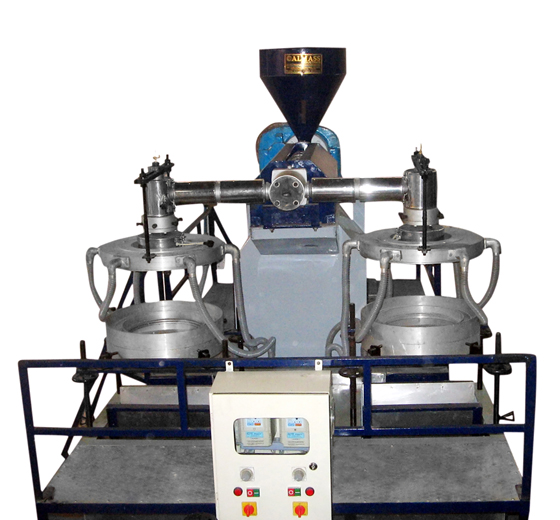

Optional	Double Die, Rotary Die, Auto Hopper Loader, Chiller, Corona Treater, 4 Station Winder

ApplicationFilm Plant

• Garment& Textile Packing
• Hosiery Product Packing
• Bakery Product Packing (Bread, Cake, Buns, etc.)
• Vegetable & Fruit Packing
• Table Cover

Note:

We reserve the rights to modify, alter or change any specifications which are subjected to change without notice in this quotation; we are constantly improving the design.
