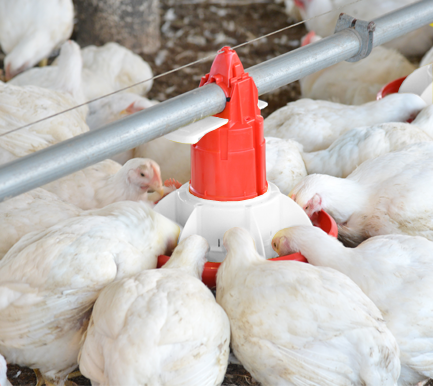

Dhumal's EzyPan is the only feeder pan in the world which can adjust its height as well as diameter according to the age of the bird. It offers unique advantages such as usage from day one, Best FCR, stimulating feed consumption and simple & easy cleaning.
The EzyPan Feeding System with centralized feed level adjustment represents a major technological innovation. This helps in minimizing feed waste and labour, and helps maintain excellent hygienic conditions for the birds.
This EzyPan Feeding System has been designed to feed day old chicks without the need for supplementary feeders — because of the formation of a plentiful cone of feed and a pan with a height of only 7.5 cm. Day old chicks can eat easily.
The only feeder pan in the world that can adjust its height as well as diameter according to the age of the bird. Let the game changer feeder pan do the talking — Boost your Productivity.
Feed retaining arches from day 3 onwards prevent the chicks from getting into the pan — preventing feed contamination and caking. A winch changes plentiful supply of feed for young chicks to controlled feeding for the remainder of the growing period, with only one movement for the entire line.
From day 3 onwards, arches prevent chicks from getting into the pan — keeping feed free from contamination and caking.
Changes plentiful feed supply for young chicks to controlled feeding — with only one movement for the entire line.
Specially designed arches encourage birds to feed from the centre of the pan — a vital consideration in preventing feed wastage.
The feed level can be easily changed using the regulator ring, which offers 3 setting options.
A final precaution — a 4 mm waste lip inside the rim of the pan prevents any actual spillage of feed.
Minimizes feed waste and labour while maintaining excellent hygienic conditions for the birds.
A pan with a feed quantity regulator and adjustable grill.
| EzyPan V2 | Specification |
|---|---|
| Capacity | 50 – 60 Broilers |
| Feed | 1.5 kg |
| Usage | From Day 1 to Maturity |
| Diameter (grill up) | 312 mm |
| Height of Trough (grill up) | 50 mm |
| Diameter (grill down) | 325 mm |
| Height of Trough (grill down) | 75 mm |
Smaller diameter and low height of the pan allows the chicks to reach the entry point of the feed. It stimulates the natural instinct of the birds and enhances consumption of feed in the first week.
Pan is winched down to floor level for day-old chicks.
Plentiful cone of feed at just 7.5 cm height — chicks eat easily.
Retaining arches keep birds out of the pan from day 3 onwards.
Avoids cross-contamination and keeps feed hygienic & fresh.
The control unit's low volume ensures frequent operation of the feeding system. Thus birds are stimulated for more feed consumption.
Attract the birds towards the control pan.
Easy access to feed ensures chicks get an early start and gain weight faster in the growth cycle.
The removable cone allows collection of unused feed and proper cleaning after each flock.
Each pan contains 1.5 kg of feed — important in cases of electricity cut-offs, guaranteeing up to 6 hours of feeding without electricity.
EzyPan is produced with the same high quality standards and materials as the reputable DHUMAL Bell drinkers — ensuring long product life, resistance to weather conditions and strong disinfectants.
