Easy-To-Use, UV Stabilized & 100% Waterproof Curtains For Poultry Houses

Curtain Winching System For Poultry Houses

Protect Your Birds From Sun, Rain & Harsh Winters

Curtains protect the birds from direct sunlight, rain and harsh winter conditions
Helps maintain the inside temperature during the brooding period
Made from special HDPE woven fabric consisting of five layers, laminated on both sides
UV stabilized to avoid the harmful effect of UV rays
Five layers joined using a special electronic welding process — gives a 100% waterproof joint
Reinforced with Nylon ropes on all four sides with eyelets for optimized quality
Winching system assists labourers to raise or lower the curtain with ease and simplicity

Dhumal curtain winching system for poultry houses with UV stabilized HDPE woven fabric curtains for easy raise and lower operation

Curtain Winching System for poultry houses, designed for easy-to-use operation with UV stabilized curtains, offering durable and waterproof poultry curtains for enhanced poultry house ventilation.

Quality Build

Winches, Pulleys & Accessories

Dhumal winch, stainless steel pulleys and J hooks for curtain winching system — powder coated steel with unique locking mechanism

Winches made from the best quality steel, powder coated to prevent rusting
Unique locking system — curtains can be winched to the desired height without reverse fall back
Small pulley made from stainless steel; big pulleys made from M.S. with nickel coating
3 mm dia. and 5 mm dia. wire ropes run on the pulleys respectively
Both pulleys fitted with the help of 'J' hooks
25 mm dia. M.S. pipe runs through the length of the curtain
One winch can raise or lower a curtain around 200 feet in length

Special Poultry Curtain

Multi Layered & Cross Laminated UV Stabilized Polymer

Unmatched strength with the assurance of 100% waterproofing
Heat sealed joints guarantee no leakage whatsoever
All-weather proof — withstands tough climatic extremes
Specially UV treated to resist radiation; inert to most chemicals and acids
Excellent tensile strength, tear and puncture resistance — withstands sharp edges and blunt objects
High elongation and flexibility enables draping over odd shaped objects

Curtain Winching System for poultry houses, designed for easy-to-use operation with UV stabilized curtains, offering durable and waterproof poultry curtains for enhanced poultry house ventilation.

Options Available

Colours & Curtain Weights

Available Curtain Colours

Colour Option
Silver Gray
Blue
Black
White

2 Curtains Available

Curtain Type	Specification
Option 1	200 GSM UV Stabilized Cross Laminated
Option 2	500 GSM UV Stabilized Cross Laminated

One Stop Solution For All Your Poultry Equipment Needs

Installation

For a shed size of 200 × 30, two winches are required on each of the open side
Four big pulleys (two on each side) welded with the help of 'J' hooks at the two ends of the shed / chain link
A small pulley welded at every 10–12 feet on the top, about 3 inches from the wall / chain-link
The 5 mm dia. wire rope is carried from the big pulley to the other end and tied to the curtain itself
With the help of 'U' clamp, connect the 3 mm wire to the 5 mm wire rope and tie the other end of the wire to the curtain

Easy-to-install Curtain Winching System for poultry houses, offering waterproof, UV stabilized curtains that ensure proper ventilation and climate control for poultry farming.

Technical View

Diagram

Close-up view of the Curtain Winching System parts, designed for seamless poultry curtain installation — winch, pulleys, wire ropes and hooks arranged for optimal performance and durability in poultry house ventilation.

Close-up of Curtain Winching System parts, designed for seamless poultry curtain installation, ensuring optimal performance and durability for poultry house ventilation.

Proven In The Field

On Site Implementations

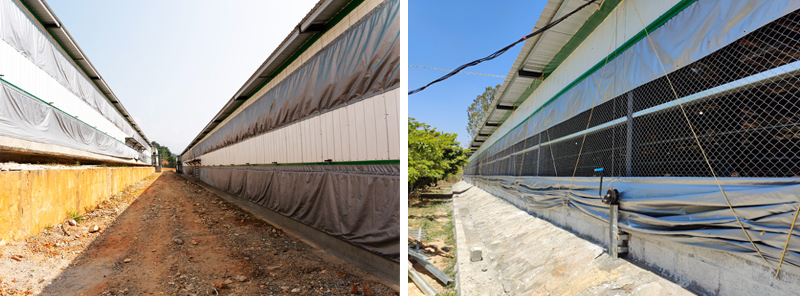

See the Curtain Winching System in action on real poultry farms — equipped with HDPE woven fabric curtains providing tear-resistant, all-weather protection for improved poultry farm conditions.

Step-by-step poultry curtain installation with winching system
UV stabilized, waterproof curtains for reliable performance in all weather conditions
Easy-to-use, tear-resistant curtains designed for efficient poultry house ventilation

Curtain winching system installed on poultry farm shed with HDPE woven fabric curtain providing all-weather protection

Poultry curtain installation using Curtain Winching System, showcasing the easy-to-use, tear-resistant, and waterproof poultry curtains designed for efficient poultry house ventilation.
