Post-Forming Machine :

The post forming machines manufactured by our company are not only cost effective but are also easy to install and maintain. This machine has an innovative technology to heat the heater bar at different temperatures for different range and quality of laminates. Precision engineered using cutting edge technology; these machines are known amidst our clients for their capability to enhance the post forming in modular furniture industry. Our durable and heavy duty post forming machines are known for offering hassle free performance.

Features :

Variable heater bar temperature for different range/quality of laminates.
Fully automatic & manual controlled electric panel.
Postforming length can be adjusted.
Hard crome plated heater bar for smooth operation & long life.
Adjustment for production type jobs.
Provision for Full round / Half round jobs.

Technical Specifications :

Max. length of workpiece : 2500 mm
Min. length of workpiece : 300 mm
Max. thickness of workpiece : 100 mm
Min. thickness of workpiece : 16 mm
Min. width of workpiece : 150 mm
Compressed air supply : 30 LPM at 6 bar
Total power : 3kw, 3 Phase, 415 V

Edge Banding Machine :

We offer a wide range of technologically advanced edge banding machines. These are used for gluing edges of PVC/ABS on straight or shaped panels. These banding machines are capable of catering banding needs of modular furniture business. Our edge branding machines are characterized by their rugged construction and simple functions.

Features :

Minimum Controls.
Any one can operate, no skilled worker required.
Zero maintenance.
Available in electrical model.
Available in 3 phase & single phase. .

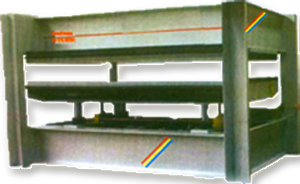

Hydraulic Hot Press :

Standard Features :

Top & bottom heating.
Fully automatics & manual controlled electric panel.
Working pressure can be adjusted according to job size.
Aluminum material for heating properly & fastly.

Technical Specifications :-

Max.size of workpiece : 2500 x 1300 mm
Total Pressure : 100 ton
No. of Hydraulic cylinders : 4 nos
Machine Dimensions : 2900 x 1650 mm
Max. Operating pressure : 250 bar
Total power : 20 kw
Weight : approx. 8000 kg
