• Powerful ARM controller based CPU.
• Suitable for all types of pneumatic and hydraulic presses.

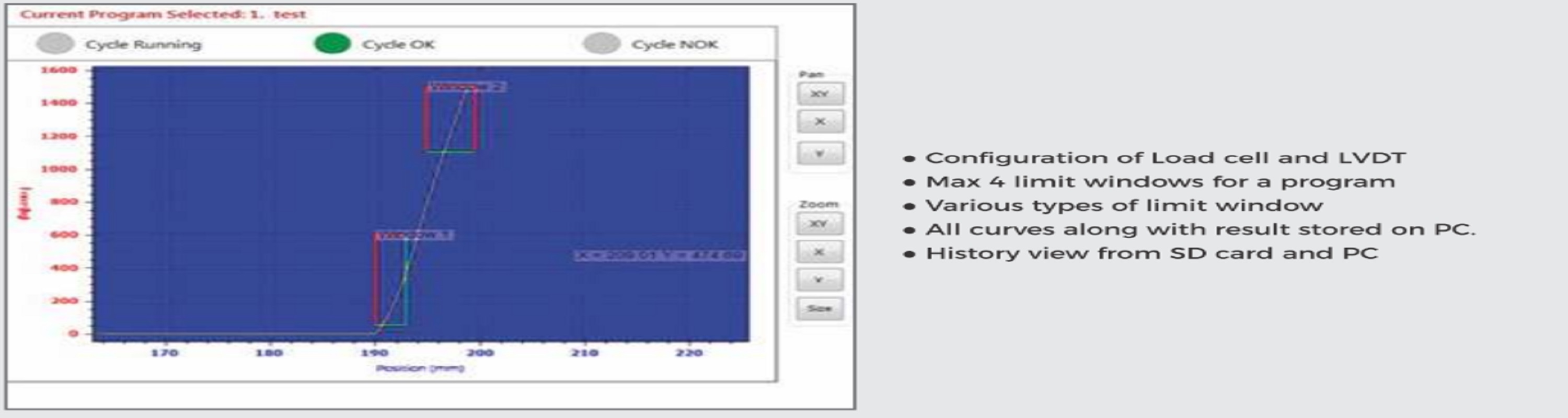

• Force x displacement graph monitors through various limit windows.
• Data storage on SD card.
• 5000 samples/sec for load cell and displacement signals.
• LCD display - current position and force, selected program name, result of press cycle(final position and force), job counter.

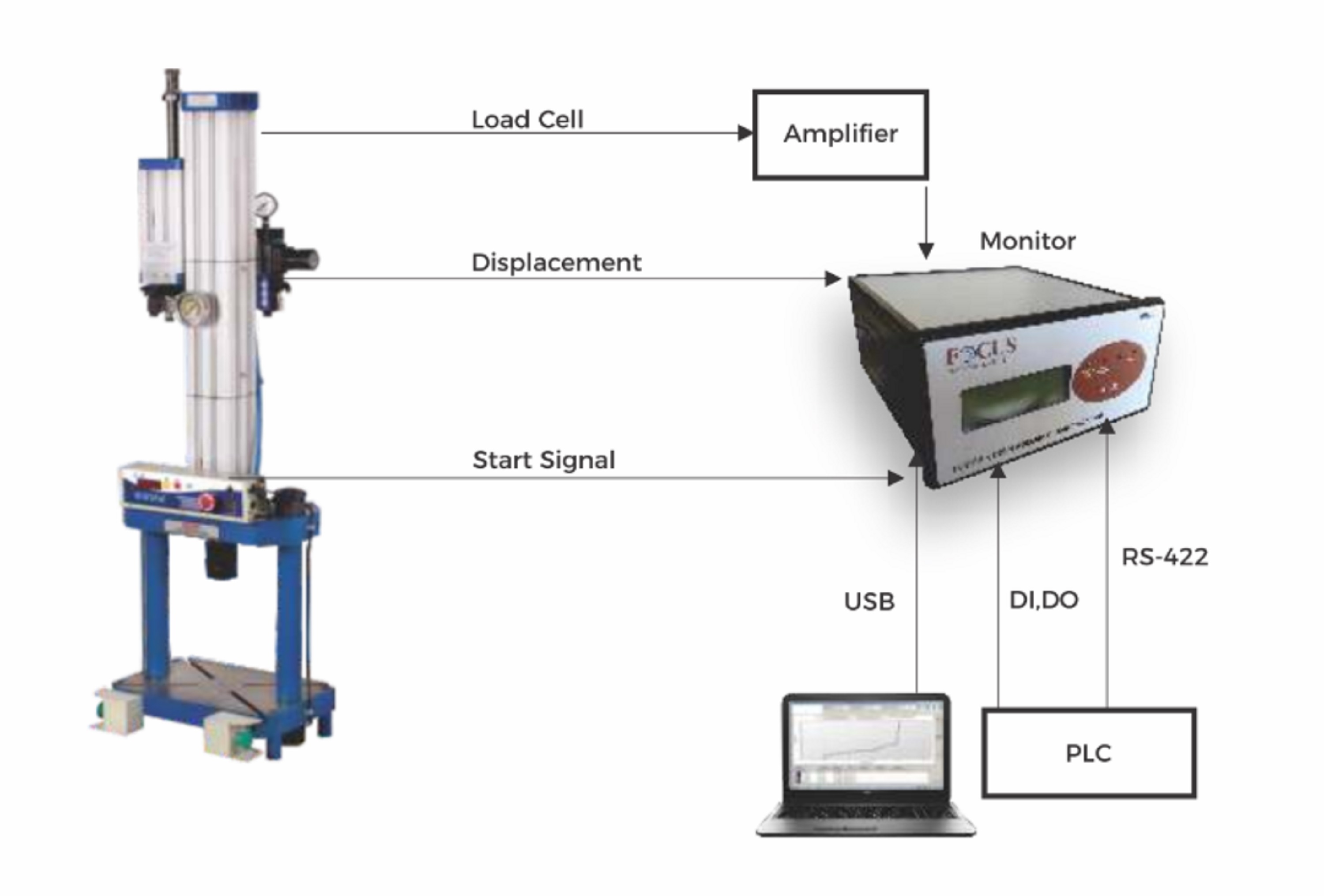

• Interface - analog input(0-10v) for load cell. 24 bit resolution, analog input(0-10v) for LVDT. 24 bit resolution, 8 no. of digital input and output for PLC control, Rs-422 for data communications with PLC and USB for programming and configuration.
• LEDs provided on front for result display.
• Beeper for ok signal.
• Configuration of load cell and LVDT.
• Max 4 limit windows for a program.
• Various types of limit window.
• All curves along with result stored on PC.
• History view from SD card and PC.
Contact Person:
Mr. Avinash Bokil
Address:
Shed no. 1655, S.no. 10/5/2, Ghule Industrial Estate, Nanded Gaon, Off Sinhagad Road, Pune - 411041 (Maharashtra)
Phone:
+ 91-7350002855
Email:
avinash.bokil@focusautomation.in
Year of establishment 2011, Focus Controls Pvt Ltd is engaged in manufacturing a wide range of Servo Press, Monitoring System, CNC Press Machine, Hydraulic Press, Electric Servo Press, Bearing Press, Bush Press, Assembly Press, Valve Seat Press, Valve Guide Press, Pressing Force Monitors, Press Control System, Spring Testing Machine, Force Vs Displacement Graph, etc.
