Copper Beryllium is used in a variety of applications as they provide a combination of good strength and conductivity. However, Beryllium being a strategic material and available in few countries, the cost of Copper Beryllium has significantly gone up over the years. Furthermore Beryllium and its alloys have significant hazards to health. With QTi alloys all the potential application of CuBe can be replaced with QTi alloys with certain trials and application specific requirement.
| Tensile Strength | Yield Strength, MPa | % Elongation | % I.A.C.S | Hardness (Hv) | |
|---|---|---|---|---|---|
| QTi 110 | 510-530 | 340-360 | 22% | 26% | 200 |
| QTi 120 | 670-680 | 450-470 | 20% | 18% | 270 |
| QTi 140 | 880-900 | 690-710 | 18% | 11% | 330 |
| QTi 145 | 1250-1300 | 1100-1150 | 4% | 22% | 400 |
| QTi 150 | 940-920 | 780-800 | 5% | 11% | 360 |

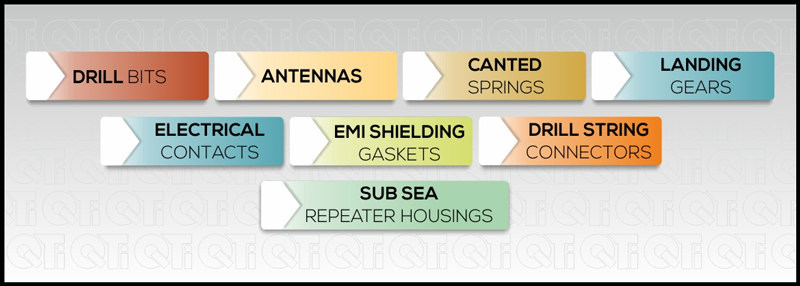

Pahwa Metal is committed to develop the below application with QTi alloys for its customers and provide complete support to make products economical and free from hazards of beryllium.
