Industrial Series

H.P. Water Jet Cleaning System Range 30 to 275 Bar STANDARD SERIES

Model	Pressure in bar	Flow Rate LPM	RPM	Powre KW/HP	Power Supply	L.W.H.	Weight
PE-LW-3020S-30	30	11	1440	1.5/2	230/415 V 50 HZ.	900X320X900	35 kg
PE-LW-3030S-90	90	11	1440	2.2/3	230/415 V 50 HZ.	900X320X900	35 kg
PE-LW-K2020E	150	8	1440	2.2/3	230/415 V 50 HZ.	675X360X490	35 kg
PE-LW-3030S-150	150	11	1440	3.1/4	415 V 50 HZ.	900X320X900	35 kg
PE-ZW-4030S	200	15	1440	5.5/7.5	415 V 50 HZ.	900X650X1160	110 kg
PE-FW24030S	275	15	1440	7.5/11.5	415 V 50 HZ.	900X350X1100	125 kg

---

H.P. Water Jet Cleaning System Range 250 to 500 Bar PREMIUM HEAVY DUTY SERIES

Model	Pressure in bar	Flow Rate LPM	RPM	Powre KW/HP	Power Supply	L.W.H.	Weight
PE-RW5530S	200	21	1440	7.7/10.5	415 V 50 HZ.	900X500X950	125 kg
PE-TW8030S	200	33	1440	12.7/17	415 V 50 HZ.	1000X400X500	250 kg
PE-TW8036S	250	33	1440	155.3/20.5	415 V 50 HZ.	1000X400X500	250 kg
PE-TW4450S	350	18	1440	11.7/15.5	415 V 50 HZ.	1150X530X1050	175 kg
PE-TW5570S	500	22	1440	20.5/27.9	415 V 50 HZ.	1300X650X1260	300 kg
PE-500/30	500	30	1440	27.3/37	415 V 50 HZ.	1300X650X1260	300 kg

---

H.P. Water Jet Cleaning System Range 250 to 500 Bar PREMIUM HEAVY DUTY SERIES

Model	Pressure in bar	Flow Rate LPM	RPM	Powre KW/HP	Power Supply	L.W.H.	Weight
PE-LW3020S FLP	90	11	1440	2.2/3	415 V 50 HZ.	910X350X1025	100 kg
PE-LW3020S FLP	150	11	1440	3.1/4	415 V 50 HZ.	910X350X1025	100 kg
PE-ZW4030S FLP-5	150	15	1440	4/5.5	415 V 50 HZ.	950X350X1100	150 kg
PE-ZW4030S FLP	200	15	1440	5.5/7.5	415 V 50 HZ.	950X650X1600	150 kg
PE-FW24030S FLP	275	15	1440	8.2/11	415 V 50 HZ.	950X350X1100	150 kg

PREMIUM HEAVY DUTY SERIES

Model	Pressure in bar	Flow Rate LPM	RPM	Powre KW/HP	Power Supply
PE-RW5530S FLP	200	21	1440	7.7/10.5	415 V 50 HZ.

---

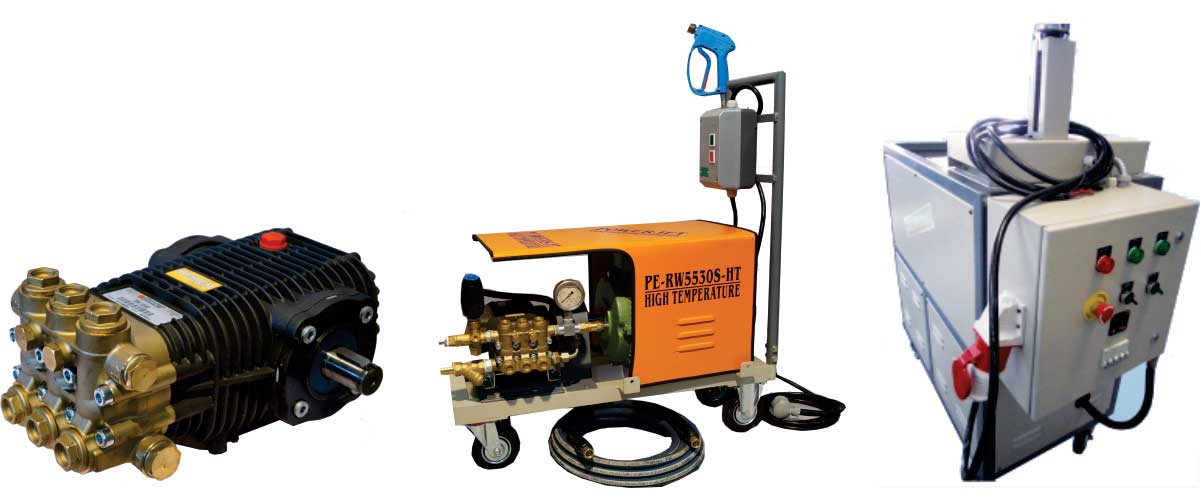

H.P. Water Jet Cleaning System Range 250 to 275 Bar MAX INLET TEMPERATURE 85° C HT SERIES

			Flow Rate		Pressure		Absorbed Power
RPM	Model	Version	Vmin	Psi	bar	psi	kw	HP	L.W.H.	Weight
1450	PE-RW4030-HT	S	15.6	4.1	207	3000	5.9	8.1	800X300X1100	135 kg
1450	PE-RW5530-HT	S	18.8	5.0	207	3000	7.2	9.8	950X350X1160	140 kg
1450	PE-RW5535-HT	S	20.1	5.3	241	3500	9.3	12.6	950X350X1160	150 kg
1450	PE-RW6030-HT	S	23.4	6.2	207	3000	8.9	12.1	1000X400X1150	150 kg
1450	PE-RW4040-HT	S	15.2	4.0	276	4000	8.2	11.0	950X350X1000	140 kg
1450	PE-RW5540-HT	S	20.8	5.5	276	4000	10.2	14.5	950X350X1150	165 kg

---

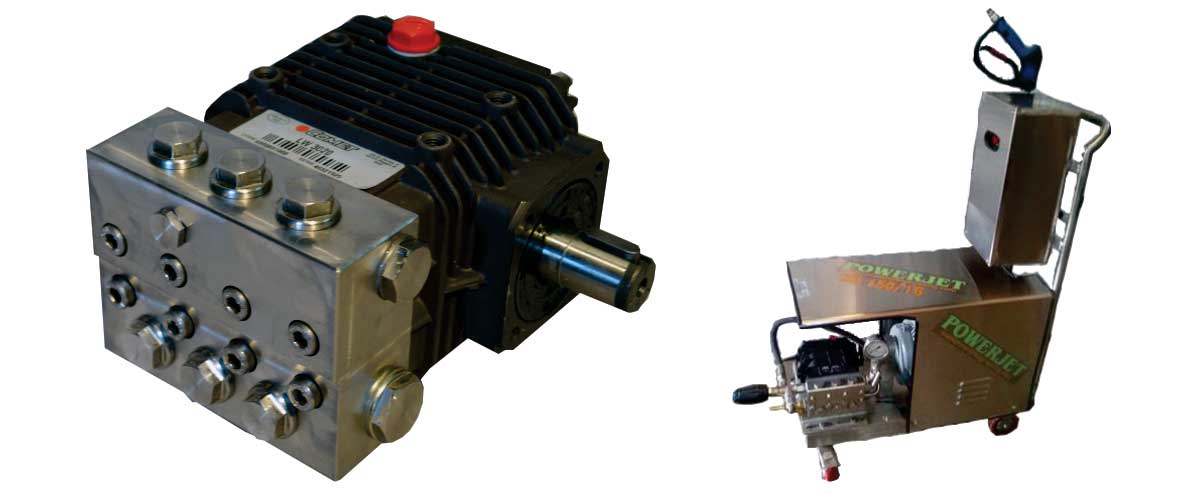

STAINLESS STEEL PUMP 316 PUMP SERIES

		Flow Rate		Pressure		Absorbed Power
RPM	Model	Vmin	Psi	bar	psi	kw	HP	L.W.H.	Weight
1450	PE-INOX 11/15 S	11.0	2.9	150	2175	4.2	3.1	600X250X400	35 kg
1450	PE-INOX 13/15 S	13.0	3.4	150	2175	5.0	3.7	800X350X1000	110 kg
1450	PE-INOX 16/20 S	16.0	4.2	200	2900	8.2	6.0	900X350X1100	115 kg
1450	PE-INOX 20/20 S	20.0	5.3	200	2900	10.3	7.5	900X350X1000	120 kg
1450	PE-INOX 27/20 S	27.0	7.1	200	2900	13.8	10.2	900X350X1000	150 kg
1450	PE-INOX 34/20 S	34.0	9.0	200	2900	17.4	12.8	1000X400X1100	155 kg
1450	PE-INOX 42/15 S	42.0	11.1	150	2175	16.1	11.9	1000X400X1100	155 kg
1450	PE-INOX 50/15 S	50.0	13.2	150	2175	19.2	14.1	1100X400X500	175 kg

---

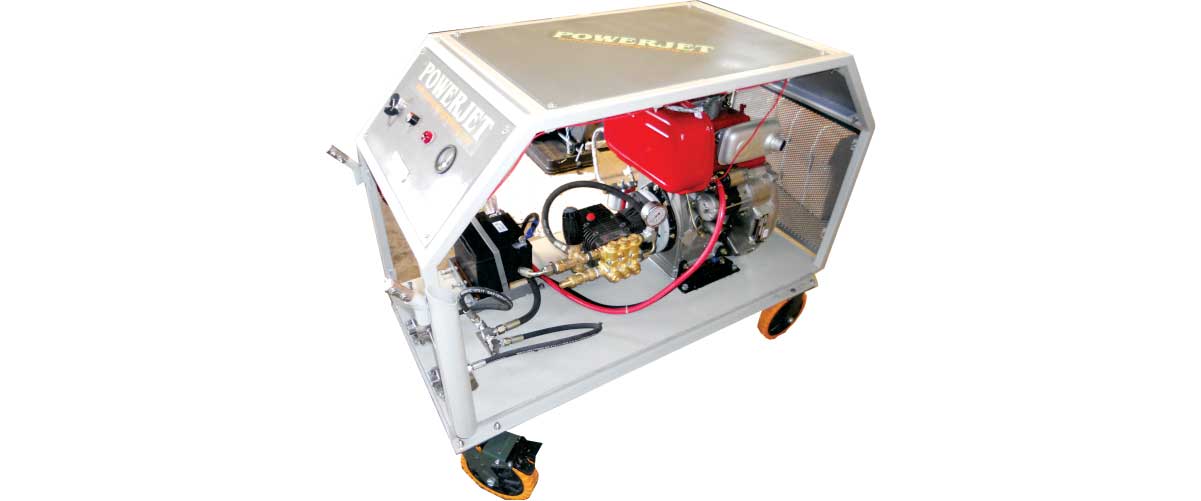

Engine Driven H.P. Water Jet Cleaner

Model	Flow Rate	Pressure	Prime Mover	Absorbed Power	RPM	L.W.H.	Weight
PE 200/150D	900 l/h	200 Bar	Diesel/Petrol/ Electric Start	7.5BHP	3400	112X40X60cm	145 kg
