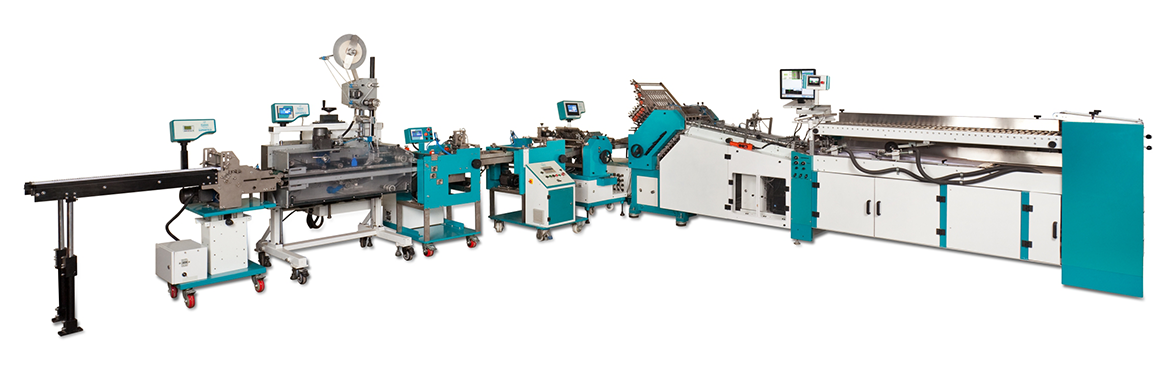

SUPERFOLD Outsert Systems

Features

---

Combination rollers

---

Counter and kicker in vertical stacker

---

High peed flat pile vacuuum feeder with back seperator

---

Electronic double sheet detector

---

Gap setting adjustment by calipers

---

SS folding pockect with position indicator

Technical Specifications

	PGV PF 1618	PGV BFC 415 / 615 THICK FOLD
Folding Trays	16 folding pockets + 15 deflectors	4 / 6 folding pockets + 3 / 5 deflectors
Max. Format	457 X 800 mm	300 X 457 mm
Min. Format	210 X 290 mm	35 X 210 mm
Min. Folding	25 mm	25 mm
Roller Speed	150 m /min	-----
Paper	40 GSM to 130 GSM	-----
Min. panel folding	-----	33 X 33mm
Max. fold thickness	-----	5mm
Power	400V, 3ph, 50hz, 3 KW	220V, 1ph, 50hz, 1 KW

---

TAPING UNIT

Product Width	35 mm to 200 mm
Product Length	30 mm to 60 mm
Product Thickness	1.5 mm to 8 mm
Product performance	8000 / hr
Power	220V, 1ph, 50hz, 2 KW
Air	Approx 6 bar

VARIABLE STACKER WITH ADJUSTABLE HEIGHT

Max. format	254 X 125 mm
Min. format	35 X 25 mm
Min. panel folding	33 X 33mm
Max. fold thickness	5mm
Power	220V, 1ph, 50hz, 0.5 KW
Air	Approx 6 bar
