WIRE CUT

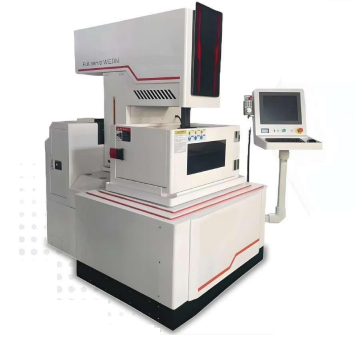

CNC Wire Cut EDM Machine
FOSTEX SERIES – HIGH PRECISION
Table / Specification
| Machine Model | Fostex Wire Cut Pro-Z |
| Table Size (L x W) | 800 × 500 mm |
| X-Axis Travel | 600 mm |
| Y-Axis Travel | 400 mm |
| Z-Axis Travel | 300 mm |
| Max. Workpiece Weight | 600 kg |
| Max Cutting Speed | ≥ 200 mm²/min |
| Best Surface Finish | Ra ≤ 0.5 μm |
Standard Accessories
- High Pressure Oil Tank System
- CNC Operation Panel & Control Unit
- Wire Guide System
- Auto Wire Threading Device
- Dielectric Fluid Chiller
- Programming Software
