ZR - 10 is a unique fine milled zirconium silicate having closely controlled particle size (minus 10 microns).
ZR - 10 is used in ceramic glazes as a glaze opacifier.
| Composition; | ZR - 10 ; | |
| Zirconium Silicate; | &ZrSiO4; | 97.00%; |
| Zirconia + Hafnia; | ZrO2; | 64.50% ; |
| Silica ; | SiO2 ; | 33.90% ; |
| Alumina ; | Al2O3 ; | 0.50% ; |
| Ferric Oxide ; | Fe2O3 ; | 0.09% ; |
| Titania ; | TiO2 ; | 0.15% ; |
| Specific Gravity ; | 4.6 ; | |
| Bulk Density ; | g.cm-3 ; | 0.8 ; |
| Average Particle Diameter; | Malvern d50(μm) ; | 1.75 ; |
» APPLICATONS
The principal use is a glaze opacifier. ZR - 10 is used in ceramic glazes, optical glass, heat resistance porcelain and zircon refractories. Use of ZR - 10 results in high opacity, craze resistance and colour stability for glazes used in tiles, sanitaryware and earthenware. ZR - 10 is finer and offers better opacity than ZR - 15. Ruby Ceramics unique manufacturing process ensures constant opacity, due to the delicate balance maintained between the fine particle size and superior chemical purity.
» Hygiene
Material Safety Data Sheet is available on request.
» Packing
The Standard packaging is 50 kg polythene lined multi-wall HPDE woven sacks. Special packing according to customer requirement can be arranged on request.

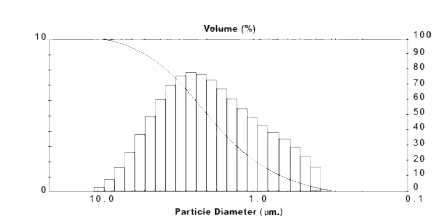

»PARTICLE SIZE DISTRIBUTION
