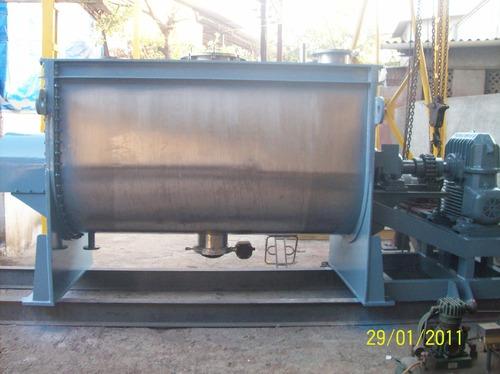

Ribbon Blender
Ribbon Blender that we offer is globally appreciated for its superior technology & acceptable price range. It is widely used for mixing dry powder, which is usually a free flowing solid substance. Our ribbon blender fabricated in well equipped infrastructure is definitely worth buying & a very profitable industrial investment.
| Particulars | Ribbon Blender |
| Vessel | Horizontal Cylindrical./U trough Stationery |
| Vessel support | Saddles |
| Charging | On cylindrical body, on top central/ side |
| Discharge | On cylindrical Body, on top central/ side |
| Rotary Part for Mixing | Central Horizontal Ribbon |
| Drive & Position | Motor coupled to worm/heli-worm reduction, then spur girth gear set/chain sprocket set |
| RPM range | 40-60 |
| Drive lifting | Not needed |
| Suitable for mixing | Free flowing solid-solid |
| Liquid Spraying | Possible by providing a spray bar inserted through side |
| Homogenizer | Not possible |
| Chopper/ Lump breaker | Not possible |
| Jacketing | Possible |
| Vacuum | Possible |
| Vac. Sealing | St.box/M.seal |
| Air filter | Air vent on top cover/cyl body |
| Manhole | On top cover or body |
| Mixing time | 25-30 minutes |
| Drying time For 20% Vapour content | Not used for drying, but for heating/cooling |
| Baffling | Flats between flights |
| Mixing method | Conveying through ribbon flights horizontally |
| Precision of Mixing | Two dimensional, reasonable |
| Suitable for Product | Dry powder, heating of cake |
| HP rating | 60-65 % efficiency |
| Space occupancy | Occupies a lot of horizontal space |
| Safety factor | Rotor is totally enclosed, no lifting of drive, hence safe. |
