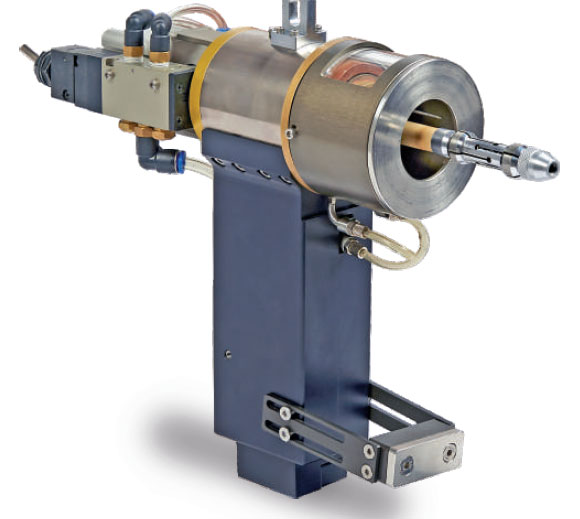

Tube To Tube-Sheet Orbital Weld Head TTS-37
Features

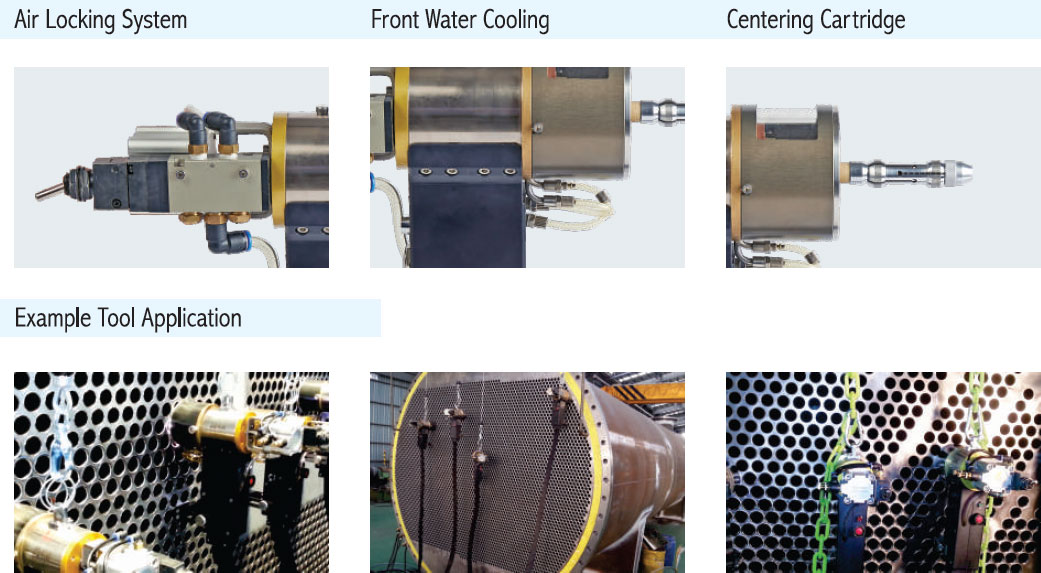

- TTS 37 welding head for condenser welding.
- Light weight and easy to use.
- Especially, it is designed for welding of stainless, duplex and inconel.
- An operator can install maximum 4 welding heads at a time while operating.
- High quality level, oxidation free welds
| Technical Specification | ||
| Tube diameter | I.D. 14.0-37.0mm (0.55-1.45") | |
| Welding current | Max 125A | |
| Welding process | Proturding (max 0.5mm), flush, recessed welding type | |
| Support on Tube-sheet | Expanding centering cartridge | |
| Torch cooling | Water cooled |
| Welding position | Horizontal, Vertical |
| Welding procedure | TIG without filler wire |
| Electrode size | 1.6 mm / 2.4 mm |
| Weight | 3 kg |
