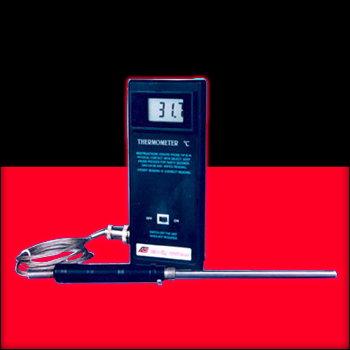

Portable Digital Thermometer

Standard Specifications

Type.: Digital
Display : Liquid Crystal Displays
Size of Display : ½”
Digits : Seven segment, 3 ½ Digits
Power Control : ON / OFF slide switch
Power : 9 Volt Battery
Cabinet : Non – rusting type, light weight
Dimensions : 130 mm x 85 mm x 30 mm
Dial : Instructions inscribed on the Aluminium anodized dial
Colour : Two tone Red & Black
Weight : 250 grams
Leather Case : Provided optionally
Sensors, T/C or RTD : Stainless Steel sheathed, of length 300 mm of dia 6 mm Standard, Rod Type provided with bakelite balanced handle with 1 meter flexible extensions lead wires

Model PDT-002 PDT-006 PDT-015 RTD-506
Sensor Type ‘K’ Type ‘K’ Type ‘K’ PT-100, DIN
Range 0° to 200°C 0° to 600°C 0° to 1500°C -50° to +600°C
Resolution 0.1°C 0.1°C 0.1°C 0.1°C
Accuracy ± 0.5% ± 1 digit ± 0.5% ± 1 digit ± 0.75% ± 1 digit ± 0.5% ± 1 digit

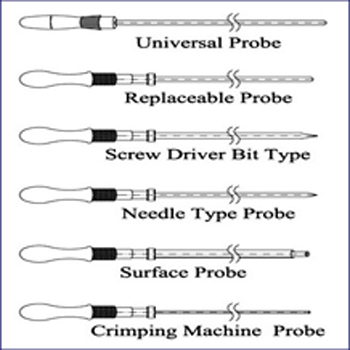

Various Probes Are Available To Suit Specific Applications Given Below
