Industrial Magnets
Industrial Magnets
Our clients can avail from us a wide array of Industrial Magnets that are appreciated for their excellent resistance to demagnetization. These are widely used across the automobile industry in various components owing to their holding, retrieving, moving and lifting properties.
Bonded Neodymium-Iron-Boron Magnet
Our range of rare earth bonded magnets, Bonded Neodymium-Iron-Boron Magnet, Bonded Rare Earth Magnet, Bonded Ndfeb Magnet, Bonded Neodymium magnets, bonded Neodymium-Iron-Boron Magnet, Plastic-bonded NdFeB magnets, NdFeB bonded compressed magnets has superior cracking and chipping resistance in comparison to the compression molded magnets. These have high mechanical strength and are comparatively less fragile than the sintered magnets.
| Dimensions | 6 O.D.x3 I.D. mm |
| Thickness | 5 mm |
| Shape | Ring |
| Material | Neodymium |
| Magnet Grade | N48 |
| Applications | Generators / Motors / Servo Motors |
| Dimensional Tolerance | +-0.1 mm |
| Plating / Coating | Ni-Cu-Ni |
| Colour | White |
| Maximum Working Temperature | 100 Deg. C |
| Magnetization Direction | Arcs |
| Country Of Origin | Made In India |
Applications:
- Sensors
- Motors
- Torque Couplings
- Meter movements
- Xerographic Applications
- Educational & Scientific Instruments
- Magnetic Seals, Latches, Chip Collectors

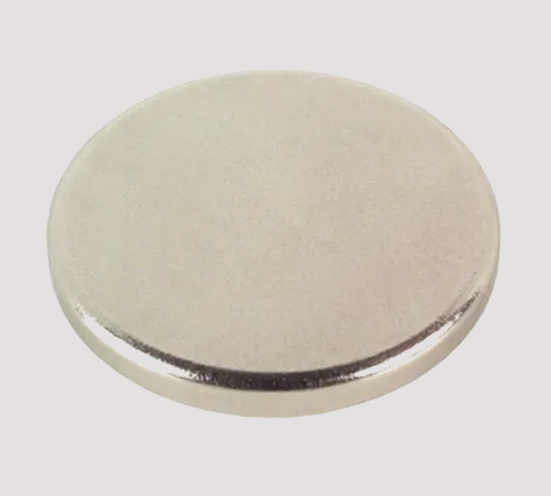

Alnico Disc Magnet
| Dimensions (LxW or Dia) (mm) | 20 mm Dia |
| Thickness (mm) | 5 mm |
| Shape | Disc |
| Magnet Grade | Alnico 3 |
| Material | Alnico |
| Dimensional Tolerance | +-0.1 mm |
| Plating / Coating | Ni-Cu-Ni |
| Colour | Silver |
| Strength (Vertical Pull) (kg) | 0 - 0.5kg |
