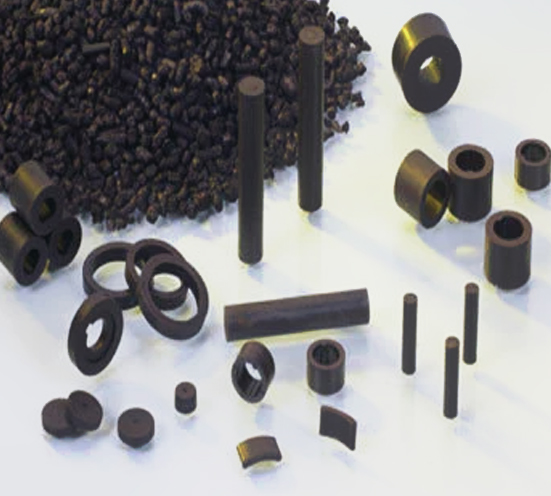

Injection Bonded Hybrid Magnets
Injection Bonded Hybrid Magnets
We are one of the leading manufactures of Injection Bonded Hybrid Magnet that have isotropic / anisotropic properties. These are available in various grades, shapes and sizes. The magnets are fabricated using superior quality raw material and are appreciated for its high tensile strength and durability. We also offer customization facility on the magnets as per the specifications of the clients.
Injection Bonded Hybrid Ferrite Magnets
| Condition | new |
| Color | Metallic |
| Material | Magnet |
| Is It ISO Certified | ISO Certified |
We manufacture and supply a wide gamut of Injection Bonded Hybrid Magnets that is in-line with the industry standards. Further, the proper selection of the isotropic / anisotropic ferrite sintered magnets makes them applicable in many areas.
Specialties:
- Isotropic / Anisotropic Hybrid Magnets can cover a very large range of magnetic properties. Injection Molded Magnetic properties can be tailor made over a very broad spectrum
- Sintered Ferrite Magnets can be replaced in a lot of applications by proper selection of magnetic material
- It is a very promising material for the future due to advantages of higher magnetic properties than Ferrite Magnets and lower costs than the Rare Earth Magnets
| Grade Name | Br (Gauss) | Hc (Oersted) | iHc (Oersted) | Bhmax (MGOe) | |
| H090 | Isotropic | 2200 | 1400 | 2200 | 0.90 |
| H110 | Isotropic | 2600 | 1500 | 2700 | 1.10 |
| H125 | Isotropic | 2800 | 1500 | 2400 | 1.25 |
| H150 | Isotropic | 3400 | 1600 | 2500 | 1.50 |
| H180 | Anisotropic | 3320 | 1950 | 2850 | 1.80 |
| H220 | Anisotropic | 3260 | 2300 | 4100 | 2.20 |
| H300 | Anisotropic | 3800 | 3100 | 8500 | 3.00 |
| H350 | Anisotropic | 4400 | 2450 | 3500 | 3.50 |
