HMI
When Simple Operator Panels will Suffice
Design operator panels for the simple and direct operation of machines with ready-to-install and pre-assembled SIMATIC HMI Key Panels.
This results in time savings of up to 60% compared to conventional wiring.
Also available as fail-safe version.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
For low-cost operator control and monitoring of simple applications
Compact or simple applications are no reason for doing without the advantages of a full Graphics operator panel. SIMATIC HMI Basic Panels offer basic HMI functionality at an attractive price. The series indudes devices with displays sizes of 3" to 15", For operator control, you can select either a touch screen or keys, or use a combination of the two.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
For Demanding HMI Task
Complex processes place high demands on the functionality of operator panels - integrated
diagnostic functions and option s for efficient energy management are examples of this.
SIMATlC HMI Comfort Panels provide you with this and much more due to integrated high-end functionality for all display sizes (4" to 22"). Brilliant widescreen displays permit up to 40% more visualization area and thus expanded display capabilities for complex operating screens.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
When Mobility Matters
Whether during commissioning. maintenance, or production: With mobile operator panels, you always have visual contact with the process and, at the same time, access to the relevant process information on your panel. Whether wired or for wireless, fail-safe operation via IWLAN - SiMATIC HMI Mobi.le Panels give you the mobility that you need for operating and monitoring your plant.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
When a Process is to be Visualized at Several Locations
In extensive machines and plants, SIMATIC Thin Clients can be used as distributed, cost-effective operating terminals. They allow plant-wide access to current process values and local screens of aIJ participating stations and communicate via PROFINET/Ethernet. Thus, the functionality of machine-level panels also becomes available in the control room or office, or they can bring IMATIC WinCC, office or IT functionality directly to the machine on site.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
When Special Requirment Must Be Met
Fully enclosed HMI devices with IP65 degree of protection are specifically designed to be mounted to a support arm or stand. Thanks to their extremely rugged design, the devices are ideal for industrial applications even in extremely harsh industrial environments.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

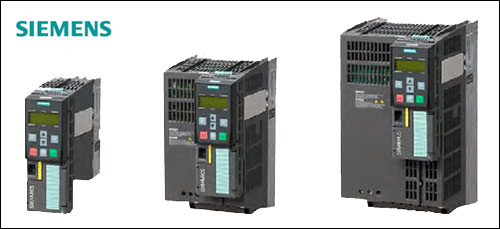

SINAMICS G120
SINAMICS G120 Standerd Inverters
0.37 kW to 250 kW (0.5 hp to 400 hp)
SINAMICS G120 inverter is designed to provide precise and cost-effective speed/torque control of three-phase motors.
with different divice versions (frame sizes FSA to FSGX) in an output range of 0.37 kW to 250kW (0.5 hp to 400 hp), it is suitable for a wide variety of drive solutions.
SINAMICS G120
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
