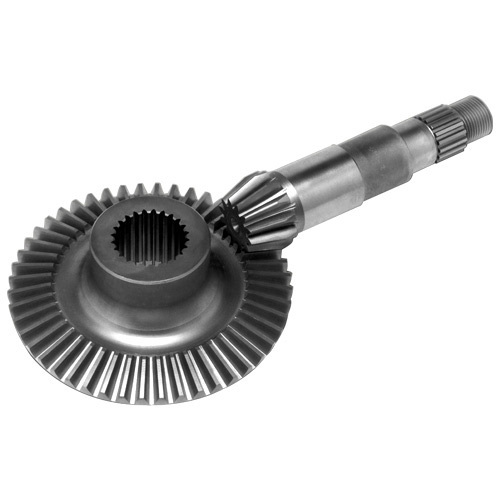

Straight Bevel Gear
We hold the expertise in manufacturing high-grade StraightBevel Gear. Fabricated by using highest grade raw materials, these straight tooth geometrical gears are highly acknowledged across the globe for its durability, toughness and high tensile strength.
| Maximum Pitch Diameter | 28 |
| Diametric Pitch | 2.5, 48 |
| Face Width | 6 mm |
| Material | Cast Iron |
| Module | 30 |

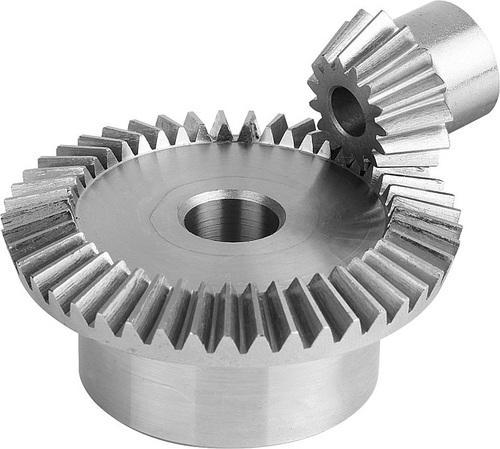

Zerol Bevel Gear
Zerol Bevel Gear is similar to a bevel gear except the teeth are curved. In essence, Zero Bevel Gears are Spiral Bevel Gears with a spiral angle of zero.
| Material | Stainless Steel, Cast Iron |
| Tolerance | 0.05 mm |
| Heat Treatment | Carburizing |
| Process | Hobbing |
| Pressure Angle | 45 Degrees |

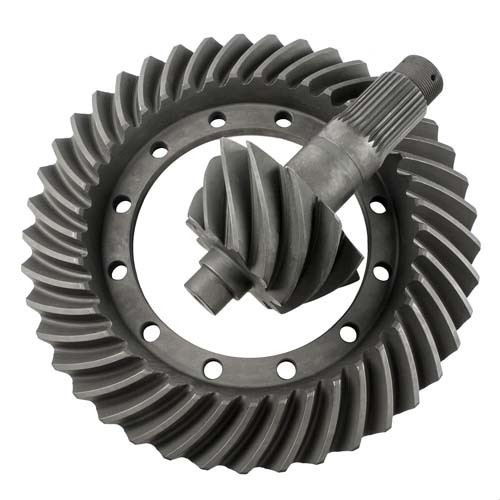

Spiral Bevel Gears
In Spiral Bevel Gears, the teeth are curved at an angle allowing contact to be gradual and smooth.
| Material | Cast Iron, Cast Steel, 20CrMnTi |
| Modules | 1 - 25 |
| No of Teeth | 7 - 140 |
| Surface Treatment | Galvanised |
| Outside Diameter | 100 - 5000 mm |

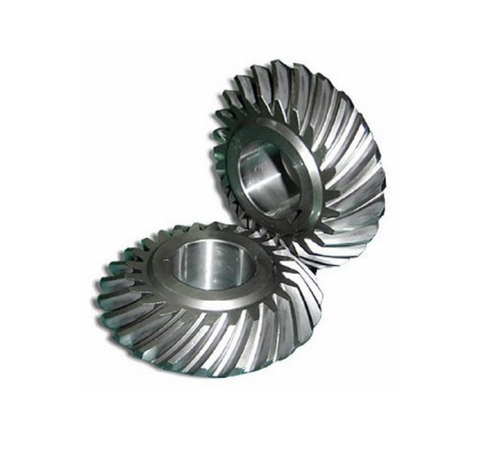

Hypoid Bevel Gears
Hypoid Bevel Gears are similar to spiral bevel except that the pitch surfaces are hyperboloids rather than cones. Pinion can be offset above or below gear centre, thus allowing larger pinion diameter, and longer life and smoother mesh, with additional ratios e.g., 6:1, 8:1, 10:1.
| Tolerance | 0.001 mm |
| Outside Diameter | 43.2 mm |
| Material | Stainless steel |
| Pressure Angle | 20 - 35 Degree |
| Heat Treatment | Carburized |

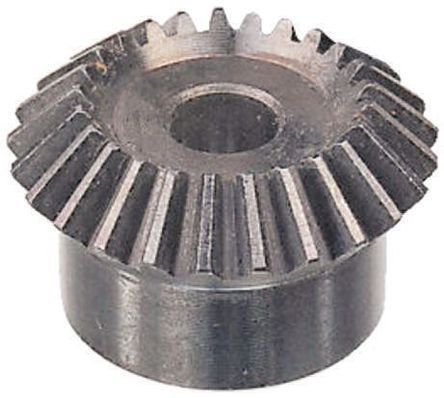

Bevel Gear
We make quality Bevel Gear, which are known for their precise functionally. There gears are widely appreciated for their, Compact design, corrosion resistance, Precise Dimensions, High performance and Durability. They are widely used by Automobile industry.
| Type | Straight |
| Size/OD | 12 - 400 mm |
| Module | 0.5 - 8 Module |
| Pitch Diameter | 3, 28 |
| Material | Cast Iron, Cast Steel,20 Mn Cr5 |

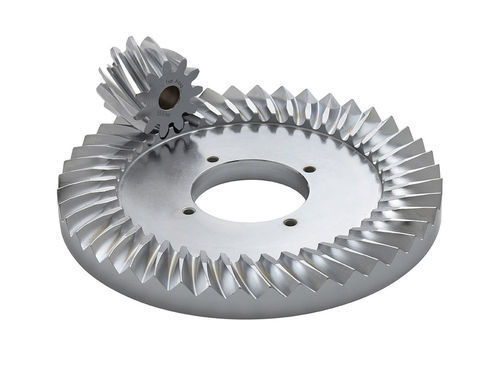

Crown Gears
We are engaged in offering Crown Gears that are used as auto parts.
| Tolerance | 0.005 mm |
| Material | Carbon Steel |
| Pressure Angle | 45 Degree |
| Outer Diameter | 292 mm |
| Surface Treatment | Anodize, Plating, Brushing |
