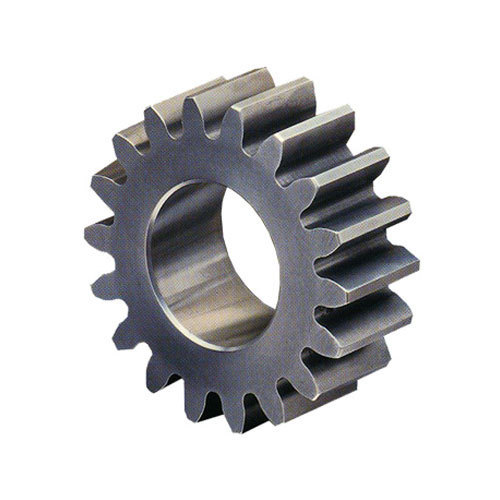

Spur Gear

Spur Gear

We offer a wide range of Spur Gears. These supreme quality gears are fabricated using the best quality raw materials. The most advanced technology is used to produce these straight-toothed gears in a variety of shapes and sizes. Used to change the speed of the rotation from one shaft to another, these gears are highly durable and long lasting. Extensively used in various engineering related industries, these gears are available in numerous forms.
Diameter 1/2 - 40 inch
Face Length Up to 40 inch
No of Teeth 12 - 127
Material Cast iron, Stainless Steel
Module 1 to 6

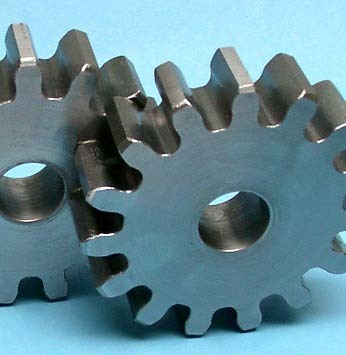

External Spur Gears

External Spur Gears are the most popular and common type of spur gear. They have their teeth cut on the outside surface of mating cylindrical wheels. While the larger wheel is referred to as the gear and the smaller wheel is known as the pinion. Single reduction stage is the most basic type of arrangement of a single pair of spur gears. Here the output rotation is in opposite direction to that of the input. In other arrangements of multiple stages, the higher net reduction can be achieved where the driven gear is connected rigidly to a third gear. This third gear, in turn, drives a mating fourth gear. This serves as the ideal output for the second stage. In this way, many output speeds on different shafts are produced starting from a just single input rotation.
Module 0.25 - 12
Length Up to 6
Material Aluminium, Cast Iron
Size 1/2 - 48 inch
Diameter Pitch 96 - 2

Internal Spur Gears

Internal Spur Gears are not much different from a regular spur gear. These gear by appearance shows pitch surface that is cylindrical. Here the tooth is parallel to the axis. In the case of Internal Spur Gears, the gears are positioned to make internal contact. It is also referred to popularly as Ring gears. The output rotation produced by the Ring gears is direction wise same as that of input rotation.
Material Cast Iron, Carbon Steel
Tolerance 0.02 mm
Heating Treatment Carburising
Type Spur
